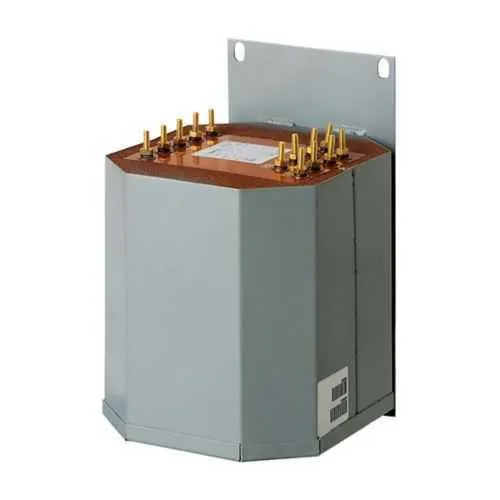

Eaton C0003P7HSCUES Control Transformer - UL Recognized
Part Number: C0003P7HSCUES
Quick Summary
The Eaton Type AP industrial control transformer is designed to supply reliable low-voltage control power for panels and machinery in modern manufacturing lines. In new builds, mismatched taps and insufficient isolation can slow commissioning, increase wiring complexity, and invite premature failures under fluctuating line conditions. UL Recognized safety certification, RoHS compliance for environmental standards, and resin-encapsulated construction with an 180°C insulation system help ensure reliability in harsh industrial environments. Built for power management and distribution in automation projects, it delivers up to 3000 VA with copper windings and a robust frame, simplifying installation, serviceability, and compliance with safety standards.
Product Information
Extended Description
C0003P7HSCUES Eaton: Eaton Type AP industrial control transformer, pv: 240 x 480v, taps: 1 at +5% fcan, 1 at -5% fcbn x 2 at +2.5% fcan, 2 at -2.5% fcbn, sv: 120/240v, 115°c, 3000 va, cu magnet wire, elec. shield, frame: 292
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0003P7HSCUES
UPC
786680080258
Product Length/Depth
9.567 in
Product Height
9.764 in
Product Width
8.819 in
Product Weight
99 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
292
Tap size
1 at +5% FCAN, 1 at -5% FCBN X 2 at +2.5% FCAN, 2 at -2.5% FCBN
Wiring connection
400A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
3000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Feature: Tap-adjustable primary with multiple taps (+5%, -5%, +2.5%, -2.5%) and a 120/240 V secondary.Business Impact: Maintains stable output despite input variations, reducing nuisance trips and extending equipment life.Application: Suitable for multi-volt control panels in automated lines. Feature: 3000 VA rating with copper windings. Business Impact: Supports high-load control circuits with improved efficiency and durable performance.Application: Panel power feeds for machinery and conveyor systems. Feature: Resin-encapsulated design with 60 Hz operation and 180°C insulation. Business Impact: Superior moisture resistance and thermal resilience in harsh environments, lowering maintenance costs.Application: Use in damp factory floors or outdoor-rated installations. Feature: Side/wall mounting and a 400A wiring connection. Business Impact: Easier installation and flexible mounting options, reducing labor time and enclosure footprint.Application: Integrated into compact control panels with limited vertical space. Feature: Frame 292 and UL Recognized, RoHS Compliant. Business Impact: Mechanical robustness and regulatory compliance streamline procurement and installer acceptance.Application: Fits standard enclosures while meeting modern sustainability standards. Feature: 240 x 480 V primary, 120/240 V secondary. Business Impact: Enables a single device to service multiple control circuits, reducing inventory.Application: Automation loops requiring versatile voltage routing in panel assemblies.
Get a Quick Quote for a Eaton C0003P7HSCUES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0003P7HSCUES?
Enquire Now
FAQs
For panel installations, ensure side or wall mounting compatibility with frame 292 and use the screw-type terminal board. The transformer supports a 400A wiring connection and includes multiple primary taps to accommodate voltage fluctuations. Verify enclosure space and heat dissipation to maintain the 115°C temperature rating in continuous operation.
Key specs include 240 x 480 V primary, 120/240 V secondary, and a 3000 VA rating with copper windings. The taps (+5%, -5%, +2.5%, -2.5%) help maintain output under supply variance. With 60 Hz operation and a 115°C rating, the device delivers reliable performance in standard industrial environments.
Yes. The C0003P7HSCUES is designed for power management and distribution in automation projects, providing robust control power for panel-mounted circuits. Its resin-encapsulated construction and UL Recognized status enhance reliability in manufacturing environments, while the RoHS compliance supports modern sustainability and regulatory requirements.
This transformer is UL Recognized for safety and RoHS Compliant for environmental compliance. The resin encapsulation with an 180°C insulation system and 60 Hz operation further supports reliability in industrial settings, helping simplify QA and regulatory alignment during procurement.
Maintenance is typically low due to rugged encapsulation and copper windings, with a one-year warranty from installation or eighteen months from shipment. The high 3000 VA rating reduces the need for multiple transformers in high-load panels, delivering cost savings and predictable uptime in automated lines.
