Eaton C0005P8TSES Control Transformer - UL Recognized
Part Number: C0005P8TSES
Quick Summary
Eaton C0005P8TSES industrial control transformer provides reliable control power for 600 V systems in industrial equipment. Many buyers struggle when selecting a transformer that meets 60 Hz loads, voltage regulation, and safety requirements, leading to downtime and costly rewinds. UL Recognized and RoHS Compliant certifications, plus catalog notes for 60 Hz operation ensure regulatory alignment and safer installations. The unit's AP design with electrostatic shield and open frame supports robust control applications, while side-wall mounting and a 5 kVA rating offer flexibility for panel layouts and machine controls. This translates to faster commissioning, reduced maintenance, and predictable performance in demanding environments.
Product Information
Extended Description

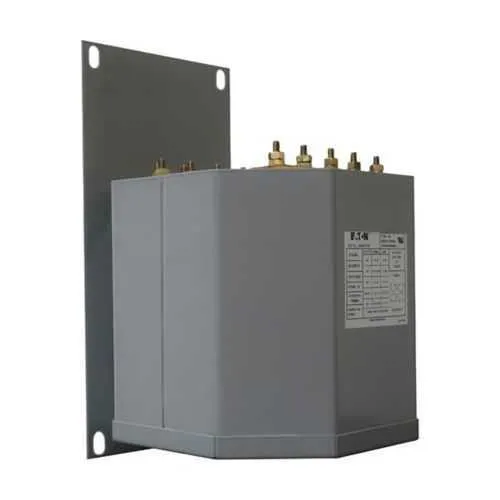

C0005P8TSES Eaton: Eaton Type AP industrial control transformer, control transformer, AP, 600v, 2@+2.5%, 2@-2.5%, 12/0240v, 115, 5 kva, electrostatic shield, frame 256, wiring diagram 405d, side/wall mount, 60 hz, open
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0005P8TSES
UPC
786680018473
Product Length/Depth
8.701 in
Product Height
12 in
Product Width
11 in
Product Weight
85 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
60 Hz
Design
AP
Enclosure
Open
Frame
256
Mounting method
Side wall
Tap size
2@+2.5%, 2@-2.5%
Frequency rating
60 Hz
Primary voltage
600 V
Temperature rating
115°C
Volt ampere rating
5000 VA
Secondary voltage
120/240 V
Feature: 5 kVA rating with 600 V primary and 120/240 V secondary. Business Impact: Supports multiple control circuits from a single unit, reducing panel space, wiring complexity, and spare parts while improving startup reliability. Application: Ideal for control panels and machine controls in manufacturing lines. Feature: Tap changes ±2.5% (two positive and two negative taps). Business Impact: Maintains output within tight tolerance during load or supply fluctuations. Application: Useful in long feeders or facilities with variable incoming voltage. Feature: 60 Hz rated with frame 256, side-wall mounting, and RoHS compliant; UL Recognized. Business Impact: Easy integration into standard 60 Hz environments; safety and regulatory compliance reduce project risk. Application: Plants, packaging lines, and automation racks requiring reliable power and compliant components. Feature: Electrostatic shield reduces EMI between primary and secondary windings. Business Impact: Improves accuracy of sensors and reduces interference in PLCs and servo drives. Application: Robotics, CNC machines, and high-speed automation systems. Feature: Open enclosure and side-wall mounting provide accessible wiring and straightforward installation. Business Impact: Shortens start-up times and minimizes commissioning costs. Application: Control panels in retrofits or new builds with limited enclosure depth.
Get a Quick Quote for a Eaton C0005P8TSES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0005P8TSES?
Enquire Now
FAQs
Yes. The C0005P8TSES is designed for 60 Hz operation with an open enclosure and side-wall mounting, simplifying installation in standard control cabinets and on-wall panels. Its 5 kVA rating supports multiple circuits, while the 600 V primary and 120/240 V secondary align with common plant distributions. Ensure mounting surface is solid and within the frame 256 footprint for best service access.
The transformer includes tap changes at ±2.5% (two taps positive, two taps negative) to help compensate for line voltage drift and ensure stable secondary output. This capability reduces voltage sensitivity of downstream loads and improves load regulation, which is especially valuable for PLCs, relays, and motor controls fed from long feeders.
Common applications include control panels, machine controls, automation racks, and process equipment in manufacturing, packaging, and material handling. Its 600 V to 120/240 V conversion and 5 kVA rating make it suitable for powering control circuits, sensing equipment, and small drives within a single, compact footprint.
This model is UL Recognized and RoHS Compliant, meeting essential safety and environmental requirements for industrial installations. Catalog notes indicate 60 Hz operation, ensuring compatibility with standard U.S. and many international industrial power systems while supporting compliant procurement and integration.
Warranty follows Eaton policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. For maintenance and technical assistance, contact Eaton technical support or your distributor to obtain replacement parts, schematics, and field service guidance to maximize uptime and return on investment.
