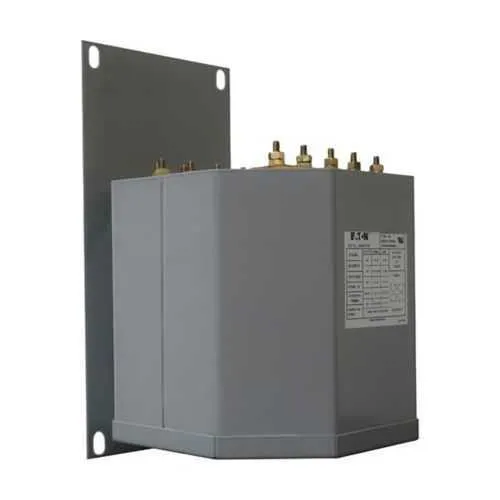

Eaton C0005P9SSES Control Transformer - UL Recognized
Part Number: C0005P9SSES
Quick Summary
Eaton Type AP industrial control transformer powers control circuits in industrial panels with reliable isolation and voltage conversion. Maintenance teams often wrestle with winding failures and difficult mounting in crowded panels; this unit’s aluminum windings and side-wall open frame simplify serviceability. UL Recognized and RoHS compliant certifications ensure regulatory alignment, while the transformer’s 5 kVA rating and 416 V primary support demanding automation tasks. Designed for reliability and easy installation, it helps protect uptime and reduce lifecycle costs in power distribution and control applications.
Product Information
Extended Description
C0005P9SSES Eaton: Eaton Type AP industrial control transformer, control transformer, AP, 416v, 120/240v, 115, 5 kva, aluminum windings, electrostatic shield, 3.0 ohms, frame 256, wiring diagram 405l, side wall mount, 50/60 hz, open
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0005P9SSES
UPC
786680118036
Product Length/Depth
10.748 in
Product Height
12 in
Product Width
10.827 in
Product Weight
128 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Design
AP
Enclosure
Open
Frame
256
Mounting method
Side wall
Coil
Aluminum windings
Frequency rating
50-60 Hz
Primary voltage
416 V
Temperature rating
115°C
Volt ampere rating
5000 VA
Secondary voltage
120/240 V
Feature: 416 V primary and 120/240 V secondary windings. Business impact: Enables reliable, isolated control power from main distribution with minimal voltage drop, supporting PLC inputs and solenoids with consistent performance. Application: Automation panels and machine control cabinets demanding stable control voltages. Feature: 5 kVA VA rating. Business impact: Supports multiple control loads simultaneously, reducing the number of transformers required and lowering total installed cost. Application: Panel power distribution where multiple control circuits operate from a single source. Feature: Aluminum windings and electrostatic shield. Business impact: Reduces weight and improves corrosion resistance, while the shield enhances EMI/EMC safety in noisy industrial environments. Application: Harsh factory floors and equipment enclosures. Feature: Open enclosure with side-wall mounting. Business impact: Simplifies wiring accessibility and installation in tight spaces, enabling faster commissioning and easier field service. Application: Control panels with limited interior depth or crowded wiring ducts. Feature: 50/60 Hz compatibility and frame 256. Business impact: Suits regional power grids and standard control panel geometries, ensuring plug-and-play replacement and consistent mechanical fit. Application: US and international automation installations needing cross-region compatibility. Feature: Wiring diagram 405L and UL RoHS compliance. Business impact: Provides clear installation guidance and regulatory assurance, reducing commissioning errors and non-compliance risk. Application: New builds and retrofits in safety-critical control networks.
Get a Quick Quote for a Eaton C0005P9SSES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0005P9SSES?
Enquire Now
FAQs
The C0005P9SSES uses side-wall mounting with an open enclosure, designed for installation in compact control panels. Its frame 256 provides stability in vibration‑prone environments, while the open enclosure facilitates wiring access and quick field servicing. With dimensions near 12 in tall, 10.8 in wide, and 10.75 in deep and a 128 lb weight, it fits tight spaces without compromising robustness.
The transformer features a 416 V primary and a 120/240 V secondary, rated at 5,000 VA (5 kVA). It operates at 50/60 Hz and uses aluminum windings with an electrostatic shield. This combination supports multiple control loads from a single source in automation panels, delivering consistent performance for PLCs, relays, and solenoids.
Yes. The C0005P9SSES is specified for 50/60 Hz operation and a 5 kVA rating, making it compatible with common US and international panel standards. Its side-wall mounting and open enclosure simplify installation in standard control cabinets, while RoHS compliance and UL recognition help ensure regulatory compatibility and ease of sourcing for industrial projects.
The C0005P9SSES carries UL Recognized certification and RoHS compliance. UL Recognized confirms safety and compatibility with component-level certification programs, while RoHS ensures restrictions on hazardous substances are met. These certifications support safer installations and regulatory compliance across diverse markets, enabling smoother supplier qualification for mid- to large-scale automation projects.
Warranty is Eaton’s policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This coverage addresses manufacturing defects and material failures under normal use. For claim eligibility, ensure proper installation and maintain installation records, and coordinate with Eaton’s customer service. Extended warranty or service options may be available through authorized distributors for project-specific needs.
