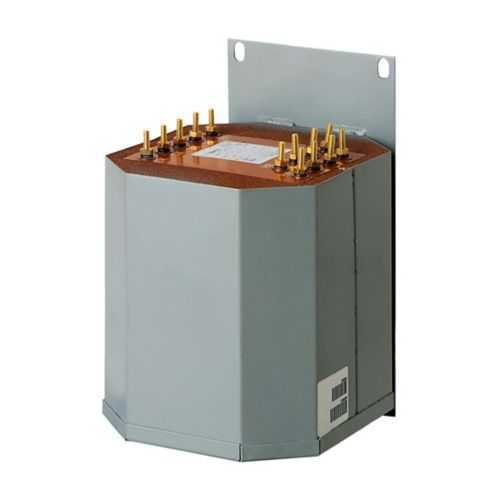

Eaton C0007P7GS AP Transformer - UL Recognized
Part Number: C0007P7GS
Quick Summary
The Eaton C0007P7GS AP Transformer provides reliable control power for industrial panels. Operators often wrestle with voltage fluctuations, space constraints, and the need to power multiple control circuits from a single source. With UL Recognized certification and resin-encapsulated construction rated for 60 Hz, it blends safety, durability, and predictable performance in demanding environments. The unit delivers 7000 VA with a 240/480 V primary and a 120/240 V secondary, simplifying wiring and reducing panel complexity. Side/wall mounting and a rugged copper-windings design support quick installation and long-term reliability, helping minimize downtime and maintenance costs. In short, it’s a practical, compliant backbone for modern automation control systems.
Product Information
Extended Description
C0007P7GS Eaton: Eaton Type AP industrial control transformer, pv: 240 x 480v, taps: none, sv: 120/240v, 115°c, 7000 va, cu magnet wire, frame: 257
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0007P7GS
UPC
786680183225
Product Length/Depth
10.748 in
Product Height
11.614 in
Product Width
10.827 in
Product Weight
124 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
257
Tap size
None
Wiring connection
416A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
7000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Feature — Copper windings with resin encapsulation provide durable, heat-resistant construction for demanding panel applications. Business impact — This design reduces insulation degradation, lowers maintenance cycles, and extends transformer life in high‑vibration environments. Application — Ideal for rugged automation cabinets powering 120/240 V control circuits from a 240/480 V primary in manufacturing lines. Feature — Dual primary 240/480 V and secondary 120/240 V simplify wiring schemes and reduce inventory. Business impact — Fewer wiring errors, faster commissioning, and lower stocking costs translate into shorter project lead times. Application — Suited for multi‑circuit control in general industrial panels and process automation setups. Feature — 7000 VA rating supports multiple control circuits from a single device. Business impact — Decreases cabinet footprint and external wiring, lowering total installed cost and improving serviceability. Application — Powers relays, PLC I/O, and motor drives in mid‑size automation applications. Feature — 60 Hz operation and 180°C insulation system ensure stable performance across typical industrial environments. Business impact — Maintains voltage integrity and safety margins, supporting compliance with common control-system designs. Application — Reliable panel power for conveyors, presses, and machine tools where uptime matters. Feature — Side/wall mounting and screw-type terminal board enable flexible installation and straightforward future rewiring. Business impact — Reduces field labor and downtime during upgrades while simplifying maintenance. Application — Retrofit-ready in existing racks or wall-mounted enclosures with minimal disruption.
Get a Quick Quote for a Eaton C0007P7GS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0007P7GS?
Enquire Now
FAQs
Install with side or wall mounting and use the screw-type terminal board for straightforward wiring. Ensure cabinet clearance for heat dissipation and vibrations common in manufacturing environments. Follow UL guidelines to maintain certification status and ensure safe, reliable operation.
Primary voltage is 240/480 V with a secondary of 120/240 V, rated at 7000 VA. It operates at 60 Hz and uses copper windings in a resin-encapsulated construction, with a 115°C ambient rating and a 180°C insulation system for robust performance.
Yes. Its 7000 VA rating supports multiple control circuits, and the dual-voltage inputs simplify panel design. The UL Recognized certification and rugged construction make it a dependable power source for relays, PLC I/O, and other automation components.
The product is UL Recognized, indicating safety and compatibility with a broad range of industrial controls. This certification helps ensure compliance with electrical standards and streamlines integration into regulated manufacturing environments.
Resin encapsulation, copper windings, and a high-temperature insulation system reduce moisture ingress and insulation degradation. Side/wall mounting and a robust frame support quick serviceability, lowering downtime and extending service life in demanding industrial settings.
