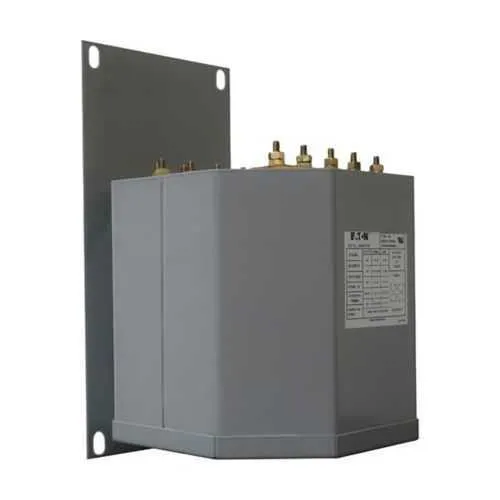

Eaton C0007P8TSES AP transformer - UL Recognized
Part Number: C0007P8TSES
Quick Summary
Eaton C0007P8TSES industrial control transformer delivers reliable control power for 120/240 V circuits in industrial equipment. Design teams often battle enclosure fitment and mounting constraints when integrating control power in compact control panels. UL Recognized certification, RoHS compliance, and a 60 Hz catalog note support safe operation and regulatory alignment. With a rugged frame 257 and side-wall mounting, installation is streamlined, while the open enclosure accommodates accessible wiring and service. Its 7.5 kVA rating and 600 V primary deliver scalable, reliable power for automation sequences, reducing wiring complexity and lifecycle costs.
Product Information
Extended Description
C0007P8TSES Eaton: Eaton Type AP industrial control transformer, control transformer, AP, 600v, 2@+2.5%, 2@-2.5%, 120/240v, 115, 7.5 kva, electrostatic shield, frame 257, wiring diagram 405d, side/wall mount, 60 hz, open
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0007P8TSES
UPC
786680018497
Product Length/Depth
11 in
Product Height
12 in
Product Width
11 in
Product Weight
118 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
60 Hz
Design
AP
Enclosure
Open
Frame
257
Mounting method
Side wall
Tap size
2@+2.5%, 2@-2.5%
Frequency rating
60 Hz
Primary voltage
600 V
Temperature rating
115°C
Volt ampere rating
7500 VA
Secondary voltage
120/240 V
Feature: 7.5 kVA (7500 VA) rating. Business Impact: Enables scalable control power for multi-axis automation and complex control schemes without oversizing components. Application: Ideal for machine control panels and automation cabinets where power demand can grow over time. Feature: 600 V primary and 120/240 V secondary. Business Impact: Provides flexible power topology to support diverse control circuits and field devices. Application: Suitable for retrofit projects and new installations in 600 V service areas. Feature: Frame 257 with side-wall mounting and open enclosure. Business Impact: Simplifies installation and maintenance in tight spaces, reducing field wiring time. Application: Common in open-panel configurations and compact control housings. Feature: Tap size 2@+2.5%, 2@-2.5%. Business Impact: Fine voltage regulation for sensitive control circuits, improving stability and performance. Application: Achieves tighter voltage control in critical automation logic. Feature: Electrostatic shield. Business Impact: Reduces electrical noise coupling, improving sensor accuracy and control reliability. Application: Essential in noisy industrial environments. Feature: Compliance and warranty. Business Impact: UL Recognized and RoHS compliant minimize regulatory risk; one-year warranty (or 18 months from shipment) lowers lifecycle risk. Application: Suitable for regulated industries and long-term asset management. Feature: Open enclosure and mounting flexibility. Business Impact: Facilitates fast commissioning and serviceability, cutting downtime. Application: Beneficial in retrofits and new builds where service access is limited.
