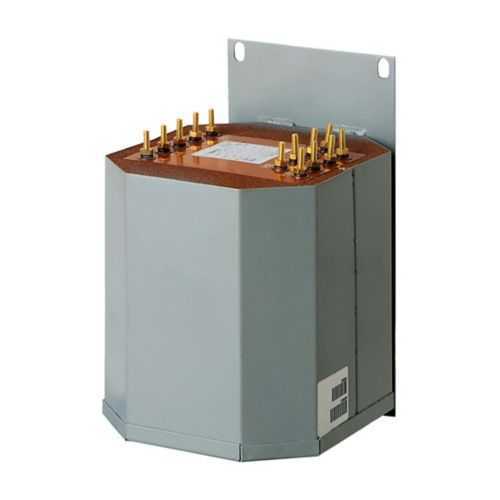

Eaton C0010P7GS IC Transformer - UL Recognized
Part Number: C0010P7GS
Quick Summary
Eaton C0010P7GS IC Transformer delivers reliable control power for industrial automation applications. It addresses panel-wiring variability and voltage consistency that delay machine startups. UL Recognized certification, resin-encapsulated construction for rugged environments, and 60 Hz operation support safe, long-life performance. With a 10 kVA rating, copper windings, and a compact, side-mounted design, it simplifies installation while conserving cabinet space. Secondary 120/240 V outputs power I/O and field devices, while primary 240/480 V suits standard feeders within a 180°C insulation system. In business terms, this transformer delivers dependable power with low loss and durable construction, improving uptime and simplifying procurement for control panels. Its 416A wiring and screw-terminal board streamline electrician work.
Product Information
Extended Description
C0010P7GS Eaton: Eaton Type AP industrial control transformer, pv: 240 x 480v, taps: none, sv: 120/240v, 115°c, 10000 va, cu magnet wire, frame: 258
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0010P7GS
UPC
786680183232
Product Length/Depth
10.748 in
Product Height
11.614 in
Product Width
11.378 in
Product Weight
140 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
258
Tap size
None
Wiring connection
416A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
10000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Feature: 10 kVA (10000 VA) rating enables handling of peak loads in demanding control panels. Business Impact: Reduces voltage drops during startup and transient events, improving equipment reliability. Application: Suitable for machine centers and process lines with variable loads. Feature: Resin-encapsulated construction with 60 Hz operation. Business Impact: Enhances environmental ruggedness, moisture resistance, and vibration tolerance, lowering maintenance costs. Application: Manufacturing floors, coastal facilities, and damp environments where reliability matters. Feature: Copper windings (CU magnet wire). Business Impact: Improves electrical efficiency and thermal performance, lowering energy waste and extending component life. Application: Continuous-duty control circuits in automated lines. Feature: Screw-type terminal board (convenient wiring). Business Impact: Speeds installation, reduces wiring errors, and simplifies field maintenance. Application: Panel builders and service teams installing feeders and I/O wiring. Feature: Frame 258, side/wall mounted design. Business Impact: Compact footprint saves cabinet space and simplifies retrofits in tight control rooms. Application: Bays, enclosures, and retrofit projects where space is at a premium. Feature: Primary 240/480 V, secondary 120/240 V with no taps. Business Impact: Versatile compatibility with common industrial power systems, minimizing the need for additional tap adapters. Application: Control panels powering both operators and sensors from a single transformer. Feature: 180°C insulation system. Business Impact: Higher thermal resilience supports longer runtimes in hot environments, reducing failure risk. Application: Enclosures near heat sources or in high-temperature production zones.
Get a Quick Quote for a Eaton C0010P7GS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0010P7GS?
Enquire Now
FAQs
The C0010P7GS is designed for side or wall mounting with a screw-type terminal board, supporting 240/480 V primary and 120/240 V secondary circuits, in 60 Hz environments typical of industrial control panels.
Key specs include a 10,000 VA rating, primary voltage 240/480 V, secondary voltage 120/240 V, 60 Hz operation, and 180°C insulation, with copper windings to optimize efficiency and heat management.
Yes. Its resin-encapsulated construction, robust frame 258, and reliable 10 kVA capacity make it well-suited for panel power supplies, IO power, and automation circuits in demanding environments.
The unit carries UL Recognized certification, providing essential electrical safety and reliability assurances for industrial installations and panel builds.
The screw-terminal board and side/wall mounting design speed installation and field servicing, while copper windings and 180°C insulation improve efficiency and long-term reliability, reducing downtime and maintenance costs.
