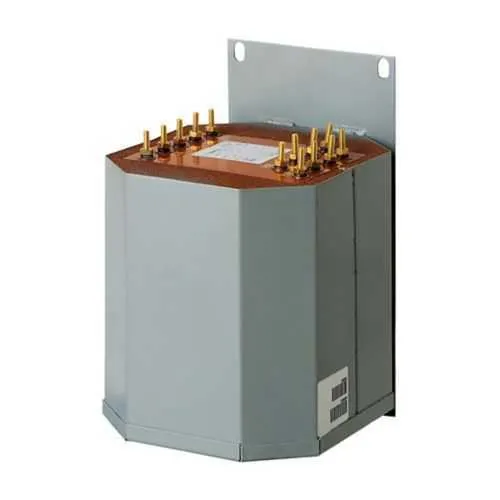

Eaton C0010P7LS Control Transformer - UL Recognized
Part Number: C0010P7LS
Quick Summary
The Eaton C0010P7LS is an industrial control transformer that supplies low-voltage control power for automation panels. Engineers often wrestle with bulky enclosures, thermal limits, and insulation margins that complicate panel layout and wiring. This unit carries UL Recognized certification and RoHS compliance, aligning with global electrical standards and reducing regulatory risk. Designed for resin-encapsulated AP frames and 60 Hz operation, it delivers reliable power for demanding control circuits. With copper windings, a 180°C insulation system, and a 10 kVA rating, it supports high-load applications while keeping heat in check. Side or wall mounting and straightforward wiring simplify installation, lowering downtime and total cost of ownership in mature manufacturing environments.
Product Information
Extended Description
C0010P7LS Eaton: Eaton Type AP industrial control transformer, pv: 240 x 480v, taps: none, sv: 277v, 115°c, 10000 va, cu magnet wire, frame: 258
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0010P7LS
UPC
786680071225
Product Length/Depth
10.748 in
Product Height
12 in
Product Width
11.378 in
Product Weight
140 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
258
Tap size
None
Wiring connection
531E
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
10000 VA
Secondary voltage
277 V
Modification 1
Side/wall mounted
Eaton Specification Sheet - C0010P7LS
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 10,000 VA rating with a 240 x 480 V primary and 277 V secondary. Business Impact: Enables high-load control circuits in automation panels with reliable, steady power. Application: Large manufacturing lines and machine controls requiring robust control power. Feature: Copper windings and a 180°C insulation system. Business Impact: Improves electrical efficiency and thermal resilience in demanding environments. Application: Harsh industrial settings where heat management is critical. Feature: Resin-encapsulated AP frame with 60 Hz operation. Business Impact: Offers compact, durable construction that reduces field failures and maintenance. Application: Panel installations in space-constrained or vibration-prone facilities. Feature: Side/wall mounting (Modification 1). Business Impact: Flexible installation and easier retrofitting in existing enclosures. Application: Control panel upgrades and new builds with limited mounting options. Feature: Wiring connection 531E and no taps. Business Impact: Streamlined field wiring and reduced wiring errors. Application: Integration with standard Eaton terminal boards in automated lines. Feature: Certifications and compliance (UL Recognized, RoHS). Business Impact: Regulatory confidence and eco-friendly materials support compliance and vendor audits. Application: Global production environments demanding traceable certifications and sustainable practices.
Get a Quick Quote for a Eaton C0010P7LS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0010P7LS?
Enquire Now
FAQs
The C0010P7LS supports side/wall mounting (Modification 1), enabling flexible installation in tight control panels and retrofits. This reduces enclosure changes, speeds up commissioning, and simplifies alignment with existing ducting and terminal boards.
Yes. The transformer is designed for a 240 x 480 V primary and provides a 277 V secondary, making it suitable for high-demand control circuits in North American and similar 60 Hz environments.
The C0010P7LS carries UL Recognized certification and RoHS compliance. Eaton offers a 1-year warranty from installation or 18 months from shipment per policy 25-000, whichever occurs first, providing reliability and support for maintenance planning.
A 10 kVA rating supports large control loads with copper windings and robust insulation, improving efficiency and thermal performance. This enables smaller, more reliable panels and reduces cooling requirements and energy waste in continuous-operation environments.
The unit uses a 531E wiring connection with no taps, simplifying field wiring and reducing miswirings. Its resin-encapsulated AP design is compatible with standard Eaton terminal boards and panel layouts, speeding up installation and ensuring consistent electrical performance.
