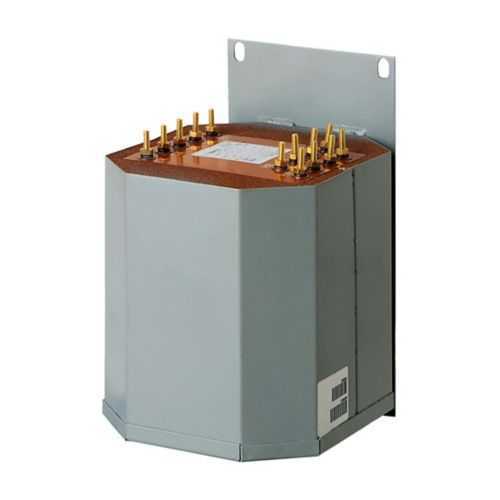

Eaton C0010P8TSES Industrial Control Transformer - UL Recognized
Part Number: C0010P8TSES
Quick Summary
Eaton C0010P8TSES is an industrial control transformer that delivers low-voltage power for panel and control circuits. Engineers frequently wrestle with finding a rugged, shielded unit that tolerates high ambient temperatures while offering precise voltage taps. This model is UL Recognized, RoHS compliant, and resin-encapsulated with a 180°C insulation system, ensuring reliability in harsh environments. By combining a copper-wound design in the AP frame with a 600 V primary and 120/240 V secondary, it supports modern automation while reducing panel heat and maintenance requirements. These features translate to lower installation risk and improved uptime for industrial machines and equipment.
Product Information
Extended Description
C0010P8TSES Eaton: Eaton Type AP industrial control transformer, pv: 600v, taps: 2 at +2.5% fcan, 2 at -2.5% fcbn, sv: 120/240v, 115°c, 10000 va, cu magnet wire, elec. shield, frame: 258
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0010P8TSES
UPC
786680018510
Product Length/Depth
10.748 in
Product Height
12 in
Product Width
10.75 in
Product Weight
150 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
258
Tap size
2 at +2.5% FCAN, 2 at -2.5% FCBN
Wiring connection
405D
Primary voltage
600 V
Temperature rating
115°C
Volt ampere rating
10000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Special features
Electrostatically shielded
Eaton Specification Sheet - C0010P8TSES
Selling Policy 25-000 - Distribution and Control Products and Services
Copper windings with resin encapsulation provide high insulation strength and moisture resistance, reducing thermal stress and extending transformer life in harsh factory floors. This directly lowers maintenance calls and supports continuous operation in critical automation circuits. Electrostatic shielding minimizes EMI, helping you meet EMC requirements when connecting variable frequency drives and PLCs, resulting in cleaner control signals and improved motor performance. The AP design with frame 258 and 405D wiring connection offers compact, side/wall mounting that simplifies panel layouts and reduces installation time, while the 600 V primary and 120/240 V secondary are tuned for common industrial control loads for quick integration. Two taps at +2.5% and -2.5% enable voltage regulation to compensate for line drops, reducing nuisance trips and maintaining control accuracy. Rugged construction supports 60 Hz operation, a 180°C insulation system, and a 150 lb frame, delivering reliable service in demanding environments. Warranty and compliance are reinforced by UL Recognized and RoHS certifications, giving procurement confidence for long-term support.
Get a Quick Quote for a Eaton C0010P8TSES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0010P8TSES?
Enquire Now
FAQs
Plan for side or wall mounting per Modification 1, using the 405D wiring connection and the resin-encapsulated construction to protect windings in dusty or humid environments. Ensure enclosure clearance and adequate airflow for a 150 lb unit, and verify 60 Hz operation compatibility with your panel layout.
Primary voltage is 600 V with a secondary of 120/240 V, and it provides 10,000 VA. It uses copper windings, includes an electrostatic shield, and supports taps at +2.5% and -2.5%. Frame 258, temperature rating 115°C, wiring connection 405D, and overall 60 Hz operation with a resin-encapsulated construction.
Yes. The transformer is specified for 60 Hz operation, features a 180°C insulation system, copper windings, and resin encapsulation to resist moisture and dust. It’s designed for continuous control-power service in rugged industrial settings and aligns with common 60 Hz panel applications.
The unit is UL Recognized, and RoHS Compliant, reflecting safety and material-regulatory adherence. The resin-encapsulated construction with an 180°C insulation system further supports reliability in harsh environments and regulatory acceptance for industrial control panels.
Rugged construction with copper windings, shielding, and resin encapsulation reduces field failures and maintenance cycles. The voltage-tap feature minimizes wiring changes during voltage fluctuations, supporting uptime. A reputable warranty (1 year from installation or 18 months from shipment) and UL/RoHS compliance also lower total cost of ownership and procurement risk.
