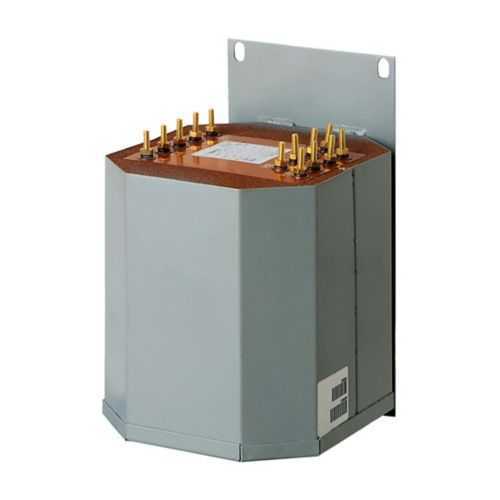

Eaton C0015P7GS AP Transformer - UL Recognized
Part Number: C0015P7GS
Quick Summary
Powering control circuits in industrial equipment, the Eaton C0015P7GS AP Transformer provides isolated, reliable power for relays, PLCs, and sensors. Many panel builders grapple with crowded enclosures, heat, and complex wiring, leading to longer assembly times and higher failure risk. This transformer carries UL Recognized safety, 60 Hz operation, and a robust 180°C insulation system, ensuring stability in challenging environments. With 15000 VA of capacity and a compact 259 frame, it fits tighter control panels while meeting demanding performance specs. In addition, copper windings and resin encapsulation enhance longevity and moisture resistance, helping reduce maintenance and improving uptime. The result is a strong, turnkey solution that supports efficient automation and scalable power distribution in your manufacturing line.
Product Information
Extended Description
C0015P7GS Eaton: Eaton Type AP industrial control transformer, Copper windings, None, 115°C, Industrial control transformer, 15000 VA, 416A, Side/wall mounted, AP, 259, 240 x 480 V, 120/240 V
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0015P7GS
UPC
786680183249
Product Length/Depth
13.189 in
Product Height
12.874 in
Product Width
10.433 in
Product Weight
191 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
259
Tap size
None
Wiring connection
416A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
15000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Copper windings deliver low resistance and high efficiency, reducing voltage drop across control circuits and improving relay and PLC reliability while cutting energy waste. This fundamental feature translates directly into fewer fault conditions and lower operating costs, especially in high-cycle automation environments. Resin encapsulation protects windings from dust, moisture, and harsh process conditions, extending service life and minimizing insulation-related failures in factory floors and wash-down areas. The 60 Hz rated design aligns with standard plant power, simplifying integration with existing infrastructure and reducing the risk of harmonics or compatibility issues. A 15000 VA rating supports robust control power for PLCs, relays, and sensors within modern panels, enabling faster commissioning and safer, steadier operation. The AP frame and 259 size provide a compact footprint for crowded control spaces, while the screw-type terminal board streamlines wiring and serviceability during installation and maintenance. Side/wall mounting adds installation flexibility in uneven or constrained enclosures, helping to minimize footprint and maximize panel density. Reliability is reinforced by copper windings, a 180°C insulation system, and UL Recognized safety, delivering predictable performance and easier regulatory compliance across industrial facilities. From OEM panel builders to maintenance teams, this transformer reduces downtime, simplifies service, and lowers total cost of ownership by combining rugged construction with straightforward installation and long-term resilience.
Get a Quick Quote for a Eaton C0015P7GS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0015P7GS?
Enquire Now
FAQs
The C0015P7GS uses a side/wall mounted AP design and fits within a compact 259 frame, making it suitable for many standard control panels. Its screw-type terminal board simplifies wiring during installation, and the 13.189 in length x 10.433 in width x 12.874 in height footprint helps maximize panel density without compromising accessibility for maintenance.
This transformer delivers 15000 VA with a primary of 240 x 480 V and a secondary of 120/240 V, providing ample control power for PLCs, relays, and sensors. Copper windings ensure low resistance and reliable voltage delivery, while 60 Hz operation aligns with typical plant electrical systems to minimize frequency-related losses and harmonics.
Yes. It is designed for 60 Hz operation and features resin encapsulation with a 180°C insulation system, which improves moisture and dust resistance. This makes it well-suited for automation lines in manufacturing, packaging, and process environments where reliability and insulation integrity under thermal stress are critical.
The C0015P7GS carries UL Recognized certification, supporting safe integration into regulated control panels and safety-rated systems. In addition to certification, the unit’s copper windings and high-temperature insulation contribute to reliability and long service life, reducing compliance-related maintenance and rework in industrial installations.
Maintenance benefits stem from resin encapsulation and copper windings that resist moisture ingress and reduce insulation degradation, lowering the likelihood of unexpected failures. The rugged construction, combined with a 15000 VA rating and compact footprint, reduces downtime and enables quicker panel upgrades, delivering a favorable return on investment through improved uptime and lower replacement costs.
