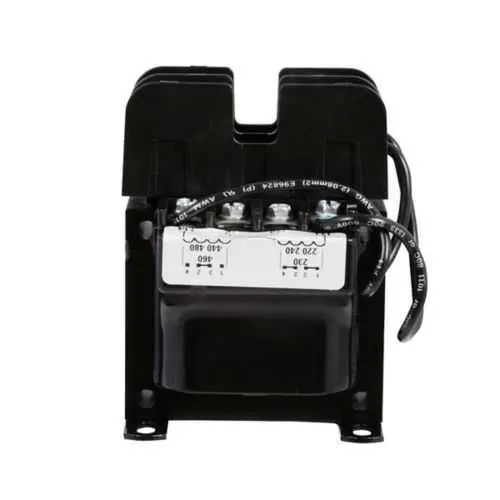

Eaton C0050E1BFB MTE control transformer - UL Listed
Part Number: C0050E1BFB
Quick Summary
Eaton C0050E1BFB MTE control transformer provides a compact, reliable low-voltage supply for industrial control circuits. Engineers often struggle with cramped control panels, integrating a primary fuse block, and maintaining performance in elevated temperatures. This unit carries UL Listed, cUL Certified, and CSA Certified marks, plus RoHS compliance, all backed by epoxy encapsulation for durability. Designed to simplify panel wiring and maintenance, it helps reduce downtime while delivering consistent, safe power for PLCs and relays.
Product Information
Extended Description
C0050E1BFB Eaton: Eaton Type MTE industrial control transformer, pv: 120 x 240v, sv: 24v, 55°c, 50 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0050E1BFB
UPC
786680421167
Product Length/Depth
3.36 in
Product Height
4.04 in
Product Width
3 in
Product Weight
2.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
50 VA
Secondary voltage
24 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: 50 VA power rating with a 120/240 V primary and 24 V secondary. Business impact: ensures adequate control voltage for PLC inputs, relays, and coil loads with headroom, reducing nuisance trips. Application: control panels, machine enclosures, and automation cabinets in manufacturing lines. Feature: Epoxy-encapsulated construction and high-quality silicon steel laminations. Business impact: minimizes core losses, reduces operating temperature rise, and extends service life in demanding environments. Application: continuous-duty 50/60 Hz installations where reliability matters. Feature: Copper windings with molded-in terminals. Business impact: provides low impedance connections and robust resistance to vibration, improving long-term connection integrity. Application: rugged factory floors and equipment racks requiring durable wiring harnesses. Feature: Factory-mounted two-pole primary fuse block for non-rejection type fuses. Business impact: safer installation, simplified wiring, and compliance with plant protection standards. Application: control panels needing integrated primary fuse protection. Feature: RoHS compliant with UL Listed, cUL, and CSA certifications. Business impact: regulatory compliance and smoother global sourcing, reducing certification risk. Application: industries with strict electrical standards (automotive, medical, process automation). Further benefits include a compact footprint (3.36 in L x 4.04 in H x 3 in W) and a 2.7 lb weight, enabling flexible panel placement, 50/60 Hz operation, and 130°C insulation for durable service.
Get a Quick Quote for a Eaton C0050E1BFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0050E1BFB?
Enquire Now
FAQs
The unit uses a factory-mounted two-pole primary fuse block and molded-in terminals, which simplifies wiring and improves safety. Ensure proper clearance for heat dissipation at 55°C and follow RoHS-compliant assembly practices to maintain UL and CSA certifications.
Primary voltage is 120/240 V, secondary voltage is 24 V, with a 50 VA rating and 55°C temperature rating. It uses copper windings and epoxy encapsulation, designed for 50/60 Hz operation in industrial environments.
Yes. Epoxy encapsulation, silicon steel laminations to minimize core losses, and molded-in terminals provide durability and stability in vibration-prone environments, while the compact 2.7 lb design aids mounting flexibility.
It is cUL Certified, UL Listed, CSA Certified, and RoHS compliant. These certifications support regulatory compliance, safer integration in global supply chains, and easier customer acceptance in regulated industries.
Benefits include reduced maintenance due to durable construction, lower downtime from integrated fuse protection, and reliable control voltage for PLCs and relays, which translates to improved equipment uptime and predictable panel performance.
