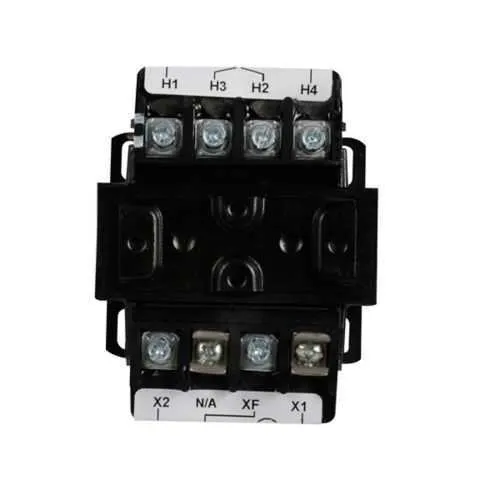

Eaton C0050E2A Industrial Control Transformer - RoHS
Part Number: C0050E2A
Quick Summary
The Eaton Type MTE industrial control transformer provides a compact, reliable low-voltage power source for control panels and automation systems. Engineers frequently contend with heat buildup, core losses, and vibration in demanding industrial environments, which can compromise control reliability. This model carries UL Listed, cUL Certified, CSA Certified, and RoHS Compliant marks, ensuring safety, regulatory alignment, and minimal material risk. With epoxy encapsulation, high-quality silicon-steel laminations, and molded-in terminals, it delivers durable performance in crowded panels and harsh environments. Its compact footprint and clear electrical ratings simplify installation, spare-part planning, and ongoing maintenance, helping equipment owners improve uptime and reduce total cost of ownership while maintaining compliance.
Product Information
Extended Description
C0050E2A Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 50 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0050E2A
UPC
786680422522
Product Length/Depth
3.61 in
Product Height
3.26 in
Product Width
3 in
Product Weight
2.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
50 VA
Secondary voltage
120/115/110 V
50 VA of power with 220x440 V, 230x460 V, or 240x480 V primary options, and a 120/115/110 V secondary delivers flexible control-supply solutions for a wide range of coils and relays. Copper windings and epoxy encapsulation minimize copper losses and protect windings in hot environments, while silicon-steel laminations reduce core losses to improve efficiency and reduce heat. The molded-in terminals offer vibration resistance and durable field connections, simplifying installation in crowded enclosures. A compact footprint—3.61 in length, 3.26 in height, and 3.00 in width with a 2.7 lb weight—facilitates panel mounting and service in tight electrical cabinets. Compliance with RoHS and certifications from UL, cUL, and CSA reduce supplier-risk and support global deployments. The 55°C temperature rating and 50/60 Hz operation provide reliable performance across typical plant environments, backed by Eaton’s 1-year warranty.
Get a Quick Quote for a Eaton C0050E2A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0050E2A?
Enquire Now
FAQs
For panel mounting, rely on the compact 3.61 in L × 3.26 in H × 3.00 in W footprint and 2.7 lb weight. The molded-in terminals and epoxy encapsulation resist vibration and environmental exposure. With no taps, plan your wiring around the available primary/secondary voltage configurations (220/440 V, 230/460 V, 240/480 V to 120/115/110 V). Ensure adequate clearance for heat dissipation at 55°C and verify enclosure-rated protection in dusty or humid environments.
Primary voltages are 220x440 V, 230x460 V, and 240x480 V, offering flexibility to match common control circuits. The secondary voltage is 120/115/110 V. There are no taps configured on this model, so you select the appropriate primary pairing for your supply and wire the corresponding secondary to the control circuitry.
Yes. It is RoHS Compliant and carries UL Listed, cUL Certified, and CSA Certified markings. These certifications support regulatory compliance for global deployments and reduce risk in procurement and system integration. The epoxy encapsulated construction plus 55°C insulation rating further enhances safety performance in real-world industrial environments.
The 50 VA rating supports reliable control-supply for PLCs, relays, and coil circuits. Copper windings minimize resistance losses, while silicon-steel laminations reduce core losses and heat, enabling longer service life in warm cabinets. Molded-in terminals boost vibration resistance, and the compact form factor eases dense panel layouts, contributing to lower installation time and reduced maintenance costs.
Eaton provides a one-year warranty under policy 25-000 from installation or 18 months from shipment, whichever occurs first. This coverage aligns with typical OEM service expectations and supports planned maintenance and budget planning. For field support or technical advice, contact Eaton's technical support channel or your authorized distributor.
