Eaton C0050E5EFB Industrial Control Transformer - cUL Listed
Part Number: C0050E5EFB
Quick Summary

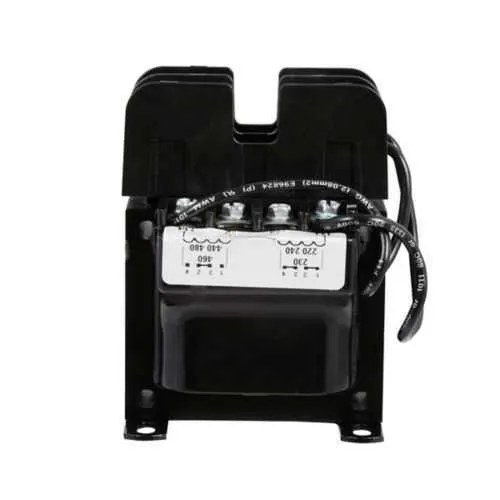

The Eaton C0050E5EFB industrial control transformer delivers safe, reliable low-voltage power for control circuits in industrial equipment. Downtime planning and mismatched primary voltages often complicate control-system design and extend project timelines. It is RoHS compliant and carries cUL Listed, UL Listed, and CSA Certified markings to meet global safety and environmental requirements. With epoxy encapsulation and molded-in terminals, installation is faster and more durable, while its compact 3.86 in by 4.04 in footprint fits tight panels and supports flexible secondary voltage options, ensuring efficient integration into a wide range of automation environments.
Product Information
Extended Description
C0050E5EFB Eaton: Industrial control transformer, MTE, taps: none, sv: 23/110v, 24/115v, 25/120v
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0050E5EFB
UPC
786680421709
Product Length/Depth
3.86 in
Product Height
4.04 in
Product Width
3 in
Product Weight
4.3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
200/220/440 V, 208/230/460 V, 240/480 V
Temperature rating
55°C
Volt ampere rating
50 VA
Secondary voltage
23/110 V, 24/115 V, 25/120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Eaton Specification Sheet - C0050E5EFB
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 50 VA VA rating provides sufficient power for typical relay and logic loads. Business impact: reduces the risk of undervoltage faults and allows smaller, more energy-efficient control hardware. Application: ideal for compact control panels in packaging lines and machine control cabinets. Feature: Multiple primary voltage configurations (200/220/440 V; 208/230/460 V; 240/480 V). Business impact: simplifies global installations and reduces spare parts; improves field serviceability. Application: OEM equipment and multinational manufacturing lines needing flexible sourcing. Feature: Secondary voltages of 23/110 V, 24/115 V, 25/120 V. Business impact: supports diverse control circuits and signaling needs without additional transformers. Application: drive logic, relays, and PLC interfaces in automation panels. Feature: Epoxy encapsulated construction with high-quality silicon steel laminations. Business impact: minimizes core losses, enhances efficiency, and withstands harsh environments. Application: continuous operation in 50/60 Hz industrial settings up to 130°C insulation. Feature: Copper windings and molded-in terminals. Business impact: improves electrical conductivity, reliability, and installation durability; reduces maintenance downtime. Application: rugged industrial applications with frequent thermal cycling. Feature: Factory-mounted two-pole primary fuse block. Business impact: enables safe fuse protection without separate components; simplifies electrical schematics. Application: control panels requiring built-in protection for non-rejection type fuses and streamlined maintenance.
Get a Quick Quote for a Eaton C0050E5EFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0050E5EFB?
Enquire Now
FAQs
The C0050E5EFB uses molded-in terminals and epoxy-encapsulated construction, which simplifies panel wiring and improves durability in harsh environments. Its compact footprint (3.86 in L x 3 in W x 4.04 in H) fits tight control panels while delivering 50 VA of power for typical relays and PLC interfaces.
Primary voltages include 200/220/440 V, 208/230/460 V, and 240/480 V; secondary voltages provide for 23/110 V, 24/115 V, and 25/120 V. This versatility supports global manufacturing setups and diverse control circuits without additional transformers.
The transformer is RoHS compliant and carries cUL Certified, UL Listed, and CSA Certified markings, ensuring safety, environmental compliance, and compatibility with North American and global control standards.
Eaton provides a warranty under policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first, backing reliability and long-term service for critical control power.
Factory-mounted two-pole primary fuse block provides built-in protection for non-rejection type fuses, simplifying wiring, reducing component count, and improving safety during maintenance and fault recovery in automation panels.
