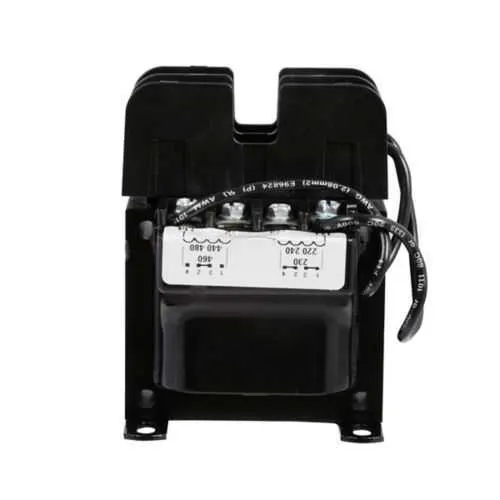

Eaton C0050E6UFB Industrial Control Transformer - RoHS
Part Number: C0050E6UFB
Quick Summary
Industrial Control Transformer Eaton C0050E6UFB provides compact, reliable low-voltage power for control circuits in industrial equipment. This model helps minimize panel size and heat while delivering a steady 50 VA across diverse systems. Facilities often face downtime and space challenges due to bulky, under-spec transformers that fail to match control gear. The RoHS compliant device is UL Listed and CSA certified, with molded-in terminals and epoxy encapsulation that reduce wire stress and core losses. Built with copper windings, a 130°C insulation system, and a 55°C rating for demanding environments, it supports 50/60 Hz operation. For OEMs and integrators, this transformer offers predictable performance, easy mounting, and lifecycle cost savings through reduced maintenance and longer service intervals.
Product Information
Extended Description
C0050E6UFB Eaton: Eaton Type MTE industrial control transformer, industrial control transformer, MTE, pv: 240/416/480/600v, 230/400/460/575v, 220/380/440/550v, 208/500v, taps: none
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0050E6UFB
UPC
782116061945
Product Length/Depth
4.016 in
Product Height
4.252 in
Product Width
3.386 in
Product Weight
4.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified CSA Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V
Temperature rating
55°C
Volt ampere rating
50 VA
Secondary voltage
99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: 50 VA rating with broad primary voltage options provides flexible deployment in mixed-voltage environments. Business impact: simplifies sourcing across multiple sites and reduces inventory complexity, boosting uptime in automation panels and PLC power supplies. Application: machine control panels requiring stable control voltages from 208/500 V or 230/400/460/575 V inputs. Feature: Epoxy-encapsulated construction with copper windings improves efficiency and durability by minimizing core losses and thermal stress. Business impact: longer transformer life and lower maintenance costs in harsh factory floors. Application: rugged automation racks and OEM equipment exposed to vibration. Feature: Molded-in terminals and a factory-mounted two-pole primary fuse block enable faster, safer installation and reduced wiring time. Business impact: lowers labor costs and minimizes miswiring risk in panel assemblies. Application: new panel builds and retrofits in conveyor systems and packaging lines. Feature: 130°C insulation system and 55°C temperature rating support operation in higher-temperature environments. Business impact: enhanced reliability and regulatory compliance for industrial environments. Application: control circuits in heat-prone machinery. Feature: RoHS compliance with UL/cUL and CSA certifications ensures regulatory alignment and safe integration. Business impact: accelerates procurement approvals and reduces compliance risk in regulated industries. Application: multi-site OEM deployments and end-user installations across manufacturing sectors.
Get a Quick Quote for a Eaton C0050E6UFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0050E6UFB?
Enquire Now
FAQs
The C0050E6UFB is designed for typical control panel use with molded-in terminals and a factory-mounted two-pole primary fuse block. Its compact footprint (4.016 in L x 4.252 in H x 3.386 in W) and 4.2 lb weight simplify layout. Ensure enclosure rating matches ambient conditions and that no output taps are required for the chosen secondary voltage.
This transformer provides 50 VA with multiple primary voltages—208/500 V, 230/400/460/575 V, 240/416/480/600 V—and secondary voltages of 99/120/130 V, 95/115/125 V, 91/110/120 V, or 85/100/110 V. It operates at 50/60 Hz and carries a 55°C rating, suitable for standard control circuits and PLC interfaces.
Yes. The 50 VA output and multi-voltage primary/secondary options support PLC inputs and machine controller power rails. With copper windings and epoxy encapsulation, it offers reliable regulation and energy efficiency in panel-mounted applications. Use the correct secondary voltage for the PLC module and ensure clearance and isolation within the control cabinet.
The C0050E6UFB is RoHS compliant and UL Listed, with CSA and cUL certifications. These markings confirm electrical safety, material restrictions, and compatibility with North American regulatory frameworks, facilitating easier procurement and compliance documentation for regulated industries.
Epoxy encapsulation and copper windings minimize core losses and mechanical stress, reducing failure rates in harsh environments. A one-year warranty from installation (or 18 months from shipment) provides a baseline protection period. The molded-in terminals and fuse block simplify maintenance and future upgrades, supporting lower maintenance overhead and longer service life in automation hardware.
