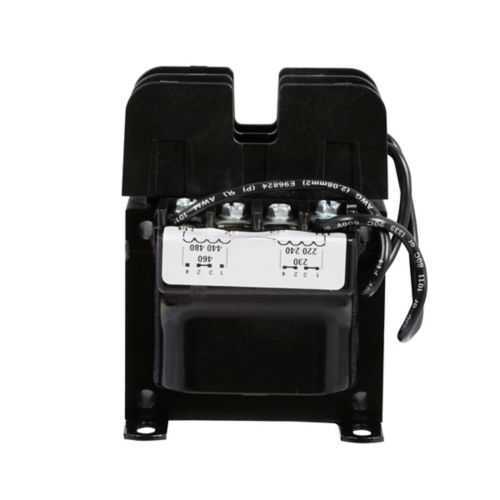

Eaton C0075E5EFB Industrial Control Transformer - UL Listed
Part Number: C0075E5EFB
Quick Summary
Eaton Type MTE industrial control transformer delivers reliable, low-voltage power for control circuits in industrial panels. It helps engineers overcome space constraints and wiring challenges common in modern machinery. The unit is CSA Certified, UL Listed, and cUL Certified, assuring regulatory compliance across North America and helping with risk management. With RoHS compliance and epoxy encapsulation, it reduces moisture risk and enhances durability. The 75 VA rating, multiple primary voltages, and versatile secondary voltages simplify sourcing, enable faster panel wiring, and lower total cost of ownership over the product life cycle.
Product Information
Extended Description
C0075E5EFB Eaton: Eaton Type MTE industrial control transformer, pv: 200/220/440v, 208/230/460v, 240/480v, sv: 23/110v, 24/115v, 25/120v, 55°c, 75 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0075E5EFB
UPC
786680421723
Product Length/Depth
3.49 in
Product Height
4.35 in
Product Width
3.38 in
Product Weight
4.3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified cUL Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
200/220/440 V, 208/230/460 V, 240/480 V
Temperature rating
55°C
Volt ampere rating
75 VA
Secondary voltage
23/110 V, 24/115 V, 25/120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Epoxy encapsulation protects the windings from moisture, dust, and vibration, delivering reliable operation in harsh factory environments. The molded-in terminals simplify wiring and reduce terminal failure risk, accelerating install time and improving field serviceability. This approach also supports compact panel designs by minimizing clearance requirements in control cabinets. Copper windings paired with silicon steel laminations minimize core losses and temperature rise, boosting overall efficiency in steady-state control circuits. In practice, that translates to cooler operation and lower cooling requirements in panel enclosures. Designed for 50/60 Hz operation and a 55°C insulation system, the MTE delivers 75 VA from a compact footprint while providing multiple primary voltages and versatile secondary voltages to simplify sourcing and reduce spare-part SKUs. The factory-mounted two-pole primary fuse block provides built-in protection for non-rejection fuses, reducing surge risks and enabling faster panel wiring. Molded-in terminals withstand vibration and repeated wiring cycles, extending service life in demanding environments. RoHS compliance ensures regulatory compatibility across markets and helps maintain sustainability goals, while CSA, UL, and cUL certifications underpin safety credibility for machine builders and end users. This combination supports reliable automation, easier maintenance, and lower total cost of ownership for industrial panels and machinery.
Get a Quick Quote for a Eaton C0075E5EFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0075E5EFB?
Enquire Now
FAQs
Plan for the molded-in terminals and epoxy-encapsulated construction to resist vibration and moisture. The unit includes a factory-mounted two-pole primary fuse block to simplify wiring and enhance protection. Ensure enough clearance for mounting within typical control cabinets and verify compatibility with 50/60 Hz operation and a 55°C insulation system to maintain performance in demanding environments.
Primary voltages are 200/220/440 V, 208/230/460 V, and 240/480 V, with secondary options of 23/110 V, 24/115 V, and 25/120 V. This multi-voltage capability reduces stock diversity and simplifies sourcing for panel builders, while enabling flexible wiring schemes in automation and control circuits without additional transformers.
Yes. The unit is RoHS compliant and carries CSA Certified, UL Listed, and cUL Certified marks, providing North American safety and regulatory credibility. These certifications support compliance in industrial machinery, medical-adjacent environments is not implied; always verify sector-specific requirements for your application.
Ideal for control panels in conveyors, machine tools, packaging lines, and other automation equipment. Its 75 VA rating, copper windings, and epoxy-encapsulated core support reliable control circuits, while molded-in terminals and the fuse block streamline installation and maintenance in space-constrained panels.
Expect reduced downtime due to rugged construction and durable terminals, with improved reliability from copper windings and silicon steel laminations that minimize core losses. The built-in fuse block and molded terminals cut wiring time and protection maintenance, contributing to a lower total cost of ownership through longer service intervals and fewer field faults.
