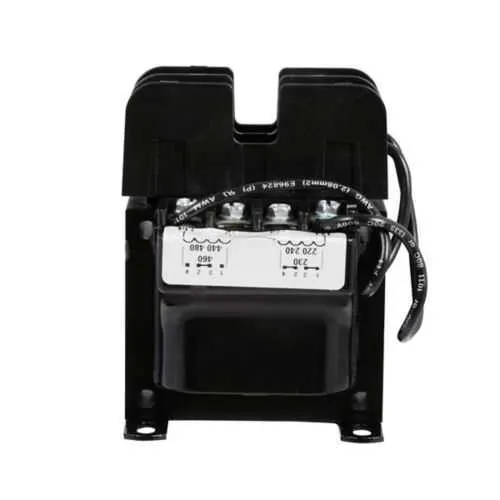

Eaton C0150E2AFB Industrial Control Transformer - UL Listed
Part Number: C0150E2AFB
Quick Summary
The Eaton Type MTE industrial control transformer delivers reliable low-voltage power for control circuits in industrial machinery. This addresses the common pain of inconsistent voltage and downtime in automation panels. Certified for CSA, UL Listed, and cUL, with RoHS compliance, it meets safety and environmental requirements across North American factories. Engineered for 50/60 Hz operation with a 55°C insulation system and a 150 VA rating, it also features epoxy encapsulation and molded-in terminals to simplify wiring and enhance durability. For panel builders seeking compact, compliant power sources, the MTE transformer provides predictable performance with easy installation in standard control cabinets.
Product Information
Extended Description
C0150E2AFB Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, sv: 120/115/110v, 55°c, 150 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0150E2AFB
UPC
786680420863
Product Length/Depth
3.88 in
Product Height
4.67 in
Product Width
3.75 in
Product Weight
5.3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
150 VA
Secondary voltage
120/115/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Epoxy encapsulation with high-quality silicon steel laminations reduces core losses and improves efficiency in 50/60 Hz operation, lowering heat and extending service life for automation panels. This translates to lower energy waste and reduced maintenance, particularly in medium-duty panel applications. Copper windings deliver reliable current delivery and better thermal performance, supporting consistent control power for PLCs, relays, and motor starters. Molded-in terminals enhance durability against vibration and environmental exposure, simplifying wiring during assembly and service. The factory-mounted two-pole primary fuse block reduces field wiring steps and provides built-in protection for non-rejection type fuses, streamlining installation in tight panel layouts. With a 150 VA rating and fixed primary voltages, it is a predictable, ready-to-run solution for mid-load control circuits in machines and conveyors. RoHS compliance and third-party certifications (UL, CSA, cUL) support regulatory planning and future-proof procurement for regulated industries.
Get a Quick Quote for a Eaton C0150E2AFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0150E2AFB?
Enquire Now
FAQs
The C0150E2AFB supports primary voltages of 220×440 V, 230×460 V, and 240×480 V with a secondary of 120/115/110 V. It operates at 50/60 Hz and provides a 150 VA rating, using copper windings and epoxy encapsulation with molded-in terminals for reliable control power in automation panels.
Yes. The transformer is RoHS compliant and is CSA Certified, UL Listed, and cUL Certified, ensuring safety and environmental compliance. It is designed for 50/60 Hz operation with a 55°C insulation system and includes features like molded-in terminals and a fuse block option to meet regulatory and maintenance requirements.
Installation benefits include molded-in terminals for durable wiring connections, epoxy encapsulation to resist moisture and vibration, and a compact footprint (3.88 in L × 3.75 in W × 4.67 in H) weighing 5.3 lb. The factory-mounted two-pole primary fuse block reduces wiring steps and improves protection in panel builds.
Ideal for panel builders and machine builders in manufacturing environments, it provides reliable control power for PLCs, relays, and automation circuits. Its fixed primary voltages and 150 VA rating support medium-load control applications, with robust construction suitable for 50/60 Hz operation in typical factory settings.
Warranty follows Eaton policy 25-000: one year from installation or 18 months from shipment, whichever occurs first. Support resources include the Eaton specification sheet and customer service. The RoHS and certifications simplify ongoing compliance, maintenance planning, and parts procurement for regulated industries.
