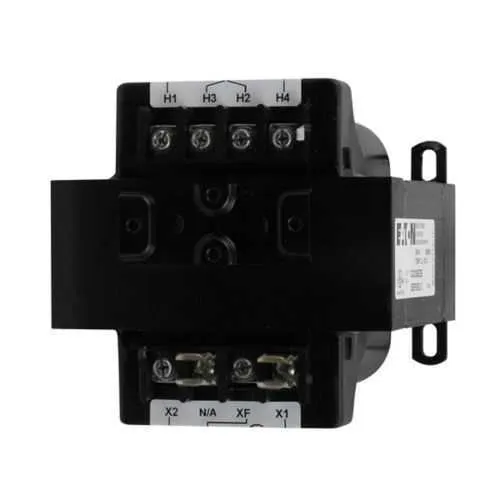

Eaton C0200E1B MTE industrial control transformer UL Listed
Part Number: C0200E1B
Quick Summary
Eaton C0200E1B MTE industrial control transformer provides 24 V control power from 120/240 V mains. Installers often struggle with bulky, unreliable power supplies in harsh environments; this device offers a compact epoxy-encapsulated package and molded-in terminals that withstand vibration and exposure. It carries UL Listed, CSA Certified, and cUL Certified markings with RoHS compliance, supporting mainstream regulatory needs. The 50/60 Hz-compatible design, 130°C insulation system, and copper windings combine to deliver reliable performance in control panels and machine builders. With a 200 VA rating and durable construction, it helps streamline panel layouts, reduce maintenance, and ensure consistent control voltage across equipment.
Product Information
Extended Description
C0200E1B Eaton: Eaton Type MTE industrial control transformer, pv: 120 x 240v, taps: none, sv: 24v, 55°c, 200 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0200E1B
UPC
786680423000
Product Length/Depth
5.5 in
Product Height
7.5 in
Product Width
5 in
Product Weight
7.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
200 VA
Secondary voltage
24 V
Eaton Specification Sheet - C0200E1B
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 120/240 V primary with 24 V secondary and 200 VA rating; Business Impact: ensures reliable control power for multiple relays and PLC inputs, reducing nuisance trips and improving uptime; Application: control panels, machine tools, and automation circuits. Feature: Epoxy encapsulation and copper windings; Business Impact: enhances durability in vibration-prone or harsh environments, lowering maintenance costs; Application: rugged industrial environments and outdoor installations. Feature: Molded-in terminals, 50/60 Hz operation, 130°C insulation; Business Impact: simplifies installation, supports global deployment, and resists thermal stress; Application: integrated automation cabinets and conveyors. Feature: RoHS compliant with UL Listed, CSA Certified, and cUL; Business Impact: minimizes compliance risk and procurement complexity for regulated industries; Application: medical device manufacturing, data centers, and process industries. Feature: Laminations of high-quality silicon steel to minimize core losses; Business Impact: improves efficiency and reduces operating heat, extending service life; Application: continuous-operation control systems in manufacturing. Feature: Compact footprint at 5.5 in x 5 in x 7.5 in and 7.7 lb weight; Business Impact: saves panel space and eases installation in tight electrical rooms; Application: space-constrained automation panels and retrofit projects.
Get a Quick Quote for a Eaton C0200E1B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0200E1B?
Enquire Now
FAQs
Yes. The C0200E1B supports 120/240 V primary input and 24 V secondary output, rated at 200 VA, with 50/60 Hz operation and molded-in copper windings. Its epoxy-encapsulated design and standard dimensions (5.5 in L x 5 in W x 7.5 in H) enable straightforward mounting in standard control panels and door-mounted cabinets.
Key specs include primary voltage 120/240 V, secondary voltage 24 V, VA rating 200, frequency 50/60 Hz, insulation system rated at 130°C, and copper windings. The unit is RoHS compliant and designed for epoxy encapsulation with molded-in terminals.
Yes, its 200 VA rating, durable copper windings, and laminated silicon steel core minimize losses and heat, supporting continuous operation in automation panels, conveyors, and robot controllers while maintaining voltage stability.
It is UL Listed, CSA Certified, and cUL Certified, with RoHS compliance. These certifications reduce qualification time for regulated industries and simplify procurement by meeting common safety and environmental requirements.
Epoxy encapsulation and molded-in terminals improve durability and reduce field failures, lowering maintenance costs. A stable, 24 V control supply from a robust transformer reduces downtime and supports longer equipment life and predictable ROI in automated lines.
