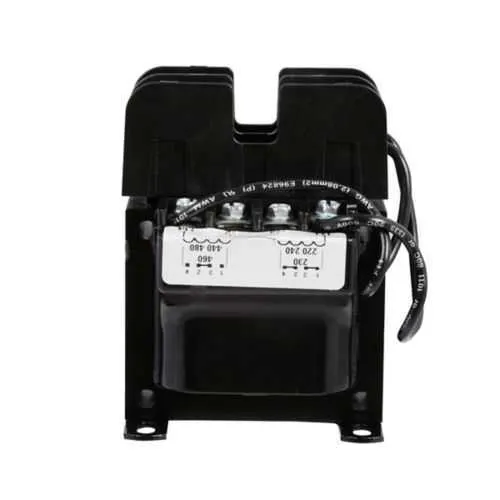

Eaton C0200E1BFB Industrial Control Transformer - UL Listed
Part Number: C0200E1BFB
Quick Summary
Eaton C0200E1BFB industrial control transformer provides 24 V control power from 120/240 V mains for automation panels. In many facilities, voltage swings and non-durable control power disrupt PLCs and relays, leading to downtime and rework. It carries UL Listed, CSA Certified, and cUL Certified marks with RoHS compliance to meet global panel standards. Designed for Eaton's Type MTE applications, it enables reliable control power for conveyors, machines, and process equipment while keeping installation straightforward and compliant. The compact 3.8 in L × 4.5 in W × 5.29 in H footprint and 8.9 lb weight simplify panel layouts, while epoxy encapsulation and molded-in terminals reduce field wiring damage and maintenance.
Product Information
Extended Description
C0200E1BFB Eaton: Eaton Type MTE industrial control transformer, pv: 120 x 240v, taps: none, sv: 24v, 55°c, 200 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0200E1BFB
UPC
786680421242
Product Length/Depth
3.8 in
Product Height
5.29 in
Product Width
4.5 in
Product Weight
8.9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
200 VA
Secondary voltage
24 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: 120/240 V primary and 24 V secondary with 200 VA rating. Benefit: Delivers stable control power to PLCs, relays, and sensors, reducing voltage drop and downtime in automation panels. Application: Control power in conveyors, machine tools, and process equipment. Feature: Copper windings and 55°C temperature rating with 130°C insulation. Benefit: Higher coil durability and operation in hot panel environments, improving long-term reliability and reducing replacement cycles. Application: Harsh manufacturing environments and high-heat enclosures. Feature: Epoxy encapsulation and molded-in terminals. Benefit: Enhanced moisture and vibration resistance with simpler wiring, speeding installation and minimizing field damage. Application: Panel builders seeking robust, maintenance-friendly assemblies. Feature: Factory-mounted two-pole primary fuse block and primary fuse block option. Benefit: Safer, code-compliant wiring with reduced lead times and fewer field modifications. Application: Quick integration into standard Eaton MTE panels. Feature: 50/60 Hz operation, RoHS compliance, and multiple certifications (UL Listed, CSA Certified, cUL). Benefit: Broad compatibility across international markets with proven regulatory alignment and reduced compliance risk. Application: Global manufacturing sites and multi-region machines needing consistent control power.
Get a Quick Quote for a Eaton C0200E1BFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0200E1BFB?
Enquire Now
FAQs
Begin by confirming 120/240 V supply compatibility and mounting within the panel. Use the molded-in terminals for wiring on both primary and secondary sides, connect the factory-mounted two-pole primary fuse block as specified, and secure the enclosure to prevent vibration. Ensure clear labeling of 24 V secondary circuits and observe the 55°C rating for ambient conditions.
Yes. The unit is RoHS compliant and carries UL Listed, CSA Certified, and cUL Certified marks, ensuring compliance with widely adopted safety and environmental standards. This makes procurement simpler for global projects and supports regulatory alignment in panel builds.
Ideal for control circuits in automation panels, conveyors, machine tools, and process equipment. The 24 V secondary power supports relays, PLC inputs, and sensors, while the 200 VA rating provides ample headroom for moderate control loads in compact panel footprints.
Certified UL Listed, CSA Certified, and cUL Certified with RoHS compliance. The 55°C temperature rating and 130°C insulation system support dependable performance in typical industrial environments. For high-temperature zones, verify ambient conditions and ventilation to maintain reliable operation.
The epoxy encapsulation, copper windings, and molded-in terminals reduce field wiring damage and moisture ingress, lowering maintenance needs. The factory fuse block simplifies wiring, reducing installation time and labor costs, while robust certifications reduce compliance risk and potential downtime in automated lines.
