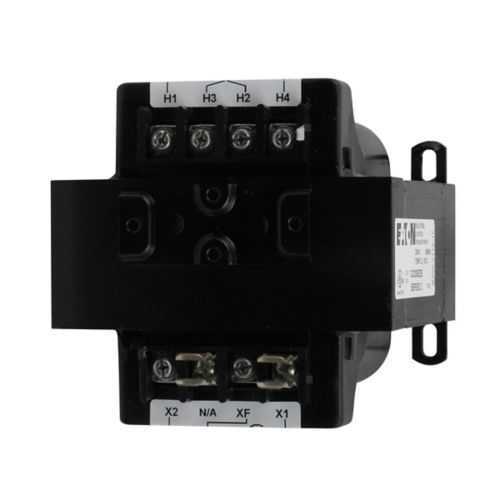

Eaton C0200E3A industrial control transformer - UL Listed
Part Number: C0200E3A
Quick Summary
The Eaton C0200E3A industrial control transformer provides reliable low-voltage power for control circuits in industrial automation and panel applications. Engineers often struggle with durability, core losses, and mounting reliability in harsh environments. This unit carries CSA Certified, cUL Certified, and UL Listed marks, plus RoHS compliance, ensuring safety, regulatory alignment, and environmental responsibility. With 208/277 V primary and 120 V secondary at 200 VA, epoxy-encapsulated laminations and copper windings minimize losses and extend service life. Molded-in terminals, a compact footprint, and 50/60 Hz operation simplify installation and service in control panels, machine enclosures, and robotics applications, delivering predictable performance and reduced downtime.
Product Information
Extended Description
C0200E3A Eaton: Eaton Type MTE industrial control transformer, pv: 208/277v, taps: none, sv: 120v, 55°c, 200 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0200E3A
UPC
786680550201
Product Length/Depth
4.18 in
Product Height
4.22 in
Product Width
4.5 in
Product Weight
9.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified cUL Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/277 V
Temperature rating
55°C
Volt ampere rating
200 VA
Secondary voltage
120 V
Eaton Specification Sheet - C0200E3A
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Copper windings and epoxy-encapsulated laminations are designed to minimize core losses and improve reliability. Business Impact: Reduced operating temperatures and longer transformer life translate to lower energy waste and less maintenance. Application: Ideal for continuous-duty control circuits in panelboards and automation enclosures. Feature: 208/277 V primary to 120 V secondary with a 200 VA rating provides direct power for typical control loads. Business Impact: Supports standard automation loads with predictable performance and margin for transient spikes. Application: Machine control panels, conveyors, and robotics interfaces. Feature: Molded-in terminals and compact 4.18 in × 4.22 in × 4.5 in footprint enable quick, durable installation. Business Impact: Faster installation, reduced field wiring errors, and improved vibration resistance. Application: Enclosures with limited space and vibration environments. Feature: RoHS compliant with CSA, cUL, and UL Listed certifications ensure safety and regulatory alignment. Business Impact: Lower compliance risk, easier procurement, and broader market acceptance. Application: Regulated facilities and equipment requiring certified control power. Feature: 55°C insulation system and 50/60 Hz operation support compatibility with common industrial control systems. Business Impact: Stable performance across typical plant environments, reducing unexpected downtime. Application: Control circuits across manufacturing lines and automation cells. Feature: Epoxy encapsulation and molded-in terminals contribute to durability in challenging environments. Business Impact: Enhanced moisture resistance and lower maintenance costs over the service life. Application: Harsh environments, including moisture-prone panel rooms and outdoor installations.
Get a Quick Quote for a Eaton C0200E3A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0200E3A?
Enquire Now
FAQs
The C0200E3A uses molded-in terminals and an epoxy-encapsulated construction, which protect internal windings and simplify mounting. Its compact footprint (roughly 4.18 in L × 4.22 in H × 4.5 in W) and 9.5 lb weight make it easy to mount in standard control panels while maintaining vibration resistance in industrial environments.
It features a 208/277 V primary and a 120 V secondary with a 200 VA rating, designed for 50/60 Hz operation. The copper windings and 55°C insulation support reliable performance in typical plant conditions.
Yes. It carries CSA Certified, cUL Certified, and UL Listed marks and is RoHS compliant, providing regulatory assurance and environmental responsibility for panel builders and integrators.
This transformer is ideal for powering control circuits in panels, machine enclosures, conveyors, and automation equipment that use 208/277 V mains to generate 120 V control power, with reliable operation across standard industrial environments.
Epoxy encapsulation and molded-in terminals reduce moisture ingress and mount wear, lowering maintenance needs. The robust construction supports longer service life, reduces downtime, and aligns with Eaton's warranty policy (one year from installation or 18 months from shipment), contributing to lower lifecycle costs.
