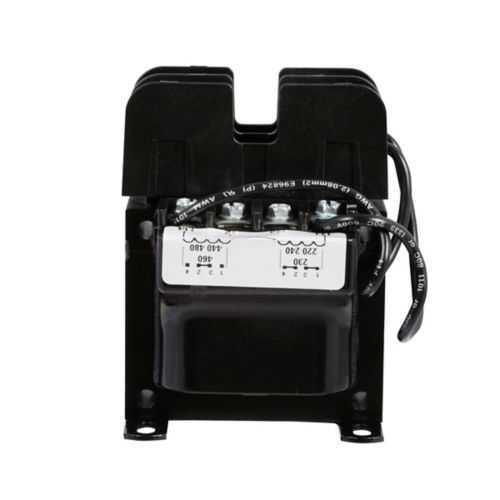

Eaton Type MTE industrial control transformer C0250E6UFB - UL Listed
Part Number: C0250E6UFB
Quick Summary
Eaton Type MTE industrial control transformer is a compact power source for control panels and automation equipment. Designers often struggle with durable, space-efficient transformers that deliver stable secondary voltages across varying loads. This unit is UL Listed, cUL Certified and CSA Certified with RoHS compliance, ensuring regulatory alignment and long-term reliability. With a 250 VA rating and copper windings, it offers robust performance in demanding environments, while epoxy encapsulation and molded-in terminals simplify installation. Ideal for control power in panels, machine tools, and automation equipment, it supports global mains with multiple primary voltages and a range of secondary options, delivering value across industrial applications.
Product Information
Extended Description
C0250E6UFB Eaton: Eaton Type MTE industrial control transformer, pv: 240/416/480/600v, 230/400/460/575v, 220/380/440/550v, 208/500v, taps: none, sv: 99/120/130v, 95/115/125v, 91/110/120v, 85/100/110v, 55°c, 250 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0250E6UFB
UPC
786680019173
Product Length/Depth
5.5 in
Product Height
5.197 in
Product Width
4.488 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed cUL Certified CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V
Temperature rating
55°C
Volt ampere rating
250 VA
Secondary voltage
99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature Copper windings → Business Impact: high efficiency and durability → Application: suitable for continuous control circuits in demanding environments. Feature 250 VA rating → Business Impact: supports reliable control loads and PLC inputs while minimizing cabinet space → Application: control panels and automation equipment. Feature multiple primary voltage options (208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V) → Business Impact: broad compatibility with global power systems reduces the need for field rewiring → Application: global machine builders and multi-site facilities. Feature secondary voltages 99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V → Business Impact: flexible control circuit interfacing and legacy equipment compatibility → Application: control relays and motor starters. Feature 55°C temperature rating and epoxy encapsulation → Business Impact: reliable operation in hot industrial spaces and resistance to vibration → Application: harsh factory floors and panel assemblies. Feature Copper windings + molded-in terminals → Business Impact: improved efficiency and easier, faster wiring reduces installation time and maintenance. Feature Factory-mounted two-pole primary fuse block → Business Impact: built-in protection reduces wiring complexity and enhances safety → Application: ready-to-install control transformers in assembled panels. Feature RoHS Compliant + UL Listed, cUL Certified, CSA Certified → Business Impact: regulatory compliance and safer procurement decisions → Application: certified panels for industrial markets. Feature Catalog Notes include molded-in terminals and high-quality laminations → Business Impact: lower core losses and durable performance over the product life → Application: end-user equipment with continuous duty cycles.
Get a Quick Quote for a Eaton C0250E6UFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0250E6UFB?
Enquire Now
FAQs
Install the unit in a clean, ventilated panel with adequate clearance around the enclosure. Use the factory-mounted two-pole primary fuse block to ensure input protection, and thread wiring through molded-in terminals to minimize vibration-related wear. Verify ambient temperature stays within the 55°C insulation rating and ensure proper torque on terminal screws to maintain reliable connections.
The transformer is rated at 250 VA with primary voltages including 208/500 V, 220/380/440/550 V, 230/400/460/575 V, and 240/416/480/600 V. Secondary voltages are selectable in 99/120/130 V, 95/115/125 V, 91/110/120 V, and 85/100/110 V ranges. Temperature rating is 55°C, and copper windings provide efficient, durable operation for control circuits.
Yes. The transformer is UL Listed, cUL Certified, and CSA Certified, with RoHS compliance. Epoxy encapsulation and molded-in terminals further enhance durability in rugged environments, making it a robust choice for certified control panels and equipment.
Best suited for control panels, automation equipment, PLCs, relays, and motor starters in manufacturing settings. Its multiple primary and secondary voltage options simplify global installations, while the built-in fuse block and compact 250 VA form factor support efficient panel design and maintenance for machine tools and process equipment.
Built-in primary fuse block reduces wiring and enhances safety, while molded-in terminals and copper windings improve long-term reliability. The 55°C insulation system and epoxy encapsulation deliver durable performance with lower core losses and reduced downtime, contributing to faster returns on investment in continuous-duty control applications.
