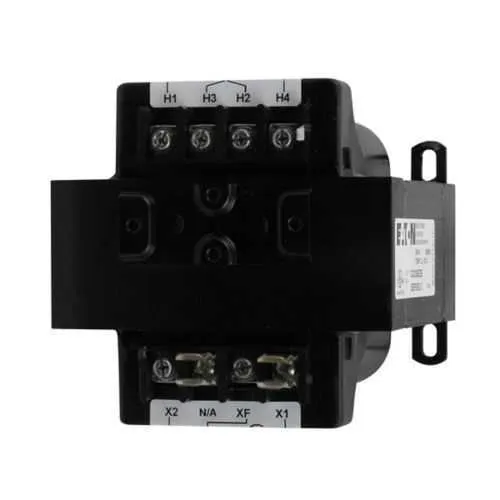

Eaton C0300E1B Transformer - UL Listed & CSA Certified
Part Number: C0300E1B
Quick Summary
Eaton C0300E1B industrial control transformer delivers 120/240 V input to a 24 V control circuit for panel power. In tight control panels, engineers need durable, compliant parts that fit a compact footprint without sacrificing reliability. UL Listed and CSA Certified standards underpin safety and traceability, while RoHS compliance supports global procurement. With 300 VA capacity and a 55°C insulation system, it reduces panel complexity and maintenance costs. This combination of efficiency, durability, and certifications supports safer, compliant control power for industrial automation. Designed for easy installation, molded-in terminals and copper windings help installers meet schedules and standards. Its epoxy encapsulation minimizes vibration and core losses, delivering consistent performance in 55°C environments.
Product Information
Extended Description
C0300E1B Eaton: Eaton Type MTE industrial control transformer, pv: 120 x 240v, taps: none, sv: 24v, 55°c, 300 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0300E1B
UPC
786680423048
Product Length/Depth
4.56 in
Product Height
4.22 in
Product Width
4.5 in
Product Weight
11 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
300 VA
Secondary voltage
24 V
With a 120/240 V primary and a 24 V secondary, this transformer delivers dedicated control power to relays, PLC inputs, and motor starters, enabling reliable control circuits without oversizing equipment. The 300 VA rating translates to robust performance across typical automation loads, reducing the need for multiple smaller transformers. Core construction uses epoxy encapsulation and laminations of high-quality silicon steel to minimize core losses and improve efficiency, especially in 50/60 Hz environments. The result is lower energy waste and cooler operation, which can extend component life and cut maintenance costs. Molded-in terminals and copper windings simplify installation and improve durability in vibration-prone industrial settings. Copper windings provide better electrical conductivity and heat resistance, while molded terminals resist wear from frequent connections. Compact dimensions—approximately 4.56 in long, 4.5 in wide, and 4.22 in high—fit standard electrical enclosures without compromising accessibility. RoHS compliance along with UL Listed, CSA Certified, and cUL certifications ensure regulatory alignment and procurement across global plants. The epoxy encapsulation also guards against moisture and dust ingress, supporting long service life in harsh environments. Designed for panel builders and integrators, this MTE-style transformer offers 50/60 Hz compatibility and molded-in terminals for quick wiring and reduced installation time.
Get a Quick Quote for a Eaton C0300E1B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0300E1B?
Enquire Now
FAQs
The Eaton C0300E1B provides a 120/240 V primary and a 24 V secondary suitable for standard control circuits, relays, PLC inputs, and motor starters. With a 300 VA rating and molded-in copper windings, it fits within common panel power budgets while offering robust reliability and easy wiring in standard 4.56 x 4.5 x 4.22 inch enclosures.
Electrical specs include a 120/240 V primary input, 24 V secondary output, a 300 VA volt-ampere rating, and a 55°C insulation system. The device uses copper windings and epoxy encapsulation, with molded-in terminals for durable field wiring. It is RoHS compliant and designed for 50/60 Hz operation in industrial environments.
Yes. It accommodates 24 V control circuits for PLC inputs and relay/motor starter applications. Its compact dimensions, sturdy copper windings, molded-in terminals, and reliable 300 VA rating provide stable auxiliary power in control panels, reducing the need for multiple smaller transformers and helping maintain panel reliability.
The C0300E1B carries UL Listed and CSA Certified marks, with cUL certification also noted, along with RoHS compliance. These certifications ensure electrical safety, product traceability, and global procurement compatibility, while epoxy encapsulation adds protection against moisture and dust in harsh industrial settings.
The transformer’s durable epoxy encapsulation, copper windings, and high-quality silicon steel laminations reduce core losses and vibration, translating to lower maintenance and longer service life in 55°C environments. The 300 VA rating supports reliable control power in compact footprints, potentially reducing inventory of multiple devices and shortening panel installation times.
