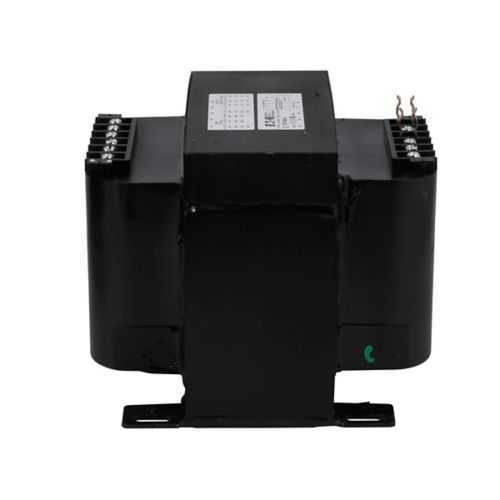

Eaton C0350E1B Industrial Control Transformer - UL Listed
Part Number: C0350E1B
Quick Summary
Eaton Type MTE industrial control transformer delivers clean 24V control power for panel and machine control systems. In dense control panels, space, heat, and durability are common challenges that can drive downtime and maintenance costs. UL Listed, CSA Certified, and RoHS compliant, this transformer meets North American regulatory requirements and helps mitigate risk in critical automation deployments. Designed for reliability, it combines compact footprint with robust insulation and molded-in terminals, delivering predictable lifecycle costs and straightforward installation for panel builders and OEMs. Use cases span PLC coils, relays, and other control loads, enabling efficient, safe power delivery in automated environments.
Product Information
Extended Description
C0350E1B Eaton: Eaton Type MTE industrial control transformer, cu magnet wire, pv: 120 x 240v, taps: none, sv: 24v, 55°c, 350 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0350E1B
UPC
786680423062
Product Length/Depth
4.56 in
Product Height
4.21 in
Product Width
4.5 in
Product Weight
11.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
350 VA
Secondary voltage
24 V
Epoxy encapsulation and molded-in terminals provide moisture resistance, vibration durability, and simpler field wiring, reducing installation time and fault rates in harsh environments. This translates to lower maintenance needs and extended service life for automation panels where uptime directly impacts productivity. Copper windings paired with silicon steel laminations minimize copper losses and core losses, improving overall efficiency and reducing heat generation in operation, which supports cooler running transformers in switchgear enclosures. The dual primary 120/240 V and fixed 24 V secondary configuration simplifies integration into existing electrical schemes, avoiding tap adjustments and ensuring consistent control power for PLCs, relays, and contactor coils. A 350 VA rating supports multiple control loads from a single unit, reducing footprint and capital cost while simplifying spare parts planning. With 50/60 Hz operation, a 55°C temperature rating, and a 130°C insulation system, the design tolerates elevated ambient temperatures typical of factory floors, delivering reliable performance in demanding industrial spaces. RoHS compliance and UL Listed/CSA/cUL certifications provide regulatory assurance for panel builds and end-user installations, streamlining procurement and compliance workflows. The molded-in terminals and epoxy encapsulation also contribute to improved vibration resistance and dependable performance under shock and tilt scenarios common in manufacturing plants.
Get a Quick Quote for a Eaton C0350E1B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0350E1B?
Enquire Now
FAQs
For proper mounting, position the transformer in a ventilated panel area to manage heat build-up, and use the molded-in terminals for secure field wiring. The unit weighs about 11.2 lb, so plan for stable mounting on a panel rail or surface. Ensure clearance for maintenance and avoid direct exposure to moisture or corrosive environments.
The C0350E1B features a dual primary of 120/240 V and a fixed secondary of 24 V, rated at 350 VA. It uses copper windings and operates at 50/60 Hz with a 55°C temperature rating and a 130°C insulation system, making it suitable for standard industrial control loads and PLC peripherals.
Yes. The transformer is UL Listed, CSA Certified, and cUL Certified, with RoHS compliance. This combination provides regulatory confidence for North American installations, simplifying compliance documentation and supplier approvals for panel assemblies, OEM equipment, and repair/replacement programs.
Epoxy encapsulation protects windings and core from moisture and contaminants, reducing maintenance needs. Molded-in terminals minimize wiring wear from vibration. With proper enclosure protection and torque on terminals, expect extended life in factory environments, lower incidence of insulation failures, and fewer field service calls compared to non-encapsulated designs.
Applications with multiple 24V control loads—such as PLC coils, relay banks, valve actuators, and small motor contactor circuits—benefit from the 350 VA rating. This allows a single transformer to power several control devices, reducing footprint, wiring complexity, and overall cost in automation panels and machine control cabinets.
