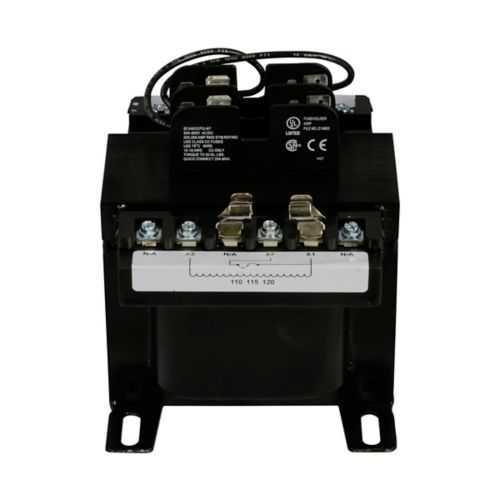

Eaton C0350E1BFB Industrial Control Transformer - RoHS
Part Number: C0350E1BFB
Quick Summary
Eaton C0350E1BFB Industrial Control Transformer provides reliable control power for machine controls in industrial equipment. This unit simplifies panel design by delivering a stable 24 V secondary from a dual 120/240 V primary, with a 350 VA rating. Many users struggle with space constraints, wiring complexity, and insufficient protection in control power supplies; this transformer addresses those challenges with a compact footprint and molded-in terminals. UL Listed, CSA Certified, and cUL Certified, plus RoHS compliance, it meets key safety and environmental standards while supporting 50/60 Hz operation. The combination of epoxy encapsulation and copper windings delivers durable performance in demanding environments, while the factory-mounted two-pole primary fuse block reduces wiring work and boosts reliability, offering solid business value for panel builders and end users alike.
Product Information
Extended Description
C0350E1BFB Eaton: Eaton Type MTE industrial control transformer, pv: 120 x 240v, taps: none, sv 24V, 55°c, 350 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0350E1BFB
UPC
786680421303
Product Length/Depth
4.56 in
Product Height
5.29 in
Product Width
4.5 in
Product Weight
11.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified cUL Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
120 x 240 V
Temperature rating
55°C
Volt ampere rating
350 VA
Secondary voltage
24 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: Dual primary 120/240 V with a 350 VA rating; Business impact: Flexible connection options and ample headroom for control circuits, reducing the need for multiple transformers; Application: Suitable for machine controls in varied power environments. Feature: Secondary 24 V copper windings; Business impact: Stable, low-voltage control power improves relay and PLC performance and minimizes fluctuations; Application: PLC inputs, relay coils, and control circuits. Feature: Epoxy encapsulated construction with molded-in terminals; Business impact: Enhanced durability and vibration resistance, simplified wiring, and long-term reliability in harsh environments; Application: Industrial control panels. Feature: 50/60 Hz operation and 130°C insulation; Business impact: Broad compatibility with global equipment and improved insulation safety margins; Application: Equipment deployed across diverse regional specs. Feature: Factory-mounted two-pole primary fuse block; Business impact: Built-in protection reduces wiring complexity and improves panel safety compliance; Application: Systems requiring integrated protection. Feature: RoHS compliant with UL/cUL and CSA certifications; Business impact: Eases procurement and regulatory alignment, reducing risk and audit findings; Application: Regulated manufacturing environments and safety-critical installations.
Get a Quick Quote for a Eaton C0350E1BFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0350E1BFB?
Enquire Now
FAQs
For installation, plan for the unit’s 4.56 in length, 4.5 in width, and 5.29 in height footprint, with a weight around 11.2 lb. Take advantage of the molded-in terminals and epoxy encapsulation for vibration resistance. The factory-mounted two-pole primary fuse block simplifies wiring and enhances panel protection, while ensuring compatibility with 50/60 Hz systems.
Electrical specs include dual primary input of 120/240 V, a 24 V secondary, and a 350 VA power rating. The transformer uses copper windings and operates at 55°C with a 130°C insulation system, suitable for continuous duty in industrial control circuits and panel applications.
Yes. The C0350E1BFB is designed for 50/60 Hz operation, enabling flexible deployment across regional power standards. This versatility helps minimize stock variety and supports consistent performance in global manufacturing environments.
The transformer is UL Listed, CSA Certified, and cUL Certified, with RoHS compliance. These certifications confirm regulatory alignment, safety assurance, and reduced hazardous materials in compliance with international procurement requirements.
With epoxy encapsulation, copper windings, and molded-in terminals, the unit offers high durability and low failure risk, reducing maintenance downtime. The built-in primary fuse block lowers wiring fault potential, streamlines replacement, and can contribute to shorter mean time to repair (MTTR) and lower total cost of ownership in plant control systems.
