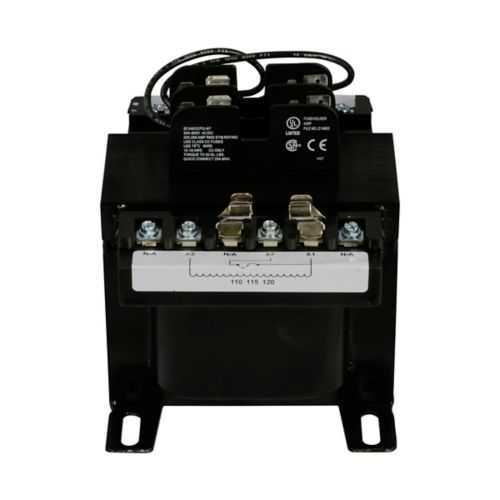

Eaton C0350E2AFB Industrial Control Transformer - UL Listed
Part Number: C0350E2AFB
Quick Summary
The Eaton C0350E2AFB industrial control transformer powers panel controls with reliable low-voltage output. In today’s automated lines, voltage drift and heat can disrupt PLCs and sensors, causing costly downtime. Rated for 55°C ambient, 350 VA, and available in multiple primary–secondary configurations, it supports broad automation applications. UL Listed, CSA Certified, and cUL Certified, with RoHS compliance, ensures regulatory alignment and safe operation. Designed for flexible installation and long-term reliability, it offers molded-in terminals, a factory-mounted fuse block, and copper windings that help meet demanding industrial requirements while simplifying procurement and maintenance.
Product Information
Extended Description
C0350E2AFB Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 350 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0350E2AFB
UPC
786680420948
Product Length/Depth
4.56 in
Product Height
5.29 in
Product Width
4.5 in
Product Weight
11.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
350 VA
Secondary voltage
120/115/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Eaton Specification Sheet - C0350E2AFB
Selling Policy 25-000 - Distribution and Control Products and Services
Epoxy encapsulation and a 130°C insulation system reduce core losses and heat, boosting efficiency and enabling reliable operation in 50/60 Hz environments. The transformer’s copper windings and silicon steel laminations minimize energy waste and thermal rise, translating into longer panel life and improved PLC performance. Available primary voltages of 220/440, 230/460, and 240/480 V with a secondary of 120/115/110 V give you broad compatibility for diverse plant voltages, lowering wiring complexity and stocking needs. Copper windings also withstand higher current peaks, supporting conveyors and robotics with stable output. Molded-in terminals and a factory-mounted two-pole primary fuse block simplify wiring, reduce installation time, and improve field serviceability. RoHS compliance plus UL/CSA certifications reduce compliance risk for regulated environments, while the 1-year warranty provides total-cost-of-ownership protection.
Get a Quick Quote for a Eaton C0350E2AFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0350E2AFB?
Enquire Now
FAQs
The C0350E2AFB supports 50/60 Hz operation and multiple primary voltages—220/440, 230/460, and 240/480 V—allowing direct substitution in many standard automation panels. Its epoxy encapsulation, copper windings, and molded-in terminals simplify integration, wiring, and heat management in compact control enclosures.
This transformer provides a 350 VA rating with copper windings and high-quality silicon steel laminations to minimize core losses. Rated for 55°C ambient, it maintains reliable output under typical industrial loads, improving PLC responsiveness and reducing transformer-related downtime in harsh environments.
Yes. With a 120/115/110 V secondary and robust insulation, it feeds PLCs, relays, and auxiliary circuits efficiently. Its molded-in terminals and factory-mounted fuse block streamline installation, while the RoHS and UL/CSA certifications ensure safe, compliant operation in automation environments.
The unit is UL Listed, CSA Certified, and cUL Certified, with RoHS compliance. These certifications support regulatory compliance across North America and align with safety standards for industrial control equipment used in panel assemblies and power distribution networks.
A one-year warranty accompanies the unit, reflecting Eaton's reliability. Durable epoxy encapsulation, molded-in terminals, and an integrated fuse block reduce field maintenance, minimize unplanned downtime, and increase panel uptime, delivering a favorable return on investment for automated systems and mission-critical applications.
