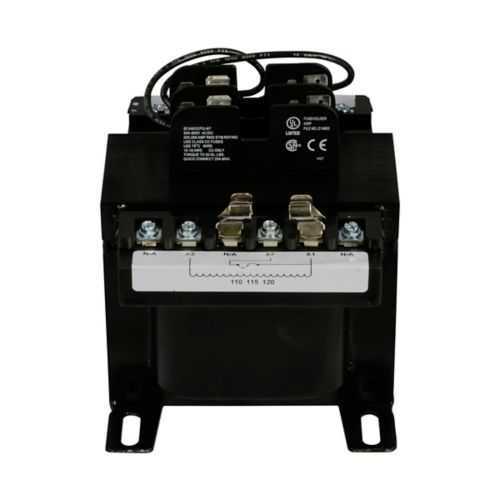

Eaton C0350E5EFB Industrial Control Transformer - RoHS
Part Number: C0350E5EFB
Quick Summary
Eaton C0350E5EFB industrial control transformer is designed to deliver reliable low-voltage power for control circuits in industrial equipment. It helps simplify panel design by providing multiple primary voltages and a stable 23/110, 24/115, or 25/120 V secondary output, which reduces parts, inventory, and wiring complexity. It carries cUL, UL, and CSA certifications and RoHS compliance, supporting regulatory and environmental requirements. For buyers, this transformer translates to faster installation, reduced part numbers, and lower lifecycle costs while maintaining safety and performance in power management applications. With 50/60 Hz operation and epoxy encapsulation, it is engineered for durable service in challenging industrial environments.
Product Information
Extended Description
C0350E5EFB Eaton: Eaton Type MTE industrial control transformer, pv: 200/220/440v, 208/230/460v, 240/480v, taps: none, sv: 23/110v, 24/115v, 25/120v, 55°c, 350 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0350E5EFB
UPC
786680421846
Product Length/Depth
5.5 in
Product Height
5.875 in
Product Width
5.25 in
Product Weight
14.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
200/220/440 V, 208/230/460 V, 240/480 V
Temperature rating
55°C
Volt ampere rating
350 VA
Secondary voltage
23/110 V, 24/115 V, 25/120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: Copper windings and epoxy encapsulation. Business impact: Improves efficiency, reduces losses, and enhances durability under high-temperature operation. Application: Suitable for control circuits in harsh environments where reliability matters. Feature: Multiple primary and secondary voltage options. Business impact: Enables flexible installation across global facilities with a single part number, lowering stocking needs and installation time. Application: Control panels, PLC power supplies, and machine controls. Feature: Molded-in terminals and factory-mounted two-pole primary fuse block. Business impact: Simplifies wiring, improves vibration resistance, and speeds field installation. Application: Industrial automation panels and equipment with stringent reliability requirements. Feature: 55°C rating and 130°C insulation system. Business impact: Extends service life in warm plant floors and dense electrical rooms, reducing maintenance costs. Application: Continuous-duty control circuits in factories and packaging lines. Feature: RoHS compliance and certified safety (cUL, UL, CSA). Business impact: Ensures regulatory compliance and customer acceptance across markets. Application: End-user deployments needing recognized safety and environmental standards. Feature: 350 VA power rating with 200/220/440 V primary and 23/110, 24/115, 25/120 V secondary. Business impact: Delivers adequate control power with compact footprint, enabling smaller panels. Application: Machinery control, conveyors, and automated equipment.
Get a Quick Quote for a Eaton C0350E5EFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0350E5EFB?
Enquire Now
FAQs
Begin by verifying the primary voltage setting matches your incoming supply (200/220/440 V, 208/230/460 V, or 240/480 V). Use the molded-in terminals for field connections and the factory-mounted two-pole primary fuse block for fuse protection. Mount the unit securely, observe clearance for heat dissipation, and tidy wiring to avoid interference with other components. Finally, confirm secondary wiring to the control circuits and perform a functional test.
The transformer accepts multiple primary voltages: 200/220/440 V, 208/230/460 V, and 240/480 V. It provides secondary voltages of 23/110 V, 24/115 V, or 25/120 V, with a total rating of 350 VA. It operates at 50/60 Hz and uses copper windings, making it suitable for diverse control and automation power needs in machines and panels.
Yes. The unit is epoxy-encapsulated and uses silicon steel laminations to minimize core losses, supporting durability. It has a 55°C temperature rating with a 130°C insulation system, molded-in terminals, and a factory-mounted fuse block, all contributing to reliable operation in demanding environments and helping to reduce maintenance intervals.
This transformer is cUL Listed, UL Certified, and CSA Certified, with RoHS compliance. These certifications indicate adherence to recognized safety and performance standards, facilitating regulatory approval, insurer confidence, and market acceptance for industrial equipment across multiple regions.
Eaton provides a warranty under policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This includes coverage for manufacturing defects and support for field issues. For technical questions, installation guidance, or part replacement, contact Eaton’s technical support to minimize downtime and preserve ROI.
