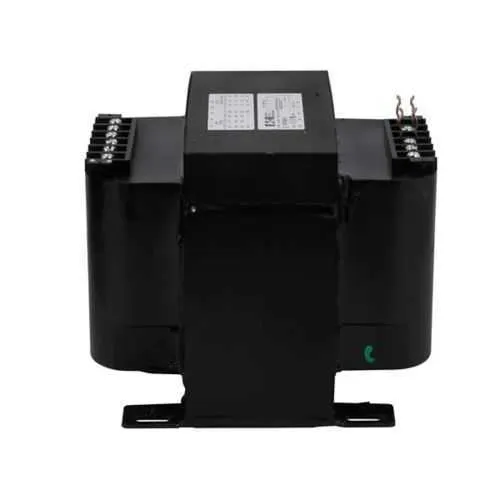

Eaton C0350E6U Industrial Control Transformer - UL Listed
Part Number: C0350E6U
Quick Summary
The Eaton C0350E6U Industrial Control Transformer provides reliable low-voltage power for control circuits in industrial panels. Manufacturers often struggle with voltage drift, heat buildup, and costly downtime from undersized transformers. This unit carries CSA Certified, UL Listed, and cUL Certified markings, supporting regulatory compliance in demanding factory environments. Epoxy encapsulation, molded-in terminals, and copper windings minimize core losses and simplify field installation. With a 350 VA rating and broad primary/secondary voltage options for 50/60 Hz systems, it offers flexibility and value for panel builders and OEMs, reducing waste and inventory complexity. The result is improved uptime and predictable performance across automation and machine control applications.
Product Information
Extended Description
C0350E6U Eaton: Eaton Type MTE industrial control transformer, pv: 240/416/480/600v, 230/400/460/575v, 220/380/440/550v, 208/500v, taps: none, sv: 99/120/130v, 95/115/125v, 91/110/120v, 85/100/110v, 55°c, 350 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0350E6U
UPC
786680019142
Product Length/Depth
5.63 in
Product Height
4.449 in
Product Width
5.236 in
Product Weight
18.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V
Temperature rating
55°C
Volt ampere rating
350 VA
Secondary voltage
99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V
Epoxy encapsulated construction paired with high-quality silicon steel laminations minimizes core losses, delivering improved efficiency in continuous operation and reduced heat in compact enclosures. Copper windings enhance conductivity and thermal performance under full-load conditions, ensuring stable secondary voltage for relays, sensors, and controllers. Molded-in terminals simplify wiring, reduce field installation time, and enhance durability in harsh environments. A 350 VA rating with multiple primary and secondary voltages provides design flexibility for diverse control circuits without overdesign. RoHS compliance supports regulatory alignment and waste reduction, while UL Listed, cUL Certified, and CSA certification deliver traceability and risk mitigation for panel builders, OEMs, and maintenance teams. The compact footprint and robust isolation suit industrial automation, machine controls, and process equipment.
Get a Quick Quote for a Eaton C0350E6U
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0350E6U?
Enquire Now
FAQs
Plan for the 5.63 in length, 4.449 in height, and 5.236 in width enclosure footprint. The unit uses molded-in copper-windings with epoxy encapsulation and molded terminals, which simplifies wiring and improves vibration resistance in rugged panels. Ensure adequate clearance for heat dissipation at 350 VA rated load and confirm primary and secondary voltages match your control circuits (208/500 V, etc.).
Primary voltages cover 208/500 V, 220/380/440/550 V, 230/400/460/575 V, and 240/416/480/600 V. Secondary voltages include 99/120/130 V, 95/115/125 V, 91/110/120 V, and 85/100/110 V. The transformer is rated at 350 VA, suitable for powering control relays, sensors, and logic circuits in a compact footprint.
Yes. The C0350E6U is designed for 50/60 Hz operation with a 350 VA rating, offering broad compatibility with common industrial control panels and automation equipment that operate at standard mains frequencies.
The unit carries CSA Certified and UL Listed/cUL Certified markings, indicating third‑party safety compliance and suitable performance in North American facilities. RoHS compliance also reduces hazardous substances. These certifications help meet industry standards, customer procurement requirements, and regulatory audits in manufacturing environments.
Epoxy encapsulation and molded-in terminals reduce moisture ingress and loosening connections, improving durability in harsh environments. Copper windings enhance efficiency and thermal management, lowering operating costs. The 350 VA rating and robust construction support longer service life with less downtime, delivering sustained return on investment for panel builders and OEMs.
