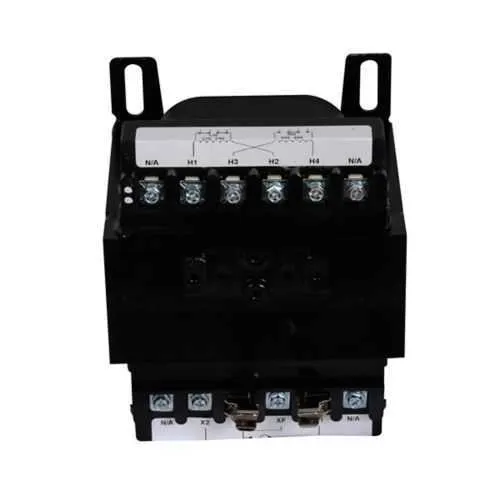

Eaton C0500E2A Industrial Control Transformer - UL Listed
Part Number: C0500E2A
Quick Summary
Eaton Type MTE industrial control transformer reliably delivers control power for panel-mounted automation systems. In practice, engineers often face durability and wiring reliability challenges in harsh manufacturing environments, where moisture, dust, and heat can degrade performance. UL Listed, cUL Certified, and CSA Certified ratings, plus RoHS compliance, help ensure regulatory readiness and safer operation across industries. Epoxy-encapsulated construction with high-quality silicon steel laminations minimizes core losses and supports efficient energy transfer. The molded-in terminals enhance durability in vibration-prone applications, reducing field wiring damage. With a 500 VA rating and copper windings, this transformer provides stable secondary voltages for 120/115/110 V loads while tolerating up to 55°C ambient conditions. Compact dimensions simplify panel layout and installation, delivering reliable power for industrial control and automation projects.
Product Information
Extended Description
C0500E2A Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 500 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E2A
UPC
786680422683
Product Length/Depth
6.11 in
Product Height
5.14 in
Product Width
5.25 in
Product Weight
17.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed cUL Certified CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
120/115/110 V
Feature: 500 VA rating with primary voltages of 220x440 V, 230x460 V, and 240x480 V. Business Impact: This flexibility reduces part counts and stocking complexity, enabling quicker changes in line configurations and easier maintenance. Application: Control panels and automation skids in machine tools, packaging lines, and process equipment benefit from a single, adaptable transformer that supports multiple supply arrangements. Feature: Copper windings paired with laminated silicon steel cores. Business Impact: Higher efficiency and lower core losses translate to cooler operation and lower energy waste over the transformer’s life. Application: Industrial environments where continuous control power is required for relays, sensors, and PLCs without overheating. Feature: Epoxy encapsulation and molded-in terminals. Business Impact: Enhanced environmental protection and vibration resistance reduce field failures and maintenance intervals. Application: Harsh factory floors, dusty or oily plants, and equipment mounted in tight spaces where robust wiring is essential. Feature: 130°C insulation system and a 55°C temperature rating, with 50/60 Hz compatibility. Business Impact: Improved reliability under elevated ambient conditions and compatibility with common electrical environments. Application: Control circuits in HVAC, conveyors, and robotic cells operating in warm production lines. Feature: RoHS compliance and UL Listed, cUL Certified, CSA Certified. Business Impact: Regulatory compliance streamlines procurement and audit trails while supporting safer product usage. Application: Industries with strict certification requirements like food & beverage processing, metal fabrication, and life sciences equipment. Feature: Compact dimensions and weight. Business Impact: Easier panel mounting, reduced enclosure footprint, and simpler handling during installation. Application: Space-constrained control cabinets and retrofits in aging lines where existing transformers must be replaced with minimal downtime.
Get a Quick Quote for a Eaton C0500E2A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E2A?
Enquire Now
FAQs
When mounting the C0500E2A in a control panel, consider its compact dimensions (6.11 in L x 5.14 in H x 5.25 in W) and molded-in terminals which simplify wiring and reduce vibration-induced wear. Ensure adequate ventilation for 55°C ambient tolerance and secure mounting to minimize movement. The transformer supports various primary voltages, allowing flexible integration with diverse panel power rails and minimizing the need for multiple parts.
Key specs include a 500 VA rating with primary voltages of 220x440 V, 230x460 V, and 240x480 V, and a secondary of 120/115/110 V. It operates at 50/60 Hz, has a 55°C temperature rating, and uses copper windings with an epoxy-encapsulated core designed for durability and efficiency in industrial environments.
Yes. The C0500E2A is UL Listed, cUL Certified, and CSA Certified, with RoHS compliance. These certifications help meet regulatory requirements in regulated industries such as food and beverage, life sciences, and metal fabrication, while the RoHS compliance supports environmental and sustainability standards.
The transformer carries UL Listed, cUL Certified, and CSA Certified marks and RoHS compliance. It also features a 130°C insulation system, epoxy encapsulation, and molded-in terminals, all of which contribute to safer installation, better reliability under heat, and regulatory alignment across global markets.
The epoxy-encapsulated construction and molded-in terminals reduce field maintenance by improving durability and resistance to dust, moisture, and vibration. The copper windings and efficient core design lower energy losses, potentially reducing operating costs. A 1-year warranty from installation (or 18 months from shipment) provides added protection against early-life failures, supporting a favorable total cost of ownership.
