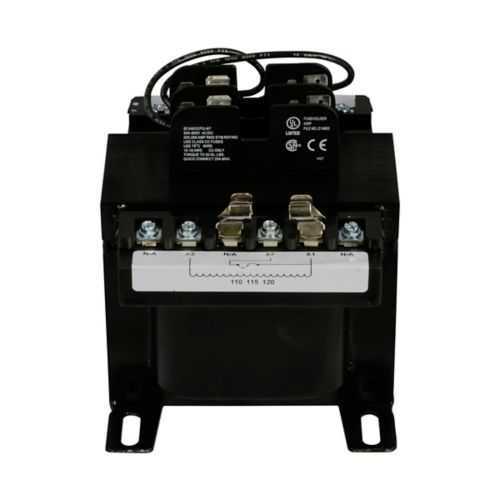

Eaton C0500E3A Industrial Control Transformer - UL Listed
Part Number: C0500E3AFB
Quick Summary
Eaton Type MTE industrial control transformer converts 208/277 V to 120 V for control circuits in industrial panels. When space is tight and reliability matters, choosing a transformer with durable construction and straightforward wiring minimizes downtime. UL Listed, cUL Certified and CSA Certified provide robust electrical safety and cross-border compliance. RoHS compliant design and a detailed specification sheet support compliant procurement and streamlined installation for modern automation environments.
Product Information
Extended Description
C0500E3AFB Eaton: Eaton Type MTE industrial control transformer, pv: 208/277v, taps: none, sv: 120v, 55°c, 500 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E3AFB
UPC
786680550904
Product Length/Depth
6.11 in
Product Height
6.515 in
Product Width
5.25 in
Product Weight
17.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed cUL Certified CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/277 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Epoxy-encapsulated construction with laminations of high-quality silicon steel minimizes core losses and improves efficiency, even in demanding 50/60 Hz environments. This translates to cooler operation, longer life, and reduced energy waste in continuous panel duties. Copper windings enhance conductivity and thermal performance, sustaining stable voltages to relays and PLC inputs while maintaining reliable operation under load surges. Primary voltage is 208/277 V with a 120 V secondary and a 500 VA rating, delivering sufficient power for typical control circuits without overdimensioning the panel. Molded-in terminals simplify wiring, increase vibration resistance, and support durable field connections in busy industrial cabinets. The epoxy encapsulation and rugged enclosure support rugged installation in harsh environments, while RoHS compliance and UL/cUL/CSA certifications provide regulatory assurance and peace of mind for multi-region projects. With a compact footprint (approximately 6.11 in × 5.25 in × 5.14 in) and a weight around 17.4 lb, it fits standard control panels and withstands routine maintenance without frequent reconfiguration. This transformer is designed for reliability, easy troubleshooting, and predictable performance across a range of industrial applications.
Get a Quick Quote for a Eaton C0500E3AFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E3AFB?
Enquire Now
FAQs
The C0500E3A is designed for easy panel installation with molded-in terminals for rugged wiring. Its epoxy-encapsulated construction provides good vibration resistance, while the compact footprint fits typical control enclosures. When mounting, ensure proper clearance for cooling and access to terminations for maintenance and testing.
This transformer delivers 500 VA with a 208/277 V primary and a 120 V secondary. It operates at 50/60 Hz and uses copper windings for high conductivity. The insulation system is rated to 130°C, supporting reliable operation in harsh environments.
Yes. Epoxy encapsulation, silicon steel laminations, a 130°C insulation system, and molded-in terminals contribute to durability and core efficiency. RoHS compliance and UL/cUL/CSA certifications further ensure suitability for regulated industrial applications in challenging settings.
The C0500E3A is UL Listed, cUL Certified, and CSA Certified, with RoHS compliance. These certifications support safe, compliant installation across North American and international facilities, helping meet regulatory requirements for panel assemblies.
With robust construction, copper windings, and molded-in terminals, downtime is reduced due to fewer wiring issues and improved reliability. The one-year warranty (or longer where applicable) and high core efficiency contribute to lower lifecycle costs and faster ROI through reduced replacement frequency and maintenance needs.
