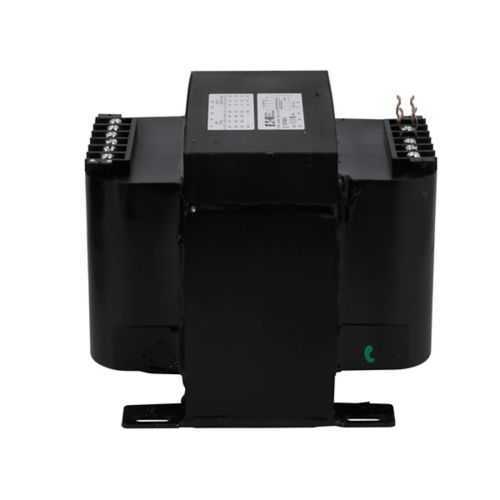

Eaton C0500E5E Industrial Control Transformer - UL Listed
Part Number: C0500E5E
Quick Summary
The Eaton C0500E5E industrial control transformer provides reliable control power for automation panels and machine controls. In retrofit and new-build setups, space constraints, heat, and wiring complexity can complicate transformer selection. This unit carries UL Listed, cUL Certified, and CSA Certified marks, plus RoHS compliance, delivering regulatory assurance and environmental compliance across diverse markets. With a 500 VA rating, copper windings, epoxy encapsulation, and a 55°C insulation system, it offers durable performance that lowers maintenance and improves overall system uptime. The compact footprint and molded-in terminals support straightforward installation and long-term service in demanding environments.
Product Information
Extended Description
C0500E5E Eaton: Eaton Type MTE industrial control transformer, pv: 200/220/440v, 208/230/460v, 240/480v, taps: none, sv: 23/110v, 24/115v, 25/120v, 55°c, 500 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E5E
UPC
786680420467
Product Length/Depth
6.89 in
Product Height
4.764 in
Product Width
5.236 in
Product Weight
23.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed cUL Certified CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
200/220/440 V, 208/230/460 V, 240/480 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
23/110 V, 24/115 V, 25/120 V
Feature: Flexible voltage options. Benefit: Reduces the need for adaptors and simplifies wiring across global facilities, enabling quick panel integration for machine control lines. Application: OEM equipment and controlled automation panels benefit from immediate compatibility with 200/220/440 V and 208/230/460 V primary feeds, plus 240/480 V where required. Feature: 500 VA rating with 23/110, 24/115, 25/120 V secondary. Benefit: Adequate control power for relays, PLC inputs, and signal conditioning without oversizing components, lowering footprint and cost. Application: Panel boards and control racks in robotics and process automation benefit from compact, reliable power delivery. Feature: Copper windings and epoxy encapsulation. Benefit: Improved thermal performance, durability, and resistance to vibration and moisture, reducing maintenance cycles. Application: Harsh factory floors and enclosures where reliability is critical. Feature: 55°C insulation system and silicon steel laminations. Benefit: Maintains performance in typical plant temperatures with efficient core operation, supporting energy efficiency and long service life. Application: Continuous operation in continuous-process lines. Feature: Molded-in terminals and RoHS compliance. Benefit: Easier wiring, enhanced durability, and regulatory peace of mind for global sourcing. Application: Panel assembly with tight enclosure spaces and strict RoHS requirements. Warranty and certifications are clearly defined: UL Listed, cUL Certified, CSA Certified, RoHS compliant, and a one-year (or 18 months from shipment) warranty, aiding procurement and maintenance planning.
Get a Quick Quote for a Eaton C0500E5E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E5E?
Enquire Now
FAQs
Install the transformer in a standard panel with adequate clearance for heat dissipation. Use the molded-in terminals for wiring to reduce stress on leads and improve durability. Route primary leads to the 200/220/440 V or 208/230/460 V supply and connect the selected secondary 23/110, 24/115, or 25/120 V outputs to control circuits, observing the 55°C insulation rating for ambient temperatures.
Primary voltages supported: 200/220/440 V, 208/230/460 V, and 240/480 V. Secondary voltages available: 23/110 V, 24/115 V, and 25/120 V. This flexibility enables compatibility with multiple regional power systems and control circuits without custom windings.
Yes. It features epoxy-encapsulated construction, copper windings, and a 55°C insulation system, designed for reliability in typical factory temperatures. The unit is RoHS compliant and UL/cUL/CSA certified, supporting safe operation and regulatory compliance in demanding manufacturing environments.
The C0500E5E is UL Listed, cUL Certified, and CSA Certified, with RoHS compliance. These certifications help satisfy safety and environmental requirements for global manufacturing and integration into compliant control panels and OEM equipment.
The transformer includes a one-year warranty from installation or 18 months from shipment. With copper windings, epoxy encapsulation, and molded-in terminals, maintenance needs are minimized, translating to lower lifecycle costs and reduced downtime for continuous production lines.
