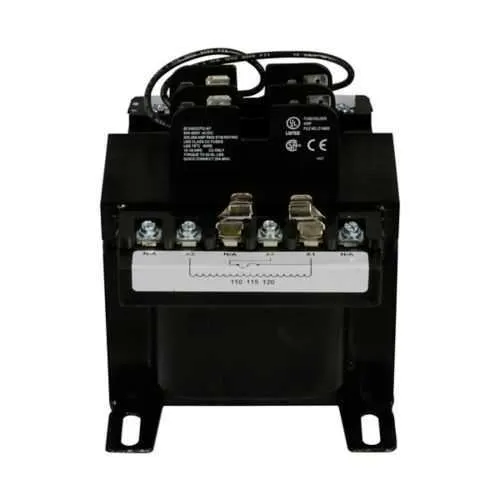

Eaton C0500E5EFB Industrial Control Transformer - UL Listed
Part Number: C0500E5EFB
Quick Summary
Eaton Type MTE industrial control transformer powers control circuits in automation panels, delivering reliable voltage conversion for industrial equipment. Engineers often wrestle with voltage inconsistency, cramped control cabinets, and long lead times for compatible transformers. This model addresses those pain points with a compact footprint, epoxy encapsulation, and a copper-wound core that minimizes losses. It carries UL Listed, CSA Certified, and cUL Certified marks along with RoHS compliance, reinforcing safety, traceability, and environmental responsibility in regulated facilities. The 50/60 Hz operating range and 55°C insulation rating ensure reliable performance in demanding environments. For power management and electrical distribution strategies, its 500 VA rating and multi-voltage options simplify procurement and maintenance, delivering tangible uptime and cost savings.
Product Information
Extended Description
C0500E5EFB Eaton: Eaton Type MTE industrial control transformer, pv: 200/220/440v, 208/230/460v, 240/480v, taps: none, sv: 23/110v, 24/115v, 25/120v, 55°c, 500 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E5EFB
UPC
786680421860
Product Length/Depth
6.96 in
Product Height
5.93 in
Product Width
5.25 in
Product Weight
29.3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified cUL Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
200/220/440 V, 208/230/460 V, 240/480 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
23/110 V, 24/115 V, 25/120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature: 500 VA volt-ampere rating and copper windings → Business Impact: Supports stable control power for medium-load automation tasks, improving reliability and reducing nuisance trips → Application: Control panels and machine interfaces in manufacturing lines. Feature: Primary voltages of 200/220/440 V and 208/230/460 V with secondary options of 23/110, 24/115, 25/120 V → Business Impact: Enables global installations and inventory consolidation by supporting multiple voltages from a single device → Application: Worldwide automation projects and mixed-voltage facilities. Feature: Epoxy-encapsulated construction with laminated silicon steel laminations → Business Impact: Minimized core losses and enhanced durability under vibration, boosting energy efficiency and service life → Application: Harsh industrial environments with frequent starts and stops. Feature: Molded-in terminals and factory-mounted two-pole primary fuse block for non-rejection fuses → Business Impact: Faster, safer installation and easier field maintenance with reduced fault-prone connections → Application: Rail, OEM equipment, and panel-building where dependable terminations matter. Feature: 55°C temperature rating and 130°C insulation system → Business Impact: Reliable operation in elevated temperatures, lowering derating risk in hot plant spaces → Application: High-ambient environments such as stamped metal shops and heavy manufacturing. Feature: RoHS compliant with UL Listed, CSA Certified, and cUL Certified → Business Impact: Simplified regulatory compliance and risk management across regulated facilities → Application: Compliance-driven projects across North America and Europe.
Get a Quick Quote for a Eaton C0500E5EFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E5EFB?
Enquire Now
FAQs
Consider space within the enclosure, mounting orientation, and access to molded-in terminals. The unit measures 6.96 in (L) × 5.93 in (H) × 5.25 in (W) and weighs 29.3 lb, with a factory-mounted two-pole primary fuse block that accepts non-rejection fuses. Plan for proper ventilation and clearance per safety guidelines, and verify the panel can accommodate both primary and secondary voltage options to minimize wiring changes during commissioning.
The C0500E5EFB provides a 500 VA rating with primary voltages of 200/220/440 V or 208/230/460 V and secondary voltages of 23/110, 24/115, or 25/120 V. This range supports diverse control circuits and machine controls, enabling single-supply versatility across global installations while maintaining stable voltage to PLCs and relays, reducing the need for additional regulation equipment.
Yes. Its MTE design, epoxy encapsulation, copper windings, and 50/60 Hz compatibility make it well-suited for automation panels, motor control centers, and PLC input power supplies. The molded-in terminals and the factory-mounted fuse block simplify wiring and improve vibration resistance, while the 55°C rating supports operation in moderately hot plant spaces without excessive derating.
The transformer is UL Listed, CSA Certified, and cUL Certified, with RoHS compliance. These certifications verify safety and reliability for North American installations and help with regulatory documentation. The 130°C insulation system and 55°C operating rating further support safe operation in typical industrial environments.
The combination of molded-in terminations, a durable epoxy-encapsulated core, and a factory-installed fuse block reduces installation time and field wiring errors, lowering maintenance downtime. With a robust 500 VA rating and high-quality copper windings, expected service life is extended, contributing to lower spare-part costs and improved uptime in automation lines.
