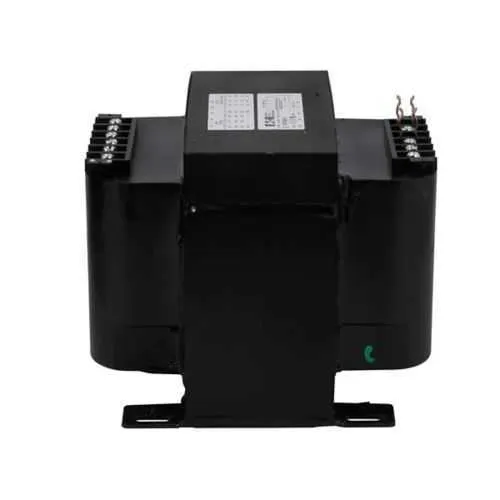

Eaton C0500E6U Industrial Control Transformer - UL Listed
Part Number: C0500E6U
Quick Summary
Eaton Type MTE industrial control transformer provides reliable, low-voltage control power for panels and automation equipment. This model addresses a common pain point—balancing compact form with high performance in harsh environments. It carries UL Listed, CSA Certified and cUL Certified marks and RoHS compliance to streamline sourcing and compliance. The epoxy-encapsulated construction and molded-in terminals minimize field wiring, while a 500 VA rating supports a wide range of control circuits. Designed for 50/60 Hz operation with multiple primary voltages, it adapts to global installations without sacrificing durability or efficiency. This combination translates to lower maintenance costs and smoother panel integration.
Product Information
Extended Description
C0500E6U Eaton: Eaton Type MTE industrial control transformer, pv: 240/416/480/600v, 230/400/460/575v, 220/380/440/550v, 208/500v, cu magnet wire, taps: none, sv: 99/120/130v, 95/115/125v, 91/110/120v, 85/100/110v, 55°c, 500 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E6U
UPC
786680019159
Product Length/Depth
7.008 in
Product Height
4.449 in
Product Width
5.236 in
Product Weight
25.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified cUL Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V
500 VA rating translates to dependable control power for relays, solenoids, and PLC inputs, reducing voltage drop and nuisance trips in demanding industrial panels. Copper windings and epoxy encapsulation minimize losses and temperature rise, delivering stable voltages under load and across environments. Molded-in terminals improve vibration resistance and simplify wiring during installation, cutting assembly time and field errors. The broad primary voltage options—208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V—enable seamless global integration without stocking multiple SKUs. Secondary voltages of 99/120/130 V, 95/115/125 V, 91/110/120 V, and 85/100/110 V support diverse control circuits while preserving voltage accuracy. The absence of taps reduces wiring complexity, and the 55°C ambient rating with 130°C insulation ensures reliable operation in enclosed or space-limited installations. RoHS compliance and multi-certification support regulatory alignment and easy procurement, while the built-in durability reduces ongoing maintenance costs and downtime in production environments.
Get a Quick Quote for a Eaton C0500E6U
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E6U?
Enquire Now
FAQs
The C0500E6U is designed for 50/60 Hz operation and offers multiple primary voltage options including 208/500 V, 240/416/480/600 V, and 220/380/440/550 V families. When installing, verify enclosure clearance (product footprint approximately 7.008 in length, 5.236 in width, 4.449 in height) and mount on secure surfaces. Use molded-in terminals to streamline wiring and reduce terminal damage during service. Ensure proper ventilation to maintain insulation temperature ratings.
A 500 VA rating supports coil loads, relays, and PLC input circuitry with voltage stability under load. In practice, you’ll experience reliable operation of control circuits without significant voltage drop during peak switching, contributing to smoother machine starts and fewer control-related faults. This rating also provides headroom for marginal loads and future panel expansion.
Tap size is None, so the transformer has fixed secondary ratios for each primary voltage option. This simplifies wiring and reduces the risk of mis-wiring. If your application requires alternate voltages or adjustable taps, select a model with taps or a different transformer rating to match your system impedance and load profile.
The C0500E6U carries UL Listed, cUL Certified, and CSA Certified marks, along with RoHS compliance. These certifications support regulatory approvals, safer operation, and easier procurement across industries such as manufacturing, material handling, and process automation.
Warranty follows Eaton’s policy 25-000: one year from the date of installation or eighteen months from shipment, whichever occurs first. Eaton provides access to technical resources, datasheets, and replacement parts, ensuring ongoing support for installation, troubleshooting, and performance verification in the field.
