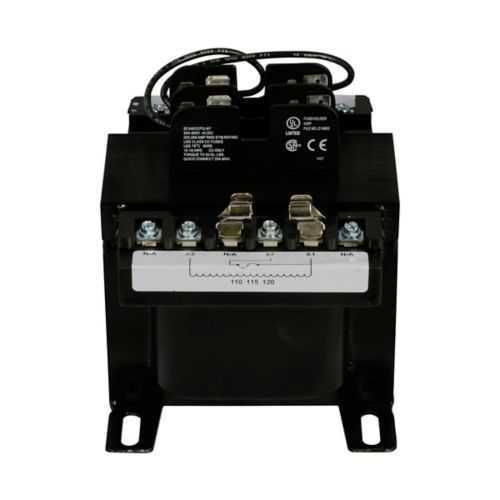

Eaton C0500E6UFB industrial control transformer - UL/CSA
Part Number: C0500E6UFB
Quick Summary
Eaton Type MTE industrial control transformer provides safe voltage reduction for control circuits in automation panels. However, many buyers contend with voltage compatibility gaps and unpredictable performance in harsh industrial environments. This unit carries CSA Certified, cUL Certified, and UL Listed marks for robust regulatory compliance and safety in plant environments. Epoxy encapsulation and copper windings minimize core losses and ensure reliable current transfer, even under continuous duty. With a 500 VA rating and a 55°C insulation system, it supports 208/500 V, 230/400/460/575 V, 240/416/480/600 V primary ranges and 99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V secondary options, reducing spare parts and stocking needs. Designed for 55°C operation, molded-in terminals, and a compact footprint, it simplifies installation for OEMs and panel builders.
Product Information
Extended Description
C0500E6UFB Eaton: Eaton Type MTE industrial control transformer, pv: 240/416/480/600v, 230/400/460/575v, 220/380/440/550v, 208/500v, taps: none, sv: 99/120/130v, 95/115/125v, 91/110/120v, 85/100/110v, 55°c, 500 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0500E6UFB
UPC
786680019197
Product Length/Depth
7.008 in
Product Height
5.827 in
Product Width
5.236 in
Product Weight
25.8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified cUL Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/500 V, 220/380/440/550 V, 230/400/460/575 V, 240/416/480/600 V
Temperature rating
55°C
Volt ampere rating
500 VA
Secondary voltage
99/120/130 V, 95/115/125 V, 91/110/120 V, 85/100/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Copper windings with epoxy encapsulation deliver high efficiency and rugged durability, minimizing copper losses and heat buildup for longer service life in continuous-duty control circuits. This construction translates to more reliable startups and reduced maintenance in industrial automation panels and machinery centers exposed to dust, vibration, or temperature swings. The molded-in terminals and factory-mounted two-pole primary fuse block streamline wiring, reduce field wiring errors, and support safer, faster commissioning in space-constrained panels. With broad primary voltage coverage and multiple secondary outputs, you can reduce part numbers and spare parts inventory while maintaining a single, adaptable device across a family of equipment. A compact footprint (7.008 in L x 5.827 in H x 5.236 in W) and 25.8 lb weight simplify mounting in tight control cabinets and OEM enclosures. Compliance with RoHS, a 130°C insulation system, and 50/60 Hz operation ensure regulatory alignment and reliable performance in diverse factories. The Eaton warranty (one year from installation or 18 months from shipment) provides tangible risk mitigation for procurement and maintenance budgets. Proactively designed for OEMs, machine builders, and service teams, this transformer supports faster onboarding, reduced spare part catalogs, and predictable lifetime cost of ownership.
Get a Quick Quote for a Eaton C0500E6UFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0500E6UFB?
Enquire Now
FAQs
The C0500E6UFB features molded-in terminals and a factory-mounted two-pole primary fuse block, simplifying wiring and improving safety. Its compact footprint fits standard control cabinets, reducing enclosure depth and facilitating panel layout. When planning installation, allow for standard clearance around the transformer for adequate heat dissipation and routine inspection access.
Primary voltages cover 208/500 V, 230/400/460/575 V, and 240/416/480/600 V, while secondary voltages include 99/120/130 V, 95/115/125 V, 91/110/120 V, and 85/100/110 V. This broad compatibility reduces the need for multiple part numbers across product families, streamlining procurement and spare-part strategies while supporting diverse control circuits.
Yes. The transformer uses epoxy-encapsulated laminations and copper windings designed for reliability in demanding settings. It operates at a 55°C temperature rating and complies with RoHS, with certifications from CSA, cUL, and UL Listed to support safe operation in plant environments.
The C0500E6UFB is CSA Certified, cUL Certified, and UL Listed. These certifications confirm adherence to recognized safety and performance standards, facilitating regulatory approvals, supplier qualification, and safer integration into industrial equipment, panels, and OEM systems across multiple regions.
Eaton provides a warranty policy of one year from installation or eighteen months from shipment, whichever occurs first. This coverage supports qualification, service planning, and lifecycle cost management, with access to Eaton support for technical guidance, replacement parts, and field service coordination as needed.
