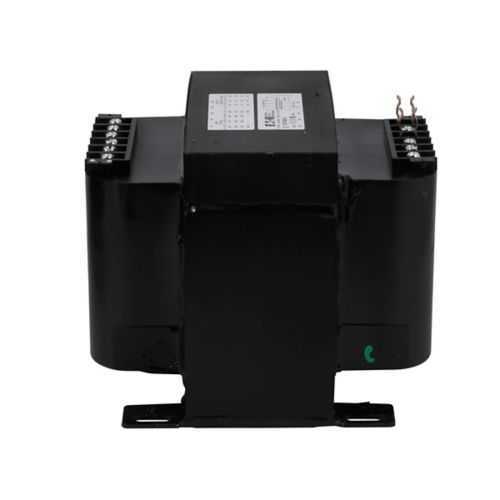

Eaton C0750E2A Industrial Control Transformer - UL Listed
Part Number: C0750E2A
Quick Summary
The Eaton C0750E2A industrial control transformer provides reliable low-voltage control power for automation equipment in manufacturing and process environments. Engineers often wrestle with mismatched insulation, thermal limits, and harsh ambient temperatures that shorten transformer life. This model carries UL-listed, cUL and CSA certifications and RoHS compliance, reinforcing safety, interchangeability, and regulatory alignment. Its epoxy encapsulation, copper windings, and molded-in terminals support durable, vibration-resistant installation in panel arrays. The 750 VA rating and 55°C insulation rating help you size control power accurately while ensuring reliable operation and regulatory compatibility. Designed for 50/60 Hz operation with heat-resistant insulation, it is well-suited for PLC input circuits, relays, and motor-control panels. This combination of safety certifications, robust construction, and standard availability supports faster procurement and reduced project risk.
Product Information
Extended Description
C0750E2A Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0750E2A
UPC
786680422706
Product Length/Depth
7.61 in
Product Height
5.14 in
Product Width
5.25 in
Product Weight
26.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
750 VA
Secondary voltage
120/115/110 V
Epoxy encapsulation and high-quality silicon steel laminations deliver lower core losses and durable performance. Business impact: improved efficiency, reduced heat, and longer transformer life in 50/60 Hz operations. Application: ideal for factory panels and compact control enclosures where reliability is critical. Copper windings with molded-in terminals provide robust, low-resistance connections. Business impact: lower voltage drop, fewer field terminations, and faster commissioning. Application: PLC power rails, relays, and motor-control cabinets in automation systems. 55°C insulation rating with RoHS compliance supports safe operation in warm environments and regulatory alignment with sustainability goals. Application: harsh production lines and regulated facilities requiring clean, compliant power distribution. 750 VA power rating enables multiple auxiliaries, reducing the need for additional transformers. Business impact: saves space, lowers parts counts, and improves overall panel cost efficiency. Application: panel power for PLCs, relays, timers, and small drives across manufacturing lines. Epoxy encapsulation, molded-in terminals, and silicon steel laminations deliver rugged, vibration-resistant installations with minimal maintenance. Application: panel-mounted power for automated equipment in OEM assemblies. Broad voltage compatibility and robust construction simplify sourcing and service across global sites. Application: cross-site automation deployments with consistent control power.
Get a Quick Quote for a Eaton C0750E2A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0750E2A?
Enquire Now
FAQs
Install the C0750E2A using molded-in terminals and copper windings for a secure, vibration-resistant connection. Epoxy encapsulation helps protect windings in harsh environments, while compact dimensions fit standard enclosures. Ensure proper mounting to maintain clearance for cooling and to minimize heat buildup at 55°C insulation. Verify 50/60 Hz compatibility and appropriate panel wiring.
Primary voltages are selectable as 220 x 440 V, 230 x 460 V, or 240 x 480 V, delivering 750 VA with a secondary of 120/115/110 V. Temperature rating is 55°C, operating at 50/60 Hz. Copper windings and epoxy encapsulation support high reliability, while molded-in terminals ease field connections and reduce risk of loose wire terminations.
Yes. The C0750E2A is RoHS compliant and carries multiple industry certifications to support safety and regulatory requirements, including UL Listed, cUL Certified, and CSA Certified. This combination helps ensure compatibility with global standards, simplifies procurement, and reduces audit findings in regulated environments. RoHS reduces hazardous waste exposure and supports sustainability programs.
In factory automation, the C0750E2A is ideal for supplying control power to PLCs, relays, contactors, and motor starters within control panels. The 750 VA rating accommodates multiple auxiliaries, while Molded-in terminals and copper windings simplify installation and maintenance. Its 55°C insulation and RoHS compliance support reliable operation in temperature-variant, space-constrained environments.
The product warranty follows Eaton's policy: one year from installation or eighteen months from shipment, whichever occurs first. This protection reduces risk during initial commissioning and aligns with typical project timelines. Coupled with high reliability and durable construction, the C0750E2A helps minimize downtime costs and extend service life, delivering a favorable total cost of ownership in automation projects.
