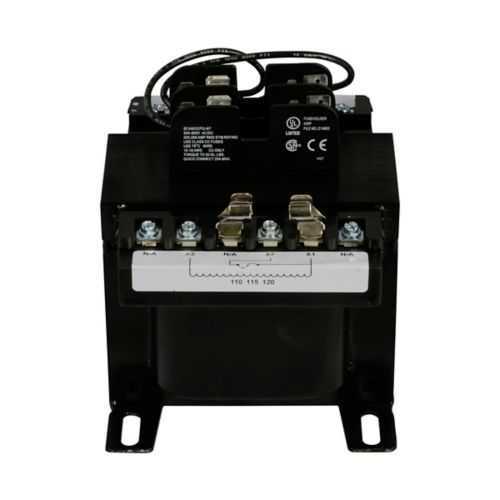

Eaton C0750E3AFB Industrial Control Transformer - UL Listed
Part Number: C0750E3AFB
Quick Summary
Eaton C0750E3AFB industrial control transformer provides 750 VA for control circuits in industrial panels. Design teams often struggle with bulky transformers that waste panel space and complicate wiring. This unit is RoHS compliant and UL Listed, with cUL and CSA certifications to support regulatory compliance. Epoxy encapsulation, molded-in terminals, and copper windings deliver durable performance and quicker, safer installations in power management and distribution systems. The device accepts 50/60 Hz operation and features a factory-mounted two-pole primary fuse block, simplifying wiring and reducing field labor for safer, more reliable control panel assemblies.
Product Information
Extended Description
C0750E3AFB Eaton: Eaton Type MTE industrial control transformer, pv: 208/277v, taps: none, sv: 120v, 55°c, 750 va , cu magnet wire
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C0750E3AFB
UPC
786680003448
Product Length/Depth
7.61 in
Product Height
6.52 in
Product Width
5.25 in
Product Weight
26.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified CSA Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
208/277 V
Temperature rating
55°C
Volt ampere rating
750 VA
Secondary voltage
120 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
The 750 VA rating paired with a 208/277 V primary and 120 V secondary output provides a compact, ready-to-wire solution for control circuits in automation panels, reducing cabinet footprint and total project cost. Copper windings and an epoxy-encapsulated lamination stack deliver improved thermal performance, lower core losses, and enhanced reliability in harsh industrial environments, translating to longer service life and less maintenance downtime. A molded-in terminal design and 130°C insulation system support durable installations with straightforward wiring, while 50/60 Hz compatibility ensures broad panel integration across facilities. The factory-mounted two-pole primary fuse block adds a safety-positive fuse strategy, accelerating commissioning and minimizing wiring errors during machine startup. RoHS compliance and triple certifications (UL Listed, cUL, CSA) provide regulatory confidence for global deployments. These features collectively reduce lifecycle costs and improve panel performance in power management and distribution applications.
Get a Quick Quote for a Eaton C0750E3AFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0750E3AFB?
Enquire Now
FAQs
The C0750E3AFB uses a primary voltage of 208/277 V and provides a 120 V secondary output, suitable for control circuits in standard industrial panels.
Yes. It includes a factory-mounted two-pole primary fuse block designed for non-rejection type fuses, simplifying wiring and enhancing fault isolation.
Yes, the unit is RoHS compliant and carries cUL Certified, CSA Certified, and UL Listed certifications, supporting regulatory compliance in multiple markets.
The transformer is rated for 750 VA. Dimensions are 7.61 inches (L) by 6.52 inches (H) by 5.25 inches (W), and it weighs approximately 26.5 lb.
Consider its epoxy encapsulation, copper windings, molded-in terminals, and the factory-mounted fuse block for quick wiring. It supports 50/60 Hz operation and 130°C insulation, making it suitable for rugged environments in industrial automation and distribution systems.
