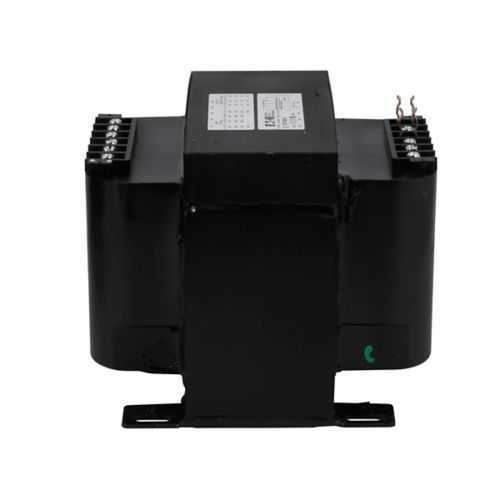

Eaton C1000E2A Industrial Control Transformer - 120/115/110V
Part Number: C1000E2A
Quick Summary
The Eaton C1000E2A industrial control transformer is a dependable power source for control circuits in automation panels. Engineers often contend with voltage stability, core losses, and crowded spaces in compact control cabinets. It carries cUL Listed, UL Listed, and CSA certifications with RoHS compliance, designed for 50/60 Hz operation and a 130°C insulation system. The epoxy-encapsulated design and silicon steel laminations optimize performance while keeping a practical footprint, enabling easier installation and longer service life. With a 1000 VA rating and compatible primary voltages, it delivers predictable control power, reduces downtime, and supports scalable automation deployments.
Product Information
Extended Description
C1000E2A Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 1000 va
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C1000E2A
UPC
786680125508
Product Length/Depth
6.457 in
Product Height
5.669 in
Product Width
6.732 in
Product Weight
29.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified UL Listed CSA Certified
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
1000 VA
Secondary voltage
120/115/110 V
Eaton Specification Sheet - C1000E2A
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 1000 VA power rating provides a robust source for control circuits, reducing the need for multiple devices and improving panel reliability. Business Impact: Simplified wiring, lower BOM cost, and enhanced uptime in machine automation. Application: Control panels for manufacturing lines and automated equipment. Feature: Primary voltages 220 x 440 V, 230 x 460 V, 240 x 480 V with secondary 120/115/110 V. Business Impact: Flexible sourcing from standard mains while delivering consistent low-voltage control power. Application: Machines and conveyors operating from varied utility feeds. Feature: Copper windings and silicon steel laminations. Business Impact: Higher efficiency, reduced copper loss, and improved thermal performance leading to energy savings over the service life. Application: Continuous operation in demanding environments. Feature: Epoxy encapsulated construction with molded-in terminals. Business Impact: Superior moisture resistance, vibration tolerance, and durable field installation that withstands harsh industrial settings. Application: Rugged industrial control panels and enclosures. Feature: RoHS compliant with cUL, UL, and CSA certifications. Business Impact: Smooth regulatory compliance and safer procurement across global facilities. Application: Aerospace, automotive, and general manufacturing environments. Feature: 55°C temperature rating, 50/60 Hz operation, 130°C insulation system. Business Impact: Reliable performance in warm environments and compatibility with standard industrial electrical systems. Application: Heavy-duty automation and process equipment.
Get a Quick Quote for a Eaton C1000E2A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C1000E2A?
Enquire Now
FAQs
For best results, plan a dedicated space with adequate clearance around the transformer for airflow and heat dissipation. Use the molded-in terminals to simplify wiring, verify correct primary voltage selection (220/440, 230/460, or 240/480), and secure the unit to a rigid surface to minimize vibration and electrical noise. The epoxy encapsulation provides robustness in rugged environments, reducing field failures.
Yes, the C1000E2A is designed for 50/60 Hz operation. It supports primary voltages of 220 x 440 V, 230 x 460 V, and 240 x 480 V with a secondary output of 120/115/110 V, which makes it versatile for multinational installations and varied utility feeds in automation and control applications.
The unit is RoHS compliant and UL/CSA certified, with cUL Listing as applicable. These certifications ensure compliance with global safety and environmental standards, reducing risk during procurement and enabling smoother commissioning in regulated industrial facilities.
With a compact footprint (approximately 6.46 in x 6.73 in x 5.67 in) and a weight near 29.5 lb, the transformer delivers 1000 VA in a space-efficient package. Copper windings and premium laminations minimize core losses, while molded-in terminals and epoxy encapsulation enhance durability, supporting reliable operation in tight enclosures.
The 1000 VA rating supports a single, scalable power solution for control circuits, reducing BOM complexity and downtime. Its rugged construction and long insulation life (130°C) lower maintenance costs, while RoHS and safety certifications minimize regulatory risk and replacement cycles in high-demand automation environments.
