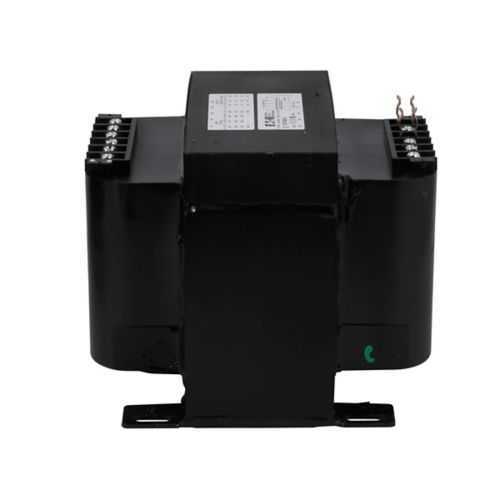

Eaton C1000E2AFB Industrial Control Transformer - UL Listed
Part Number: C1000E2AFB
Quick Summary
The Eaton C1000E2AFB industrial control transformer powers control circuits in machine panels and control enclosures. Upgrading legacy panels often introduces space constraints and voltage mismatches that drive wiring errors and unplanned downtime. This model carries UL Listed, cUL Certified, and CSA Certified marks with RoHS compliance, aligning safety, regulatory, and environmental standards. Epoxy encapsulation, high-quality silicon steel laminations for core efficiency, and a 55°C insulation system support durable operation in harsh environments, while molded-in terminals and a factory-mounted two-pole primary fuse block simplify installation and service. With a 1000 VA rating and copper windings, it provides dependable power conversion for control circuits in contemporary industrial applications.
Product Information
Extended Description
C1000E2AFB Eaton: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 1000 va, cu magnet wire.
Product Name
Eaton Type MTE industrial control transformer
Catalog Number
C1000E2AFB
UPC
786680125522
Product Length/Depth
6.457 in
Product Height
7.047 in
Product Width
6.732 in
Product Weight
10.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
cUL Certified CSA Certified UL Listed
Catalog Notes
Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
Coil material
Copper windings
Design
MTE
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
55°C
Volt ampere rating
1000 VA
Secondary voltage
120/115/110 V
Modification 1
Factory-mounted two-pole primary fuse block for non-rejection type fuses
Special features
Primary fuse block
Feature → Copper windings; Business Impact → Reduced copper losses and improved efficiency under load; Application → Machine control panels. Copper windings provide reliable current handling with low heat generation, extending service life in continuous operation and minimizing energy waste in automated lines. Feature → 1000 VA rating; Business Impact → Ample headroom for standard control loads; Application → Industrial automation panels. This rating supports typical control circuits without overdesigning the system, enabling predictable performance and simpler breaker coordination. Feature → Factory-mounted two-pole primary fuse block; Business Impact → Enhanced protection and faster serviceability; Application → Control panel installations. Integrated protection reduces wiring errors and accelerates commissioning while meeting safety standards. Feature → Epoxy encapsulation; Business Impact → Rugged, moisture-resistant construction; Application → Harsh manufacturing environments. Encapsulation stabilizes windings and laminations for stable performance in dusty, humid, or vibration-prone spaces. Feature → Molded-in terminals; Business Impact → Durable, vibration-tolerant connections; Application → Dense panel assemblies. Molded terminals simplify wiring and improve reliability during field installation and routine maintenance. RoHS compliance and multi-certification (UL, cUL, CSA) reinforce regulatory alignment and environmental responsibility across industrial deployments.
Get a Quick Quote for a Eaton C1000E2AFB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C1000E2AFB?
Enquire Now
FAQs
When installing the C1000E2AFB, ensure panel space accommodates its 6.457 in length, 7.047 in height, and 6.732 in width, with adequate clearance for heat dissipation. Take advantage of the molded-in terminals and the factory-mounted two-pole primary fuse block to simplify wiring, protection coordination, and compliance with safety standards.
The unit supports primary voltages of 220 x 440 V, 230 x 460 V, and 240 x 480 V, with a secondary voltage of 120/115/110 V and a continuous 1000 VA rating. This combination provides robust control circuit power for typical automation panels while maintaining efficiency and space efficiency in compact enclosures.
Yes, the transformer is RoHS compliant. It holds UL Listed, cUL Certified, and CSA Certified marks, ensuring electrical safety, regulatory compliance, and suitability for use in North American industrial environments. These certifications support compliant panel builds and reduce compliance risk in systems integrations.
The factory-mounted two-pole primary fuse block provides built-in protection for the primary winding, simplifying wiring and reducing the number of discrete components required in the panel. This design enhances safety, accelerates commissioning, and improves maintenance efficiency by centralizing protection in a compact, molded-in terminal assembly.
With epoxy encapsulation and copper windings, the C1000E2AFB offers rugged reliability, resistance to moisture and vibration, and low maintenance needs. The integrated fuse block and molded-in terminals reduce field wiring wear, while the 55°C insulation rating supports continuous operation in warmer facilities. Overall, these features translate to fewer faults, less downtime, and lower life-cycle costs.
