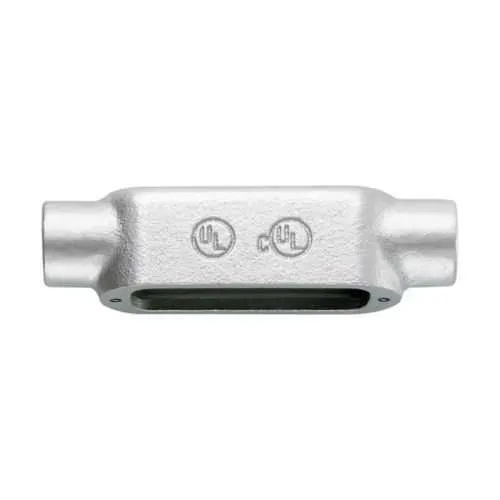

Eaton C150M Condulet Form 5 Conduit Outlet Body - NEC/CEC
Part Number: C150M
Quick Summary
The Eaton C150M Condulet Form 5 conduit outlet body provides rugged, easy-to-install conduit termination for industrial wiring installations. Engineers often face alignment challenges, space constraints, and corrosion risk during panel builds, and this design mitigates those issues. It carries NEC and CEC standards, UL certification for Form 5 condulet bodies, and is rated for Ordinary/Non-Hazardous locations. The combination of malleable iron construction, built-in rollers, and a 1-1/2 inch trade size delivers reliable performance and long service life. This offers tangible business value by reducing installation time, improving regulatory compliance, and supporting standardized, readily available conduit fittings for cost-effective maintenance.
Product Information
Extended Description
C150M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, C shape, Built-in rollers, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
C150M
UPC
782274756370
Product Length/Depth
9 in
Product Height
2.83 in
Product Width
2.6 in
Product Weight
3.68 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
C
Trade size
1-1/2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds C150M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - C150M
Feature: Malleable iron body with built-in rollers provides rugged durability and smooth conduit entry. Business Impact: Enhances impact resistance and reduces misalignment during assembly, lowering rework and field adjustments. Application: Ideal for Form 5 conduit outlet bodies in control panels and industrial enclosures where reliability matters. Feature: Form 5, 1-1/2 inch trade size standardizes compatibility with common conduit systems. Business Impact: Enables faster sourcing and streamlined procurement for new builds and retrofits. Application: Appropriate for equipment feeding through 1-1/2 inch conduits in machines and panels. Feature: Exact dimensions — 9 in length, 2.83 in height, 2.6 in width — and weight of 3.68 lb. Business Impact: Predictable footprint supports precise panel layout and space planning, reducing enclosure rework. Application: Used in layout-sensitive installations to maintain consistent clearances. Feature: Compliance credentials — NEC/CEC standards and Ordinary/Non-Hazardous area rating; UL certification for Form 5 conduit outlet bodies. Business Impact: Lowers regulatory risk and enhances safety, facilitating easier audits and approvals. Application: Suitable for North American non-hazardous environments in accordance with applicable codes. Feature: Access to Eaton catalogs, 3D CAD drawings, and datasheets. Business Impact: Speeds engineering validation and procurement, accelerating project timelines. Application: Used by design teams for fast reference during panel design and field commissioning.
Get a Quick Quote for a Eaton C150M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C150M?
Enquire Now
FAQs
The C150M is designed around a 1-1/2 inch trade size Form 5 configuration using a malleable iron body with built-in rollers, ensuring compatibility with common conduit runs. Its Form 5 design standardizes termination points, enabling straightforward field wiring and reliable enclosure terminations in control panels.
The C150M adheres to NEC and CEC standards, is UL-certified for Form 5 conduit outlet bodies, and is rated for Ordinary/Non-Hazardous locations. This combination supports regulatory compliance, safe operation, and eligibility for use in typical North American electrical installations.
Built-in rollers facilitate smoother conduit entry and better alignment, reducing installation time and the chance of misalignment. This is especially beneficial in tight panels or limited-access enclosures, where quick, accurate terminations help minimize downtime.
Yes. The C150M is rated for Ordinary/Non-Hazardous locations per area classification, making it appropriate for standard factory floors and control panels where typical electrical equipment operates without hazardous conditions, while still offering robust malleable iron construction.
The C150M measures 9 inches in length, 2.83 inches in height, and 2.6 inches in width, with a weight of 3.68 pounds. These dimensions support precise enclosure layout, aiding in space planning and ensuring a proper fit within standard electrical panels.
