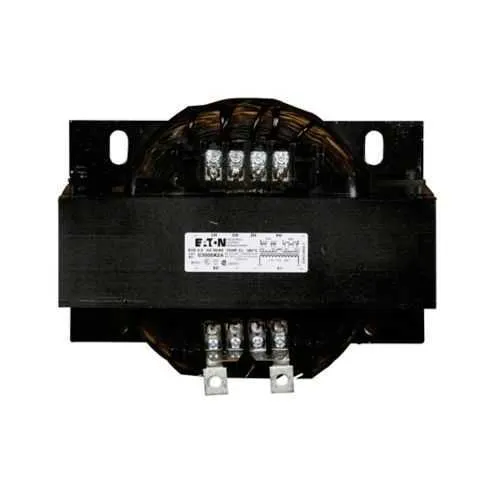

Eaton C2000K2A Industrial Control Transformer - UL Listed
Part Number: C2000K2A
Quick Summary
The Eaton C2000K2A industrial control transformer provides reliable low-voltage control power for industrial equipment. Panel builders and integrators often grapple with voltage stability, space constraints, and compliance risks in control power. It carries CSA Certified, UL Listed, and RoHS compliant certifications, backing safety, interoperability, and environmental responsibility in harsh plant environments. This MTK design transformer operates at 50/60 Hz with epoxy-impregnated coils for long life, supporting rugged duty and easier installation. By delivering 2000 VA and clean step-down to 120/115/110 V, it reduces wiring complexity and maintenance costs, enabling repeatable performance across automation systems and machinery.
Product Information
Extended Description
C2000K2A Eaton: Eaton Type MTK industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 115°c, 2000 va
Product Name
Eaton Type MTK industrial control transformer
Catalog Number
C2000K2A
UPC
786680125706
Product Length/Depth
7.75 in
Product Height
5.73 in
Product Width
6.75 in
Product Weight
46.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
CSA Certified UL Listed cUL Certified
Catalog Notes
Epoxy resin impregnated coil design, 50/60 Hz operation, 180°C insulation system
Coil material
Copper windings
Design
MTK
Tap size
None
Primary voltage
220 x 440 V, 230 x 460 V, 240 x 480 V
Temperature rating
115°C
Volt ampere rating
2000 VA
Secondary voltage
120/115/110 V
Feature: The transformer supports multiple primary voltages—220 x 440 V, 230 x 460 V, and 240 x 480 V—and delivers 2000 VA. Business Impact: This flexibility reduces stocking variations and simplifies panel design, saving time and cost during commissioning. Application: Ideal for machines and control panels powered from common site voltages in North America and international facilities. Feature: Copper windings with a 115°C insulation system. Business Impact: Delivers higher efficiency and better thermal performance in elevated ambient temps, extending component life. Application: Suitable for harsh industrial environments and continuous-operation automation lines. Feature: Epoxy resin impregnated coil design, MTK configuration. Business Impact: Provides moisture resistance, vibration tolerance, and robust reliability. Application: Durable in wash-down zones and rugged equipment enclosures. Feature: MTK design with no taps and compact dimensions (7.75 in L × 6.75 in W × 5.73 in H) and 46.1 lb weight. Business Impact: Enables easier installation in standard control cabinets and tighter spaces, reducing bulkhead modifications. Application: Controls in compact panels and machinery where space is at a premium. Feature: Compliance certifications (RoHS, CSA Certified, UL Listed, cUL). Business Impact: Lowers regulatory risk and simplifies procurement for regulated industries. Application: Safe integration into automotive, food & beverage, and general manufacturing environments. Feature: 50/60 Hz operation. Business Impact: Ensures compatibility with global plant power standards, reducing interconnection issues. Application: Global deployments across mixed-frequency sites in automation and process industries.
Get a Quick Quote for a Eaton C2000K2A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C2000K2A?
Enquire Now
FAQs
What mounting method is recommended and what clearances are needed for safe operation? The C2000K2A uses a compact MTK form factor with copper windings and a 115°C insulation system, so provide adequate clearance around the enclosure per standard electrical practices, allow ventilation, and secure mounting to minimize vibration in 50/60 Hz environments.
The transformer supports primary voltages of 220 x 440 V, 230 x 460 V, and 240 x 480 V, with a secondary of 120/115/110 V and a volt-ampere rating of 2000 VA. This combination enables flexible control-power provisioning across diverse panel designs and machinery.
Yes. The MTK industrial control transformer is specified for 50/60 Hz operation, with epoxy-impregnated copper windings and a 115°C insulation system, delivering stable control power across global automation and manufacturing installations.
The C2000K2A carries RoHS compliance and certifications including UL Listed and CSA Certified, with cUL recognition. These certifications support regulatory compliance and safer integration into regulated industries and multinational facilities.
Its copper windings, robust MTK construction, and epoxy-impregnated coils reduce moisture ingress, vibrations, and wear, lowering downtime and maintenance costs. The 2000 VA rating supports longer service life for critical control circuits, delivering improved return on investment in production environments.
