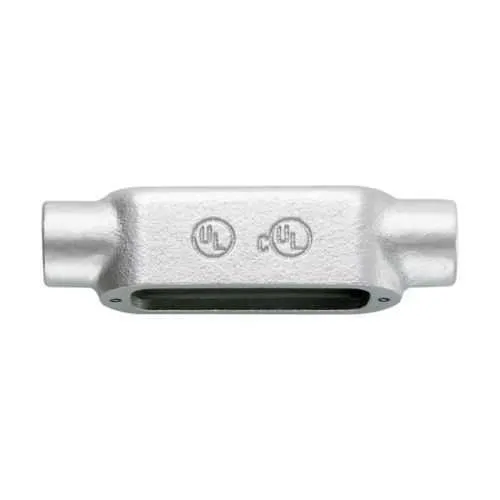

Eaton C200M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: C200M
Quick Summary
The Eaton Crouse-Hinds Condulet Form 5 conduit outlet body enables rugged conduit terminations in harsh industrial environments. Its built-in rollers simplify alignment and installation, reducing downtime and rework in busy electrical rooms. It meets NEC/CEC standards for ordinary locations, and Canadian certifications support cross-border projects. Constructed from malleable iron and sized for 2 in trade size, this Condulet pairs durable material with easy access. Its compact form factor—11.5 in long, 3.31 in high, and 3.12 in wide—facilitates tight, clutter-free installations. The built-in rollers improve ease of mounting and alignment under load, saving labor over lifecycle.
Product Information
Extended Description
C200M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, C shape, Built-in rollers, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
C200M
UPC
782274756387
Product Length/Depth
11.5 in
Product Height
3.31 in
Product Width
3.12 in
Product Weight
5.52 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
C
Trade size
2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds C200M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - C200M
Feature: The Form 5 conduit outlet body uses malleable iron to deliver rugged, load-bearing performance in demanding environments across manufacturing floors and outdoor installations. This material choice reduces denting, corrosion, and wear from frequent handling, vibration, and temperature cycling, translating into lower maintenance costs and longer service life. Application: It is optimized for 2 in trade-size runs in Condulet Form 5 configurations, supporting reliable connections where space, clearance, and alignment are critical. Feature: Built-in rollers simplify alignment and facilitate faster assembly. Impact: Reduced field adjustments shorten installation time and improve first-time correct mounting, boosting project velocity. Application: Ideal for in-run or around corners where precise fitment matters, saving labor in panel assembly and field retrofit tasks. Feature: Form 5 C-shaped body design with 2" trade size compatibility. Impact: Consistent cross-section improves compatibility with standard conduit systems and reduces kit variance. Application: Deploy in medium-sized electrical installations requiring reliable outlet bodies with standardization. Feature: NEC/CEC standards compliance and ordinary location ratings. Impact: Ensures regulatory compliance and risk mitigation for commercial facilities, data centers, and light-industrial plants. Application: Use in non-hazardous areas where code adherence is mandatory. Feature: Defined dimensions (11.5 in length, 3.31 in height, 3.12 in width) and weight (5.52 lb). Impact: Predictable enclosure footprint supports accurate panel and conduit routing planning. Application: Helps with space planning, fixture counts, and installation sequencing.
Get a Quick Quote for a Eaton C200M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C200M?
Enquire Now
FAQs
The C200M is specifically designed for 2" trade-size conduit assemblies within the Form 5 Condulet family. Its C-shaped body and malleable iron construction provide reliable mating with standard 2" conduit components, ensuring consistent alignment and a robust seal in ordinary locations.
Built-in rollers simplify alignment during mounting, reducing the need for field adjustments. This accelerates initial installation, minimizes rework, and lowers labor costs, especially when working between tight clearances or along long conduit runs.
Yes, the C200M is rated for Ordinary/Non-Hazardous Locations and conforms to NEC/CEC standards. This makes it appropriate for commercial and light-industrial facilities where standard electrical code compliance and reliable conduit terminations are required.
Yes. Technical resources include a 3D CAD drawing package and Form 5 catalog pages from Crouse-Hinds, plus a specification sheet from Eaton. These assets support accurate layout planning, interference checks, and procurement planning.
Key dimensions are 11.5 in length, 3.31 in height, and 3.12 in width, with a weight of 5.52 lb. This fixed footprint aids in panel space planning, clearance calculation, and installation sequencing for reliable field performance.
