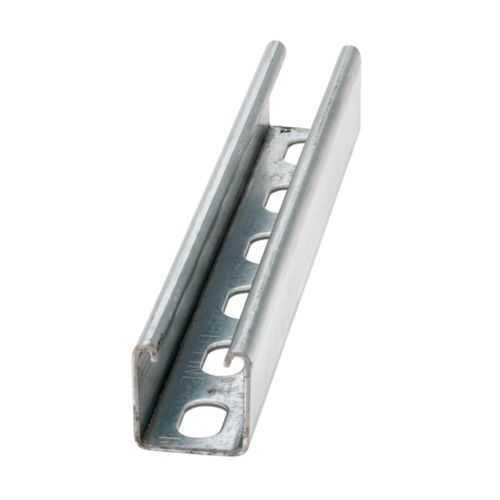

Eaton C22SH-240GLV Strut Channel - SH Hole Pattern
Part Number: C22SH-240GLV
Quick Summary
The Eaton C22SH-240GLV Strut Channel is a versatile mounting framework for supporting cable trays and conduits in industrial electrical installations. Engineers often face corrosion risk and installation complexity in long-span runs; this pre-galvanized steel channel improves durability and field fit. Certifications: Not Applicable for this entry, but the B-Line strut channel family follows established safety practices and broad catalog compatibility. This solution helps reduce installation time and inventory overhead, while enabling seamless integration with KwikSplice kits and channel accessories, delivering reliable support for cables, conduits, and equipment in demanding environments.
Product Information
Extended Description
C22SH-240GLV Eaton: Eaton B-Line series strut channel, 1.62" channel height, 240" channel length, 1.62" channel width, Steel, SH hole pattern, Pre-galvanized
Product Name
Eaton B-Line series strut channel
Catalog Number
C22SH-240GLV
UPC
799038503279
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
26.8 lb
Certifications
Not Applicable
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Strut Channel Identification Overview
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
Channel and Combinations Catalog Section
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
B-Line engineering services line card
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 240 inch length provides long-span support with fewer joints, reducing installation time and labor costs. Business Impact: Increased efficiency on large-scale builds translates to faster project completion and lower total installed cost. Application: Ideal for factory floor cruiseways and data-center cable pathways where long, continuous runs are standard. Feature: 1.62 inch height and 1.62 inch width deliver a rigid, predictable cross-section for load distribution. Business Impact: Improves bending resistance and load-bearing capacity, supporting heavier cable trays and equipment with confidence. Application: Suitable for high-density cable management and equipment mounting in industrial facilities. Feature: SH hole pattern offers flexible mounting options and fastener alignment. Business Impact: Reduces hardware inventory and simplifies adjustments during retrofit projects. Application: Widely compatible with Eaton’s SH-pattern fittings and accessories. Feature: Finish is pre-galvanized steel, providing corrosion resistance in common industrial environments. Business Impact: Extends service life and lowers maintenance costs in non-severe environments. Application: Appropriate for indoor, semi-exposed installations where moisture exposure is present. Feature: Material is steel with a robust 26.8 lb weight profile, balancing strength with manageable handling. Business Impact: Easy to handle in fabrication and installation workflows, reducing worker fatigue and risk. Application: Fits standard shipping and on-site handling processes for mid-to-large projects. Feature: Compatibility with B-Line catalogs and accessories supports a modular, scalable system. Business Impact: Enables rapid design iterations and standardized procurement across projects. Application: Works with Channel and Combinations Catalog Section resources and KwikSplice components for integrated install.
Get a Quick Quote for a Eaton C22SH-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C22SH-240GLV?
Enquire Now
FAQs
The C22SH-240GLV is designed for industrial electrical and mechanical mounting, supporting cable trays, conduits, and equipment using the SH hole pattern. Its 240 in length helps minimize joints, and its pre-galvanized steel finish supports reliability in typical manufacturing and facility environments.
Cataloged as 240 in long with a cross-section of 1.62 in by 1.62 in, the channel weighs 26.8 lb. It is made from steel and finished in pre-galvanized coating, suitable for standard indoor and semi-exposed installations.
The entry lists Certifications as Not Applicable. The component is designed to integrate with standard B-Line channel systems and accessories, offering compatibility and proven performance within typical industrial installations.
The SH hole pattern provides flexible alignment for fasteners and accessories, enabling easier adjustments, reduced hardware variety, and quicker retrofit timelines on existing runs.
Benefits include longer service life from a pre-galvanized steel finish, fewer joints due to the long 240 in length, and streamlined procurement through compatibility with B-Line catalogs. These factors collectively reduce installation time, inventory complexity, and long-term maintenance costs.
