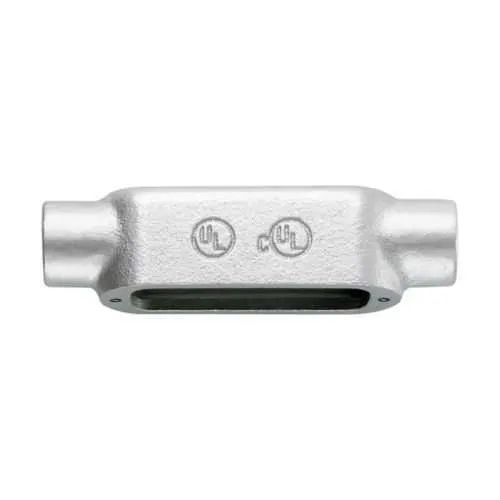

Eaton C250M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: C250M
Quick Summary
Eaton C250M Condulet Form 5 conduit outlet body provides rugged enclosure for form 5 conduit systems. Engineers often struggle with secure, code-compliant terminations in harsh, space-constrained installations. This unit carries NEC/CEC compliance and UL safety certifications for ordinary/non-hazardous locations, reinforcing regulatory confidence. Crafted in malleable iron with built-in rollers, it speeds installation, reduces field labor, and delivers durable protection for industrial wiring. Its 2-1/2\" trade size with a 15 inch length and compact footprint supports reliable performance from equipment panels to outdoor enclosures. Specification details align with standard electrical layouts, enabling predictable fit and straightforward maintenance.
Product Information
Extended Description
C250M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, C shape, Built-in rollers, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
C250M
UPC
782274756394
Product Length/Depth
15 in
Product Height
3.9 in
Product Width
4.31 in
Product Weight
12.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
C
Trade size
2-1/2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds C250M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - C250M
Feature: Malleable iron construction. Business Impact: rugged durability and vibration resistance in demanding environments. Application: protects Form 5 conduit runs in heavy equipment installations. Feature: Built-in rollers. Business Impact: speeds conduit alignment and reduces installation labor. Application: simplifies routing of 2-1/2\" Form 5 conduits in tight panels and crowded cabinets. Feature: Form 5, 2-1/2\" trade size. Business Impact: broad compatibility with standard conduits and fittings, reducing the need for adapters. Application: ideal for commercial and industrial layouts requiring reliable, code-compliant outlet bodies. Feature: Dimensions and weight. Business Impact: predictable enclosure footprint and manageable handling in field conditions. Application: space-constrained panels and equipment enclosures. Feature: NEC/CEC compliance and UL listing for Ordinary/Non-Hazardous Locations. Business Impact: risk mitigation during audits and faster approvals. Application: regulated manufacturing facilities and commercial installations.
Get a Quick Quote for a Eaton C250M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C250M?
Enquire Now
FAQs
For proper installation choose a 2-1/2\" Form 5 pathway and align the C250M’s malleable iron body with the conduit run. Use the built-in rollers to guide the conduit during assembly, and ensure all connections meet NEC/CEC requirements for Ordinary/Non-Hazardous Locations. Verify clearance and torque to avoid binding in tight spaces.
The C250M employs malleable iron for rugged durability and vibration resistance, ideal for harsh environments. Its Form 5 design supports a 2-1/2\" trade size, delivering a UL-listed safety profile suitable for Ordinary/Non-Hazardous Locations under NEC/CEC standards. This combination minimizes field failures and extends service life in industrial wiring.
Yes. The C250M is purpose-built for Form 5 conduit runs with a 2-1/2\" trade size and durable malleable iron construction, making it well-suited for both commercial and industrial installations that require reliable conduit protection and code compliance.
The C250M is NEC/CEC compliant and UL-listed for Ordinary/Non-Hazardous Locations. It bears a UPC designation and aligns with Crouse-Hinds Form 5 catalog specifications, supporting regulatory approvals and safer field applications.
Selecting the C250M offers faster installation thanks to built-in rollers and a robust malleable iron body that reduces replacement needs. Its code-compliant design minimizes rework and audits, delivering a favorable total cost of ownership in regulated facilities and busy manufacturing environments.
