Eaton C75M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: C75M
Quick Summary
Eaton C75M Condulet Form 5 conduit outlet body provides rugged, corrosion-resistant terminations for electrical raceways in industrial installations. Specifying metal conduit bodies often leads to compatibility and corrosion challenges in harsh environments. This Form 5 product complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. For panel builders and integrators, the combination of malleable iron construction, 3/4 inch trade size, and familiar form factor reduces sourcing risk and speeds installation. The unit’s 6 inch length and compact footprint fit tight control panels, while its robust design supports long service life in demanding facilities. Overall, the C75M helps streamline procurement, ensure regulatory alignment, and support maintenance programs with predictable performance.
Product Information
Extended Description

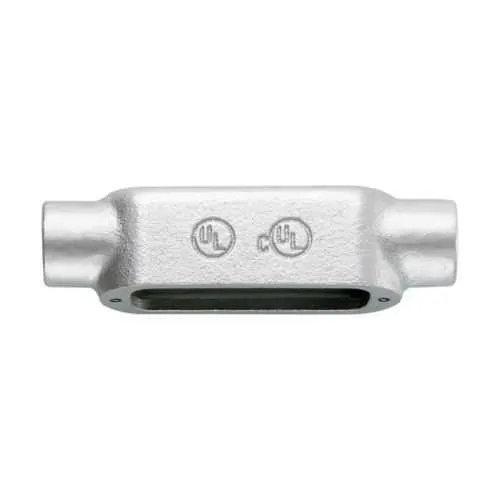

C75M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, C shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
C75M
UPC
782274756349
Product Length/Depth
6 in
Product Height
1.7 in
Product Width
1.5 in
Product Weight
1.18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
C
Trade size
3/4"
Material
Malleable iron
Eaton Crouse-Hinds C75M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - C75M
Feature: Malleable iron construction provides robust mechanical protection for conduit joints. Business impact: reduces field damage and downtime, extending service life in tough industrial environments. Application: ideal for Form 5 conduit outlet bodies in control panels and equipment racks where frequent wiring access is needed. Feature: Form 5 C-shaped body accepts 3/4 inch trade size conduits. Business impact: standardizes connections across panels and simplifies spare-parts inventories. Application: fits common conduit runs in electrical cabinets and machinery enclosures. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Impact: ensures code-compliant terminations and reduces regulatory risk across typical facilities. Application: suitable for general industrial plants and system integrations. Feature: precise dimensions and compact footprint. Impact: predictable fit in tight spaces and ease of handling during installation. Application: helps panel layout, routing, and field servicing. Feature: availability of 3D CAD drawing, catalog page, and spec sheet. Impact: accelerates engineering workflows, procurement, and change management. Application: supports fast design iterations and accurate BOM creation for Form 5 outlet body installs.
Get a Quick Quote for a Eaton C75M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C75M?
Enquire Now
FAQs
To install the C75M Form 5 conduit outlet body, mount it to a compatible enclosure using standard hardware for a 3/4 inch trade size. Align the conduit openings, secure the body firmly, and seat any required gaskets to maintain enclosure integrity. Verify fastener torque and channel wiring for clean, reliable terminations in ordinary locations.
Key specs include malleable iron construction, a Form 5 C shape, 3/4 inch trade size, 6 inch length, 1.7 inch height, 1.5 inch width, and a weight of 1.18 pounds. These dimensions provide predictable fit in control panels and cabinets, while the material choice supports durability against impact and corrosion in standard industrial environments.
No. The C75M is rated for Ordinary/Non-Hazardous Locations per NEC/CEC, and there is no specified outdoor or hazardous-duty rating. For outdoor or hazardous-area installations, select products with appropriate IP, NEMA ratings or hazardous-location approvals. Within a non-hazardous indoor panel, the C75M provides reliable enclosure protection and straightforward maintenance in suitable environments.
It meets NEC/CEC standards for general electrical installations, enabling code-compliant terminations in ordinary locations. The Form 5 configuration aligns with common industry practices, reducing design changes and rework. This certification helps procurement teams validate compatibility across US and Canadian installations, while supporting safer, auditable wiring in control panels. It also streamlines factory acceptance testing and maintenance planning.
Using the C75M provides durable, long-life terminations that reduce downtime and replacement costs. Its standardized 3/4 inch size and Form 5 geometry simplify design and sourcing, while NEC/CEC compliance minimizes compliance risk in US and Canadian facilities. Access to 3D CAD drawings, catalogs, and spec sheets accelerates engineering workflows and procurement, lowering overall project lead times.
