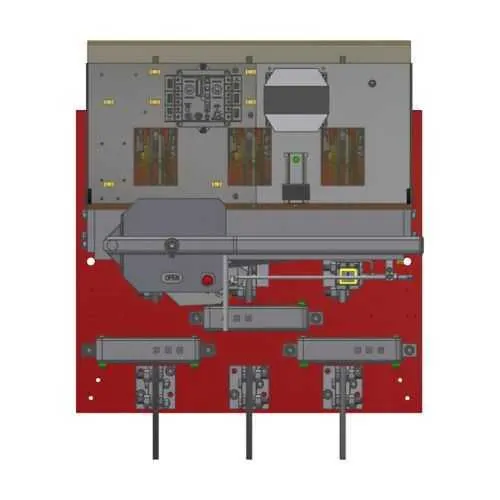

Eaton CB1634T120208C Bolted Pressure Switch - UL Listed
Part Number: CB1634T120208C
Quick Summary
Eaton CB1634T120208C Bolted Pressure Switch is designed to deliver high-current protection for industrial power distribution. In demanding 208 V three-phase environments, unreliable protection can lead to costly downtime and equipment damage, so reliability matters. UL Listed certification confirms safety and reliability for critical applications. This solution supports efficient installation with a top-feed wiring configuration and three-pole operation, while its rugged construction complements Eaton's broader switchgear ecosystem. By standardizing on a single family of components, you can simplify maintenance, reduce spare parts, and improve uptime across manufacturing lines and data-center peripheral equipment.
Product Information
Extended Description
CB1634T120208C Eaton: PringleBPS, 1600A, Top, 208V 3P w/N-CT, ArcRed/GF Relay-CT
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB1634T120208C
UPC
786689773632
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
175 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
1600A
Voltage rating
208 V
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
Eaton Specification Sheet - CB1634T120208C
Feature: High-current 1600A amperage rating. Business impact: Handles large motors and critical loads in a single device, reducing panel complexity and improving fault isolation. Application: switchgear, motor control centers (MCCs), and distribution panels in heavy industry. Feature: Bolted pressure contact design with ArcRed/GF Relay-CT integration. Business impact: Minimizes contact wear, reduces arcing energy, and extends service life in high-stress switching events. Application: 208V three-phase circuits with aggressive switching requirements in manufacturing plants. Feature: Top-feed wiring and three-pole, three-wire configuration. Business impact: Simplifies installation and reduces wiring errors, enabling faster commissioning and easier field servicing. Application: retrofit projects and new builds where standardization with Eaton switchgear improves maintenance predictability. Feature: UL Listed safety certification. Business impact: Supports compliance programs and helps meet internal safety standards with a proven safety record. Application: any high-current distribution task requiring recognized safety validation across industrial environments. Feature: Physical footprint and compatibility. Business impact: The 16 in length, 28 in height, and 24 in width with 175 lb weight provide a robust enclosure footprint compatible with common mounting patterns and Eaton accessory ecosystems, reducing field-fit surprises. Application: utility rooms, panel houses, and motor control centers that require dependable, pre-engineered protection devices.
Get a Quick Quote for a Eaton CB1634T120208C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB1634T120208C?
Enquire Now
FAQs
Installation generally follows a top-feed wiring approach with three-pole, three-wire configuration. Ensure mounting matches the enclosure pattern, verify clearance for 16 in L, 28 in H, and 24 in W, and coordinate with Eaton accessories for a seamless retrofit. Proper torque, wiring practices, and field wiring methods reduce commissioning time and improve reliability.
The device delivers a 1600A amperage rating and a three-pole, three-wire setup optimized for 208V three-phase systems. Its bolted pressure contact design minimizes arcing and wear, while ArcRed/GF Relay-CT integration enhances switching longevity. This combination supports safer, more reliable motor control and distribution in demanding industrial environments.
Yes, CB1634T120208C is UL Listed. This certification indicates compliance with recognized safety standards for electrical switching devices, supporting safer operation, consistent performance, and easier adherence to corporate and regulatory safety programs within industrial facilities.
CB1634T120208C is designed to integrate with Eaton’s switchgear ecosystem, including standard mounting patterns and compatible ARMS-type accessory lines. For installations, verify accessory fitment with the exact enclosure and panel design, ensuring mounting hardware and wiring harnesses match the three-pole, top-feed configuration to optimize space and maintenance access.
The 1600A, UL Listed bolted design reduces arcing wear and extends service life in frequent switching environments, lowering spare parts usage and downtime. While maintenance cycles depend on load profile, customers typically see improved uptime, fewer component replacements, and streamlined spare-part inventories due to standardized Eaton switchgear compatibility.
