Eaton CB1634T120480C Pressure Contact Switch - UL Listed
Part Number: CB1634T120480C
Quick Summary
Eaton CB1634T120480C is a bolted pressure contact switch for high-demand motor control. Engineers often wrestle with reliable protection in large top-feed switchgear while managing space and wiring complexity. UL Listed certification confirms code compliance and safe operation in industrial environments, supporting safe panel integration. The design includes a control power transformer, a fusible protection scheme, and matched CTs (with a CT for neutral-neutral not included), enabling scalable protection and accurate fault sensing. In practice, this assembly reduces downtime and simplifies maintenance while delivering robust control for electrical distribution.
Product Information
Extended Description

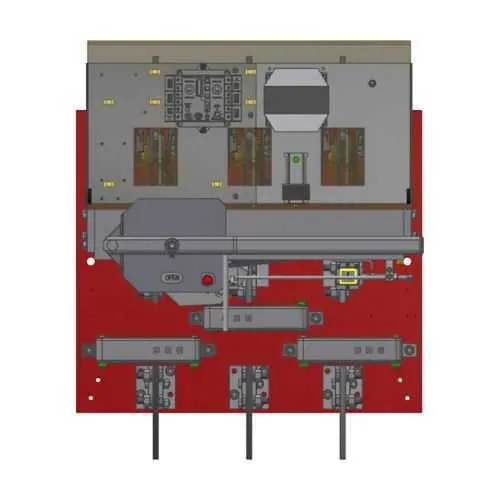

CB1634T120480C Eaton: Eaton pringle bolted pressure contact switch, With control power transformer,1600A,120V,Top feed,480V,3 pole,Three-wire,Fusible. Includes AFGF relay and matched CT's (with CT for a neutral-neutral not included).
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB1634T120480C
UPC
786689413392
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
175 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
1600A
Control voltage
120 V
Protection
FUSIBLE
Voltage rating
480 V
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
Eaton Specification Sheet - CB1634T120480C
Feature: High amperage switching supports demanding loads up to 1600A at 480V, enabling consolidation of protection devices and reducing panel footprint. Business impact: Improved reliability for large motors and feeders; Application: Motor control centers and switchgear where heavy current handling is required. Feature: 120V control voltage with three-wire, three-pole top-feed configuration simplifies wiring and integration with existing control circuits. Business impact: Shorter installation time and fewer wiring errors; Application: Plant-wide control panels and MCCs with standard control circuits. Feature: Fusible protection provides inherent safety and coordinated outage protection. Business impact: Enhanced selectivity and safer de-energization during faults; Application: Industrial power distribution with mandated protection. Feature: Includes AFGF relay and matched CTs (CT for neutral-neutral not included) accelerates deployment and improves protection accuracy. Business impact: Precise fault measurement reduces nuisance trips and supports fast isolation; Application: Remote monitoring and protective relay schemes. Feature: UL Listed certification and Eaton specification support ensure compliance and reliable performance in enclosed environments. Business impact: Streamlined procurement, safer installations, and predictable maintenance costs; Application: Enclosures, panels, and power distribution ecosystems in industrial facilities.
