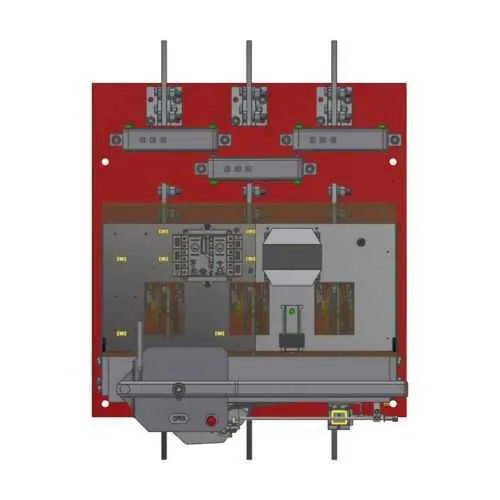

Eaton CB2034B120208C7 Pressure Contact Switch - UL Listed
Part Number: CB2034B120208C7
Quick Summary
The Eaton pringle bolted pressure contact switch provides high-current protection for electrical panels in heavy industrial applications. Engineers often struggle with maintenance bottlenecks and unreliable trip performance in bulky switchgear that slows commissioning and increases downtime. UL Listed safety certification supports compliance in regulated environments, ensuring safe operation across demanding load profiles. Designed for three-pole, three-wire configurations with ArcRed/GF Relay-CT integration, it fits common panel architectures and simplifies wiring. With a 2000A rating at 208V and a bottom-feed design, this solution delivers straightforward installation and long service life for power distribution and motor-control centers.
Product Information
Extended Description
CB2034B120208C7 Eaton: PringleBPS, 2000A, Bottom, 208V 3P w/N-CT, ArcRed/GF Relay-CT, 2NO/2NC
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB2034B120208C7
UPC
786689773687
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Bottom
Fuse configuration
Bottom feed
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2000A
Voltage rating
208 V
Eaton Switching Devices
Eaton Switching Devices
Eaton Switching Devices
Eaton Switching Devices
Eaton Specification Sheet - CB2034B120208C7
Feature: 2000A amperage rating at 208V three-phase enables single-device switching for high-load circuits, reducing device count and cabinet complexity. Business impact: fewer devices in series lowers wiring runs, improves fault tolerance, and cuts total installed cost over lifecycle. Application: ideal for large power distribution panels, motor-control centers, and transformer enclosures in manufacturing and process facilities. Feature: Bottom feed with integrated fuse configuration simplifies termination and protects against miswiring during installation. Business impact: faster commissioning, fewer field errors, and reduced panel depth requirements in tight spaces. Application: suitable for plant upgrades and new builds where space is at a premium and reliability is critical. Feature: Three-pole, three-wire construction with 2NO/2NC contacts provides versatile control logic and interlock options. Business impact: supports safe sequencing of start/stop circuits and alarm interlocks without extra accessories, enhancing plant safety and uptime. Application: commonly deployed in MCCs, switchgear cabinets, and safety interlock assemblies in heavy industries. Feature: ArcRed/GF Relay-CT integration offers advanced arc protection and current sensing for monitoring and remote signaling. Business impact: improves operator safety, reduces arc-flash risk, and enables proactive maintenance through state reporting. Application: connects to plant-wide automation with retrofit options for legacy equipment. Feature: UL Listed certification confirms compliance with industrial safety standards while the rugged pringle bolted design withstands vibration and harsh environments. Business impact: lowers regulatory risk, extends service life, and minimizes maintenance cycles in continuous-operation facilities. Application: well-suited for harsh environments in mining, metal processing, and large-scale manufacturing.
Get a Quick Quote for a Eaton CB2034B120208C7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB2034B120208C7?
Enquire Now
FAQs
To install CB2034B120208C7 in 208V panels, follow the bottom-feed terminal arrangement and three-pole, three-wire configuration. Ensure the 2000A rating matches your bus rating and torque the bolts per Eaton’s specification. If needed, integrate the N-CT option for current sensing and wire the 2NO/2NC contacts for interlock logic. Adhere to UL Listed wiring practices throughout.
Yes. The CB2034B120208C7 is designed for 208V three-phase operation, featuring bottom-feed terminals and a three-pole, three-wire configuration. Its 2000A rating supports large-load applications, making it suitable for motor-control centers and heavy power distribution in industrial facilities.
Typical applications include motor-control centers, large power distribution panels, safety interlock assemblies, and transformer enclosures. The device supports interlock logic with 2NO/2NC contacts and is compatible with ArcRed/GF Relay-CT configurations, enabling safe operation in high-current industrial environments.
The CB2034B120208C7 carries UL Listed certification, confirming safety compliance for industrial control panels and switchgear. This designation supports regulatory acceptance in many facilities and provides a baseline for safe operation in demanding industrial environments.
The high-current, bolted design reduces device count and wiring complexity, lowering installation and maintenance labor. Its UL Listed certification and robust construction translate to longer service life and fewer field failures, delivering lower total cost of ownership in continuous-operating plants and large-scale manufacturing facilities.
