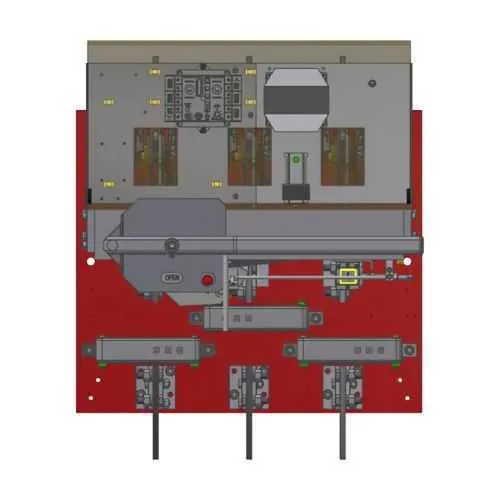

Eaton CB2034T120208C7 Bolted pressure switch - UL Listed
Part Number: CB2034T120208C7
Quick Summary
Eaton CB2034T120208C7 bolted pressure contact switch is designed for high-current control in industrial switchgear and distribution panels. Engineers often face reliability challenges when scaling power paths, especially at 2000 A, where single-point failures can halt production. UL Listed certification supports safety compliance for critical electrical equipment used in manufacturing and data-center environments. With a top-feed, 208 V three-phase rating and 2NO/2NC contacts, the unit delivers robust control with straightforward wiring and fast diagnostics. This combination translates to improved uptime, easier maintenance, and a smoother procurement cycle for panel builders and integrators.
Product Information
Extended Description
CB2034T120208C7 Eaton: PringleBPS, 2000A, Top, 208V 3P w/N-CT, ArcRed/GF Relay-CT, 2NO/2NC
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB2034T120208C7
UPC
786689773717
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2000A
Voltage rating
208 V
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - CB2034T120208C7
Feature → Business Impact → Application: The CB2034T120208C7 supports a high current rating of 2000 A, enabling you to consolidate feeders and reduce the number of parallel devices, which lowers installation complexity and total system footprint in switchgear. This translates to measurable efficiency gains in large distribution cabinets and data-center power paths, where reliability and space are at a premium. Application: Suitable for main feeders in industrial controls, enabling safer, more robust power switching in critical systems. Feature → Business Impact → Application: Its three-pole, three-wire configuration simplifies wiring schemes and improves fault isolation, reducing commissioning time and wiring errors in three-phase assemblies. This aids panel builders in meeting tight project timelines and regulatory expectations. Application: Ideal for motor control centers and distribution panels demanding precise interlocking and coordinated switching. Feature → Business Impact → Application: Top-feed design facilitates rapid installation and clean cable routing, minimizing enclosure footprint and enhancing maintenance access. Application: Perfect for retrofit projects in existing switchgear where space optimization is essential. Feature → Business Impact → Application: The 2NO/2NC contact arrangement provides flexible control logic and fail-safe signaling, improving system reliability and enabling straightforward interlocks and status feedback. Application: Useful in interlocked circuits and remote signaling within industrial automation environments. Feature → Business Impact → Application: ArcRed/GF Relay-CT integration delivers arc suppression and current monitoring capabilities, reducing arc-flash exposure and enabling enhanced protection strategies. Application: Beneficial in high-energy switchgear where operator safety and diagnostic visibility are paramount. Feature → Business Impact → Application: Weighing in at 180 lb with dimensions 16 in L × 28 in H × 24 in W, the unit offers a rugged, robust footprint that aligns with standard switchgear footprints, facilitating straightforward installation and integration. Application: Suitable for new builds and retrofits in large control panels and switchgear enclosures. Feature → Business Impact → Application: UL Listed certification provides formal safety validation, supporting compliance and audit readiness for industrial facilities, data centers, and manufacturing floors. Application: Essential for regulated environments and procurement criteria where safety approvals drive supplier selection.
Get a Quick Quote for a Eaton CB2034T120208C7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB2034T120208C7?
Enquire Now
FAQs
To install CB2034T120208C7, align the top-feed terminals with the panel bus structure, secure the switch using manufacturer-recommended hardware, and verify 208 V three-phase connections. Ensure 2NO/2NC contacts are wired for your control logic and interlocks. After connection, perform a functional test and inspect for proper arc-quench clearance. Always follow local codes and Eaton guidelines.
Key specs include a 2000 A amperage rating, 208 V three-phase voltage, and a 2NO/2NC contact configuration in a three-pole, three-wire setup. The device uses a top-feed arrangement and carries UL Listed certification, ensuring compliance with safety standards for industrial switchgear and motor control centers.
Yes. Its three-pole, 208 V rating and high current capacity make it well-suited for motor control centers and large distribution panels. The 2NO/2NC contacts support flexible signaling and interlock configurations, while UL Listed certification provides an added layer of compliance for MCC and switchgear environments.
The product is UL Listed, which validates electrical safety and performance for industrial equipment. This certification supports compliance during audits and helps ensure safe operation in manufacturing facilities, distribution centers, and data centers. Relying on UL Listed components also helps with supplier qualification and system integrator confidence.
Pay attention to enclosure footprint, wiring discipline, and appropriate ambient conditions. The unit’s top-feed design, 16 by 24 by 28 inch footprint, and 180 lb weight influence mounting tolerances and service access. Proper torque on connectors, routine inspection of contacts, and alignment with upstream protection schemes improve uptime and reduce maintenance costs.
