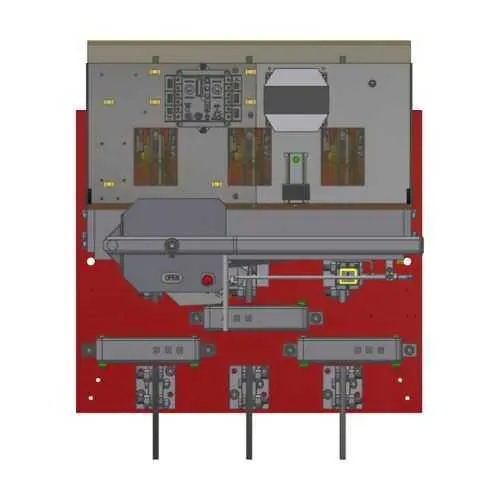

Eaton CB2034T120480C7 Bolted Pressure Switch - UL Listed
Part Number: CB2034T120480C7
Quick Summary
Eaton CB2034T120480C7 bolted pressure switch monitors high-current 480 V three-phase circuits. This design helps protect critical loads from unexpected start-ups and electrical faults by delivering reliable, fail-safe contact closures. UL Listed certification underpins safety compliance for heavy-duty switching, ensuring reliable operation in demanding environments. Within industrial automation and switchgear maintenance, the three-pole, three-wire CB2034T120480C7 supports flexible interlocking with 2NO/2NC contacts, reducing downtime and enabling safer control schemes. Its robust dimensions fit standard switchgear footprints, simplifying installation in crowded MCCs. Designed for teams handling high-current protection and plant-wide safety, this solution integrates with existing installations to streamline procurement, maintenance, and service life.
Product Information
Extended Description
CB2034T120480C7 Eaton: PringleBPS, 2000A, Top, 480V 3P w/N-CT, ArcRed/GF Relay-CT, 2NO/2NC
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB2034T120480C7
UPC
786689773724
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2000A
Voltage rating
480 V
Double Up on Safety
Double Up on Safety
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - CB2034T120480C7
High-current rating and three-pole design enable safe switching of large loads without compromising arc control. The CB2034T120480C7 supports 2000A at 480V and uses a top-feed arrangement to accommodate heavy feeders in MCCs and switchgear. This configuration reduces transient stress on wiring and improves system reliability during start-up and shut-down operations. With 2NO/2NC contacts, operators can implement versatile interlocks and fail-safe logic. The combination improves control flexibility for emergency stops and status signaling while maintaining a compact footprint. Its UL Listed certification demonstrates compliance with recognized electrical safety standards, supporting procurement and regulatory alignment. The unit's substantial dimensions (16 in L, 28 in H, 24 in W) and weight (180 lb) offer stable mounting in rugged environments. Top feed and bolted design simplify installation in existing switchgear and MCCs, while ArcRed/GF Relay-CT features provide arc energy mitigation for safer operation. Long service life and straightforward maintenance reduce downtime and lifecycle costs. The device is compatible with standard industrial control schemes, supporting scalable protection in growing plants.
Get a Quick Quote for a Eaton CB2034T120480C7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB2034T120480C7?
Enquire Now
FAQs
The CB2034T120480C7 uses a top-feed, bolted-contact design suitable for three-pole, three-wire installations. Its heavy-duty construction and standard footprint support straightforward integration with existing MCCs and switchgear, reducing retrofit complexity.
It is rated for 2000A with a 480V supply, configured as three-pole and three-wire, with 2NO/2NC contact sets to support flexible interlocking and safety circuits in industrial control schemes.
Yes. The high-current rating, top-feed configuration, and versatile contact arrangement make it well-suited for motor control centers and large feeders where reliable protection and fast isolation are required.
The product is UL Listed, confirming compliance with recognized electrical safety standards. No additional certifications are listed in the provided data.
Its robust, heavy-duty build supports long service life with reduced downtime. The UL Listed safety profile and straightforward installation help minimize lifecycle costs while maintaining high reliability in demanding environments.
