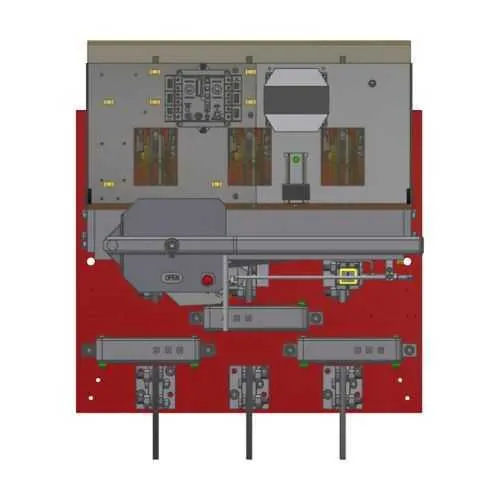

Eaton CB2034T120480KC Pringle pressure switch UL Listed
Part Number: CB2034T120480KC
Quick Summary
Eaton pringle bolted pressure contact switch enables reliable top-feed protection for high-current electrical loads. Facility teams often struggle with large, legacy switchgear that complicates maintenance and increases downtime. This UL Listed device supports demanding industrial environments, and its high-current rating complements 480 V three-phase systems while ensuring robust protection. By aligning with UL safety standards and a proven rugged build, it delivers dependable performance, reduces maintenance overhead, and integrates smoothly with existing protection schemes and control architectures. For users seeking scalable, high-capacity switching with clear compliance, this solution embodies business value while fitting into established electrical infrastructure.
Product Information
Extended Description
CB2034T120480KC Eaton: PringleBPS, 2000A, Top, 480V 3P w/N-CT, KIP, ArcRed/GF Relay-CT
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB2034T120480KC
UPC
786689773748
Product Length/Depth
16 in
Product Height
28 in
Product Width
24 in
Product Weight
180 lb
Certifications
UL Listed
Feed type
Top
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2000A
Voltage rating
480 V
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
Eaton Specification Sheet - CB2034T120480KC
Feature: High current and voltage capability enables handling 2000A at 480V, reducing the need for multiple devices and simplifying protection design. Business Impact: Lower capital expenditure per amp pulled and reduced upstream faults, improving overall line efficiency. Application: Heavy-industrial motor loads and large process lines benefit from consolidated protection in a single, reliable switch. Feature: Top-feed, three-pole, three-wire configuration simplifies wiring topology and enhances fault isolation. Business Impact: Faster installation, fewer wiring errors, and improved maintainability in congested control rooms. Application: Large panel assemblies and switchgear with tight spatial constraints gain straightforward integration. Feature: UL Listed certification provides recognized safety compliance for industrial use. Business Impact: Streamlined procurement and reduced risk during audits, supporting regulatory alignment. Application: Facilities with strict safety programs can rely on certified components for critical protection circuits. Feature: Robust enclosure footprint—16 in depth, 28 in height, 24 in width, and 180 lb weight—offers substantial physical durability and clear mounting guidance. Business Impact: Predictable installation planning, stable mechanical integration, and fewer field-fit surprises. Application: Utility-scale or manufacturing environments where large, fixed protection devices are standard. Feature: N-CT/wired arc-reduction options (ArcRed/GF Relay-CT) and compatibility with specialized control features enhance protection. Business Impact: Enhanced arc mitigation and smarter control responses, reducing arc-flash risks and improving protection intelligence. Application: Systems requiring enhanced safety margins and integration with arc-resistant architectures.
Get a Quick Quote for a Eaton CB2034T120480KC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB2034T120480KC?
Enquire Now
FAQs
CB2034T120480KC is designed for top-feed installations in large industrial switchgear. Ensure mounting in a compatible enclosure with secure anchoring, and plan for the 16 inch depth, 28 inch height, and 24 inch width. Wire to compatible bus bars and connectors, and verify local clearance and safety codes. The UL Listed certification supports compliant installations, and consider N-CT options if arc mitigation is needed.
Yes. The CB2034T120480KC is rated for 2000A at 480V in a three-pole, three-wire configuration. This makes it suitable for heavy-load, three-phase applications such as large motors, presses, and process lines where high current protection and reliable switching are required. Ensure matching with your panel ratings and wiring standards for safe operation.
The CB2034T120480KC carries UL Listed certification, indicating compliance with recognized safety standards for industrial use. This supports formal procurement and audit requirements in facilities prioritizing safety and reliability. If your project also requires CE or IP ratings, you should confirm compatibility with the specific installation and environment since those codes are not listed in the provided data.
The three-pole, three-wire configuration ensures balanced protection across all three phases, simplifying wiring layouts and improving symmetry in fault isolation. This arrangement is beneficial for large three-phase systems common in heavy manufacturing. Plan wire routing accordingly and verify that disconnect and protection coordination with upstream devices aligns with system protection coordination studies.
High-current protection devices like CB2034T120480KC reduce unplanned downtime by consolidating protection into a single robust switch, lowering maintenance complexity. While the enclosure is large and heavy (180 lb), the unit’s durability and UL Listed status support longer service life and fewer field interventions. Consider lifecycle costs, spare parts availability, and routine inspection intervals to maximize ROI.
