Eaton CB223-15 Automotive Circuit Breaker - ATC Type III

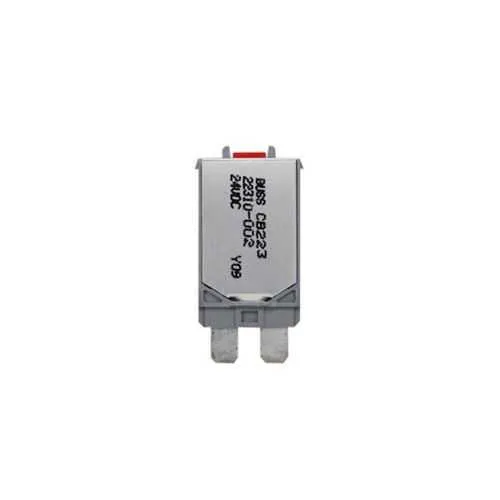

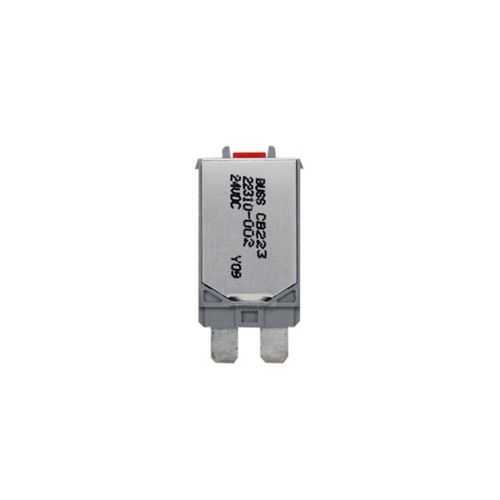

Part Number: CB223-15
Quick Summary
Eaton CB223-15 automotive circuit breaker protects automotive electrical circuits from overcurrent events. In compact harness layouts, space and reliability are persistent challenges that can drive costly redesigns and downtime. UL 94V-0 thermoplastic housing with RoHS compliance supports safe operation and regulatory alignment, while the ATC Type III footprint enables easy integration into common automotive panel configurations. With a 15 A, 24 VDC rating and a choice of gold or silver metal covers, this device delivers robust protection without compromising installability or serviceability. For engineers optimizing protection schemes in vehicles, fleets, and mobile equipment, the CB223-15 delivers dependable performance with straightforward installation and maintainability.
Product Information
Extended Description
CB223-15 Eaton: Eaton Bussmann series CB223 automotive circuit breaker, type III ATC footprint, 15A, 28 Vdc, UL-Rated 94V-0 thermoplastic housing with gold metal cover (type I) or silver metal cover (type II and III)
Product Name
Eaton Bussmann series CB223 automotive circuit breaker
Catalog Number
CB223-15
UPC
051712846615
Product Length/Depth
1.5 in
Product Height
0.25 in
Product Width
0.75 in
Product Weight
0.02 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
15 A
Voltage rating
24 V DC
Quantity
1
Bussmann series 4-foot automotive planogram no.10730
CB223-15~ATC CB TYPE 3 -MANUAL RESET - 15 AMP
CB223-15~ATC CB TYPE 3 -MANUAL RESET - 15 AMP
Bussmann series Fuseology
Eaton Specification Sheet - CB223-15
The ATC Type III footprint benefits thermal performance and space utilization, reducing panel depth and enabling tighter wiring layouts. This translates to lower enclosure costs and faster harness assembly, while preserving reliable trip characteristics for demanding automotive circuits. The 15 A, 24 VDC electrical rating matches common automotive loads, delivering precise overcurrent protection and reducing nuisance trips in busy systems. The UL 94V-0 thermoplastic housing adds fire-safety assurance, and RoHS compliance ensures regulatory conformity across global supply chains, helping you meet environmental mandates without redesigns. Manual reset capability (as indicated in catalog variants) supports controlled recovery after fault events, minimizing inadvertent restarts and protecting critical loads. The option for gold (type I) or silver (types II and III) covers simplifies labeling and corrosion resistance in varying environmental exposures. Compatibility with standard ATC fuses ensures straightforward replacement and long-term availability, reducing total cost of ownership. In practice, engineers report shorter commissioning times and fewer field tickets thanks to the CB223-15’s compact form and clear electrical ratings, which align with typical automotive protection strategies and service workflows.
Get a Quick Quote for a Eaton CB223-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB223-15?
Enquire Now
FAQs
CB223-15 features a Type III ATC footprint, designed to snap into standard automotive protection blocks and panels. Its compact dimensions (1.5 in length, 0.75 in width, 0.25 in height) support tight harness routing, while the 24 VDC rating aligns with typical vehicle electrical systems. When replacing older devices, confirm the ATC slot depth and connector alignment to ensure a clean installation with minimal wiring changes.
Key specs include 15 A amperage rating and 24 V DC voltage rating, with a UL 94V-0 thermoplastic housing for flame retardancy. RoHS compliance ensures regulatory alignment for environmental concerns. For harsh environments, consider the cover material option (gold for type I, silver for type II/III) which can influence corrosion resistance and touch-point durability in exposed installations.
Yes, CB223-15 is designed to meet automotive protection needs with a UL-rated housing and RoHS compliance. Its 15 A/24 VDC rating supports common automotive circuits, and the ATC Type III footprint provides a known standard for assembly in automotive panels. Always verify local regulations and supplier documentation (datasheets and catalogs) to ensure full compliance for your specific application and geography.
CB223-15 references UL 94V-0 flame rating for the housing and RoHS compliance for environmental safety. While exact CE or SIL/IP certifications are not listed in the provided data, availability of RoHS compliance and UL classification offers a clear indication of safety and regulatory alignment for most automotive integration projects.
The CB223-15 offers durable protection with a simple manual-reset option in certain configurations, aiding quick recovery after fault events and reducing downtime. Its compact ATC footprint minimizes panel redesign and harness complexity, lowering installation costs. Long-term availability through Eaton catalogs and planograms supports steady spare parts supply, reducing maintenance costs and downtime across fleets and fleets servicing.
