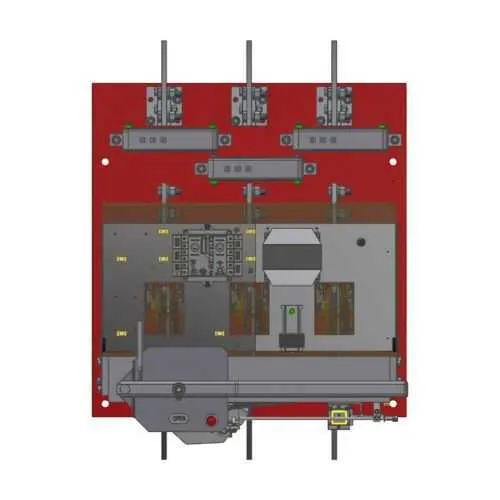

Eaton CB2534B120480C Bolted Pressure Switch - UL Listed
Part Number: CB2534B120480C
Quick Summary
Eaton CB2534B120480C bolted pressure contact switch is designed to deliver high-current control for industrial power panels and motor control centers. Engineers often wrestle with balancing rugged protection and wiring simplicity in demanding installations, and this unit addresses that with a bottom-feed fuse configuration and an integrated control power transformer. UL Listed safety certification supports reliable compliance in critical electrical environments, while the included AFGF relay and matched CTs streamline wiring and protection coordination. Note that CTs for neutral-neutral are not included, so planning for accessories is essential. This combination of robustness, installation efficiency, and predictable performance provides tangible business value through reduced downtime and faster panel assembly.
Product Information
Extended Description
CB2534B120480C Eaton: Eaton pringle bolted pressure contact switch, With control power transformer,2500A,120V,Bottom feed,480V,3 pole,Three-wire,Fusible. Includes AFGF relay and matched CT's (with CT for a neutral-neutral not included).
Product Name
Eaton pringle bolted pressure contact switch
Catalog Number
CB2534B120480C
UPC
786689413422
Product Length/Depth
17 in
Product Height
28 in
Product Width
28 in
Product Weight
215 lb
Certifications
UL Listed
Feed type
Bottom
Fuse configuration
Bottom feed
Number Of Poles
Three-pole
Number of wires
Three-wire
Amperage Rating
2500A
Control voltage
120 V
Protection
FUSIBLE
Voltage rating
480 V
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - CB2534B120480C
High current capability is a core feature, delivering 2500A with a 120 V control voltage. This combination reduces the need for multiple devices in high-load feeders, cutting panel depth and wiring complexity while improving overall safety margins. In practice, engineers deploy CB2534B120480C in switchgear and motor control centers where reliable, single-point control of large motors and feeders is essential. Three-pole, three-wire configuration with bottom fuse feed streamlines installation. The bottom-feed design minimizes wiring length and arc exposure during service, while fusible protection adds an immediate, coordinated isolation mechanism for fault conditions. This supports safer commissioning and easier maintenance planning in harsh industrial environments. Included AFGF relay and matched CTs provide ready-to-wire protection and metering coordination. This packaging reduces procurement complexity and accelerates panel assembly, and the CTs enable accurate sensing for protective relays and control logic. Note that a neutral-neutral CT is not included, so plan accordingly. Main voltage rating of 480 V with 120 V control enables integration into typical industrial power distribution schemes. The UL Listed certification reinforces compliance with safety standards for critical panels, while the rugged enclosure and bolted connections resist vibration and contamination in manufacturing floors. From a maintenance perspective, the unit's modular construction supports straightforward replacement and upgrade paths. Its documented dimensions—17 in depth, 28 in height, 28 in width—and 215 lb weight provide clear space planning and mounting decisions for retrofit projects in existing facilities. Industry context: in modern facilities, consolidating protection devices into a robust bolted switch reduces spare parts, lowers lifecycle costs, and improves diagnostic visibility when paired with CTs and relays. This product aligns with engineers' goals of safety, reliability, and efficiency in high-current applications.
Get a Quick Quote for a Eaton CB2534B120480C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CB2534B120480C?
Enquire Now
FAQs
For installation, plan around the bottom-feed fuse configuration and three-wire, three-pole layout. Ensure space for the 17 inch depth, 28 inch height, and 28 inch width. Include the AFGF relay and matched CTs provided, and account for CTs that are not included for neutral-neutral circuits. This approach minimizes wiring runs and supports safe, accessible fault isolation during commissioning.
Key specs include an amperage rating of 2500A, control voltage of 120 V, voltage rating of 480 V, three-pole operation, three-wire configuration, and fusible protection. The device uses bottom feed for fuse configuration and ships with an AFGF relay and matched CTs to coordinate protection and monitoring in high-current panels.
Yes. The 2500A rating, 480 V main voltage, and three-pole three-wire arrangement make it well-suited for MCCs and other heavy-duty switchgear applications. The integrated control transformer and relay plus CTs simplify installation and improve protection coordination in motor-driven systems, delivering reliable fault isolation and control in demanding environments.
The CB2534B120480C is UL Listed, providing recognized safety compliance for electrical assemblies in industrial environments. While other certifications such as SIL, CE, or IP ratings are valuable, they are not specified for this product in the provided data; UL Listed status ensures adherence to established safety standards for control devices.
The unit’s modular design and inclusion of a relay and CTs reduce wiring complexity and spare parts, accelerating installation and service. Its robust bolted construction supports long service life in harsh environments, which translates to lower maintenance costs and reduced downtime—key factors in improving overall equipment effectiveness (OEE) for high‑current applications.
