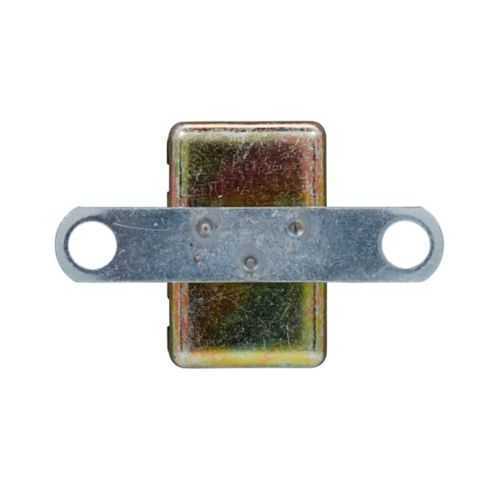

Eaton CBC-20B Automotive Circuit Breaker - 1.5 kAIC Type I
Part Number: CBC-20B
Quick Summary
The Eaton CBC-20B automotive circuit breaker protects 14 Vdc automotive circuits from overloads. This provides reliable protection for vehicle electrical systems while simplifying maintenance in dense wiring environments. For global deployments, typical automotive certifications include CE, UL recognition, and IP ratings depending on market; verify CBC-20B approvals with Eaton. With a compact footprint and a 20 A rating, the CBC-20B combines robust protection with installation efficiency, supporting rugged automotive applications and space-constrained panels alike.
Product Information
Extended Description
CBC-20B Eaton: Eaton Bussmann series CBC-B automotive circuit breaker, 14 Vdc, 20 A, 1.5 kAIC, Type I, 10-32 TPI stud
Product Name
Eaton Bussmann series CBC-B automotive circuit breaker
Catalog Number
CBC-20B
UPC
051712271196
Product Length/Depth
0.84 in
Product Height
1.35 in
Product Width
1.46 in
Product Weight
0.5 lb
Compliances
Contact factory
Amperage Rating
20 A
Interrupt rating
1.5 kAIC
Voltage rating
14 Vdc
Connection
#10-32 TPI stud
Bussmann series 4-foot automotive planogram no.10730
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series full line retail catalog no. 5084
Bussmann series Fuseology
Eaton Specification Sheet - CBC-20B
The CBC-20B offers a 14 Vdc, 20 A protected path with a 1.5 kAIC interrupt rating, delivering fast overcurrent protection that reduces wiring damage and downtime in vehicles and mobile equipment. This translates to lower repair costs and higher uptime in critical automotive systems. The #10-32 TPI stud connection simplifies wiring harness integration, enabling quick, secure installations in OEM dashboards, aftermarket builds, or service panels. Its compact footprint—0.84 in deep, 1.35 in high, and 1.46 in wide—fits tight automotive enclosures, fused blocks, and instrument panels without sacrificing protection. The device is designed for common automotive loads and accessories, ensuring reliable protection where space and weight matter. Compatibility with CBC-B family devices helps standardize protection across multiple circuits, reducing inventory complexity for technicians and procurement teams. Industry professionals appreciate the predictable 20 A rating for typical automotive circuits, while the 1.5 kAIC interrupt capacity offers headroom for short, high-current faults, improving overall system resilience.
